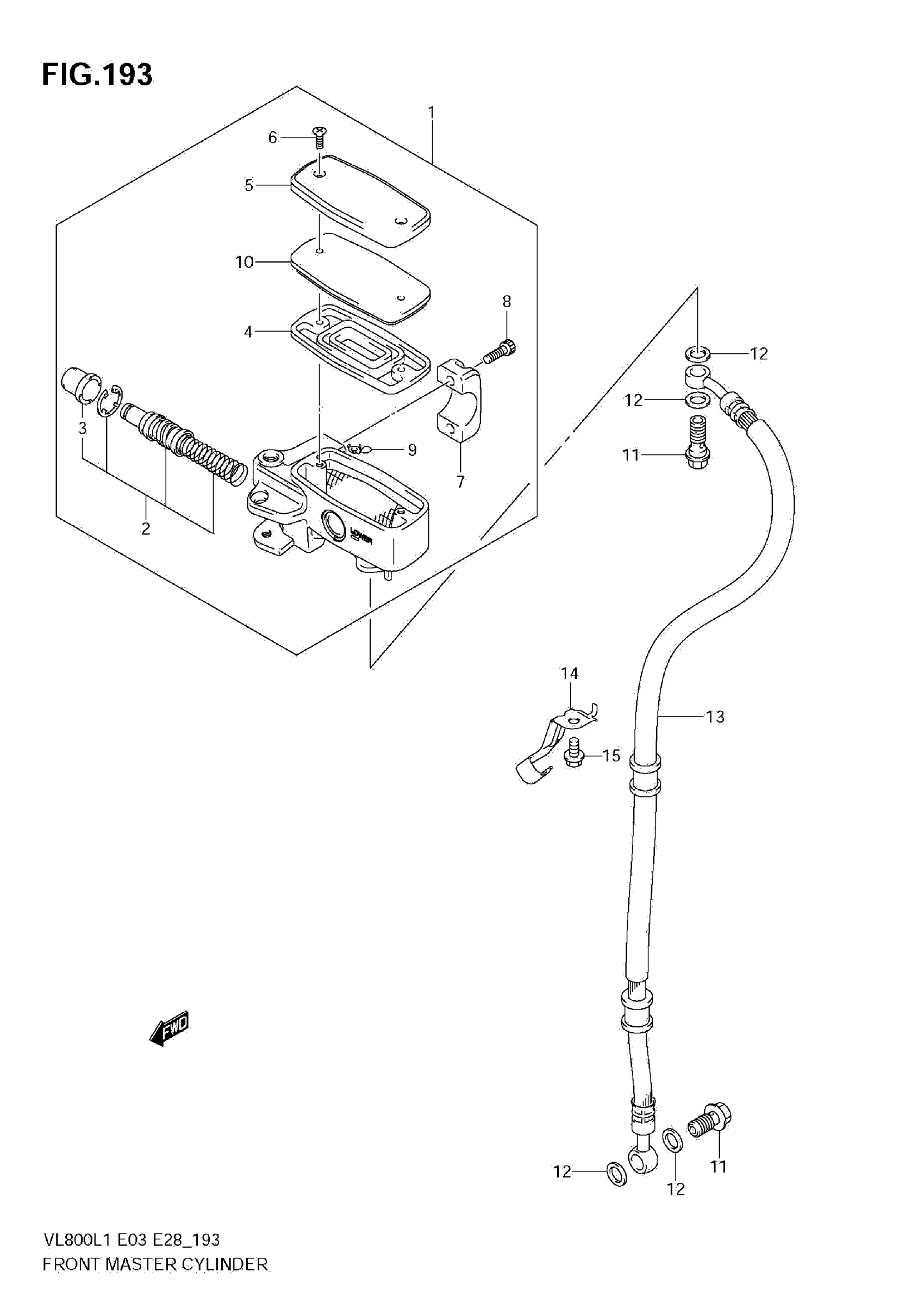

Find the part on the Front Master Cylinder diagram for your 2011 Suzuki VL800CL1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2011 Suzuki VL800CL1 Front Master Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CYLINDER ASSY, FRONT MASTER

59600-10F71

1
Out of stock

2

PISTON/CUP SET

59600-04810

1
Out of stock

3

BOOT

59666-44300

1
Out of stock

4

DIAPHRAGM

59667-10F00

1

$11.40

In stock

5

CAP

59669-10F10

1
Out of stock

6

SCREW

02122-04127

2
Out of stock

7

HOLDER

59671-10F00

1

$55.50

In stock

8

BOLT

07130-06207

2

$3.00

In stock

9

PROTECTOR

59664-32F00

1
Out of stock

10

PLATE

57437-10F00

1

$23.73

In stock

11

BOLT, LOWER

09360-10062

2
Out of stock

12

WASHER (10X15X1.5)

09161-10009

4
Out of stock

13

HOSE,FRONT BRAKE This part replaces 59480-41F10.

59480-41F11

1
Out of stock

14

CLAMP, BRAKE HOSE UPPER

59266-43H00

1
Out of stock

15

BOLT

01550-0612B

1
Out of stock
