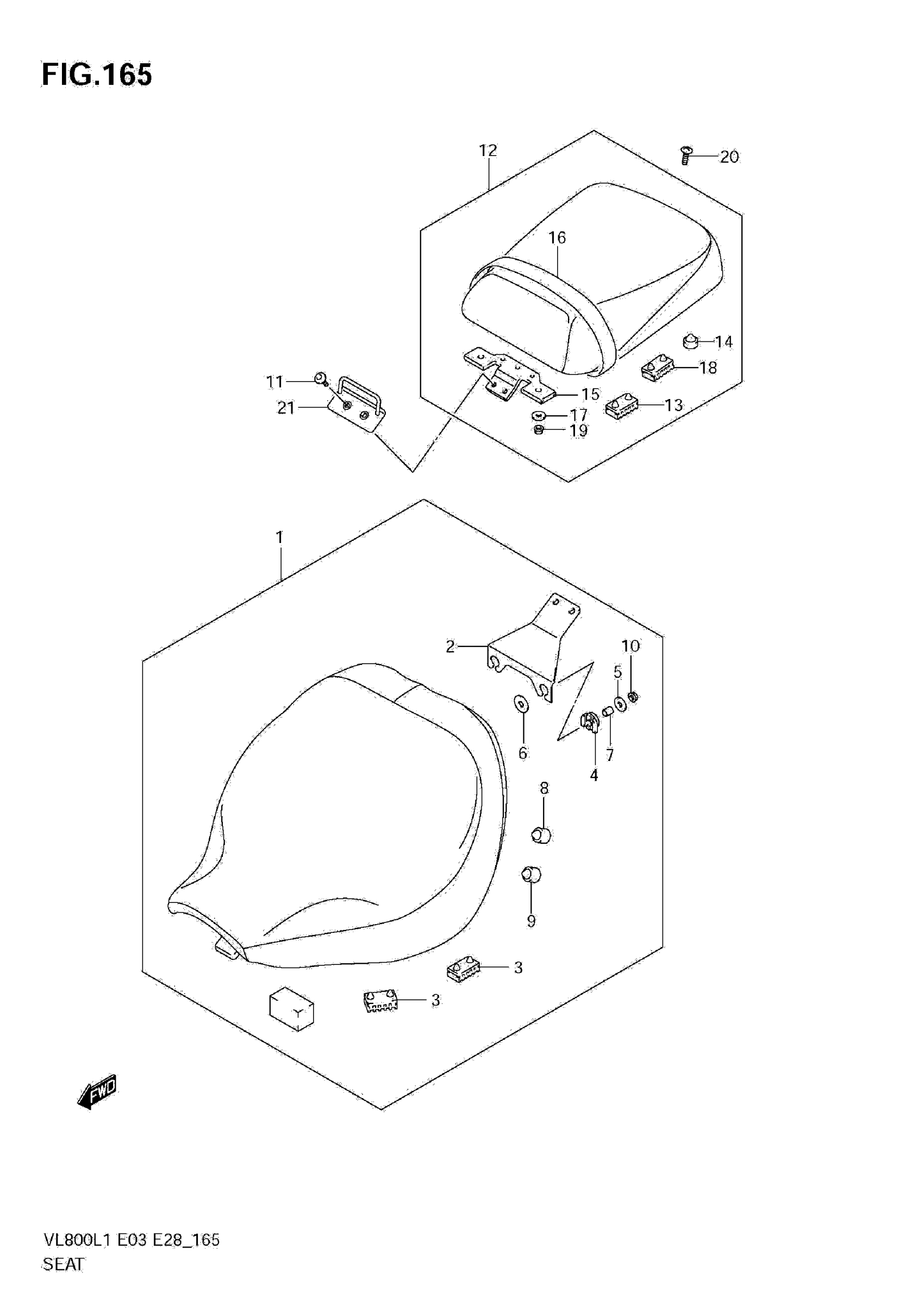

Find the part on the Seat diagram for your 2011 Suzuki VL800CL1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2011 Suzuki VL800CL1 Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SEAT ASSY (BLACK) This part replaces 45100-43H00-V4Y.

45100-43H02-V4Y

1
Out of stock

2

BRACKET, SEAT

45115-43H00

1
Out of stock

3

CUSHION

45149-31300

4
Out of stock

4

CUSHION

45215-43H00

2
Out of stock

5

.WASHER (6.5X20X1.6)

09160-06088

2

$1.80

In stock

6

WASHER (6.5X24X1.6)

09160-06501

2
Out of stock

7

SPACER (6.5X10X11)

09180-06288

2
Out of stock

8

CUSHION (11.5X22X20)

09321-10002

2
Out of stock

9

CUSHION

09321-10033

2
Out of stock

10

NUT

08316-1006A

2
Out of stock

11

BOLT (8X16)

09106-06064

2
Out of stock

12

SEAT ASSY,PILLION (BLACK) This part replaces 45300-43H00-V4Y.

45300-43H01-V4Y

1
Out of stock

13

CUSHION, PILLION SEAT NO.2

45149-31300

2
Out of stock

14

CUSHION

45147-12FA0

2
Out of stock

15

BRACKET, PILLION SEAT

45330-43H00

1
Out of stock

16

.BAND,SEAT PILLION (BLACK) This part replaces 45380-43H00-V4Y.

45380-43H01-V4Y

1
Out of stock

17

.WASHER (6.5X20X1.6)

09160-06088

2

$1.80

In stock

18

CUSHION

09321-10002

2
Out of stock

19

NUT

08316-1006A

2
Out of stock

20

BOLT (8X16)

09106-08140

1
Out of stock

21

BRACKET, SEAT SUPPORT

45210-43H00

1
Out of stock
