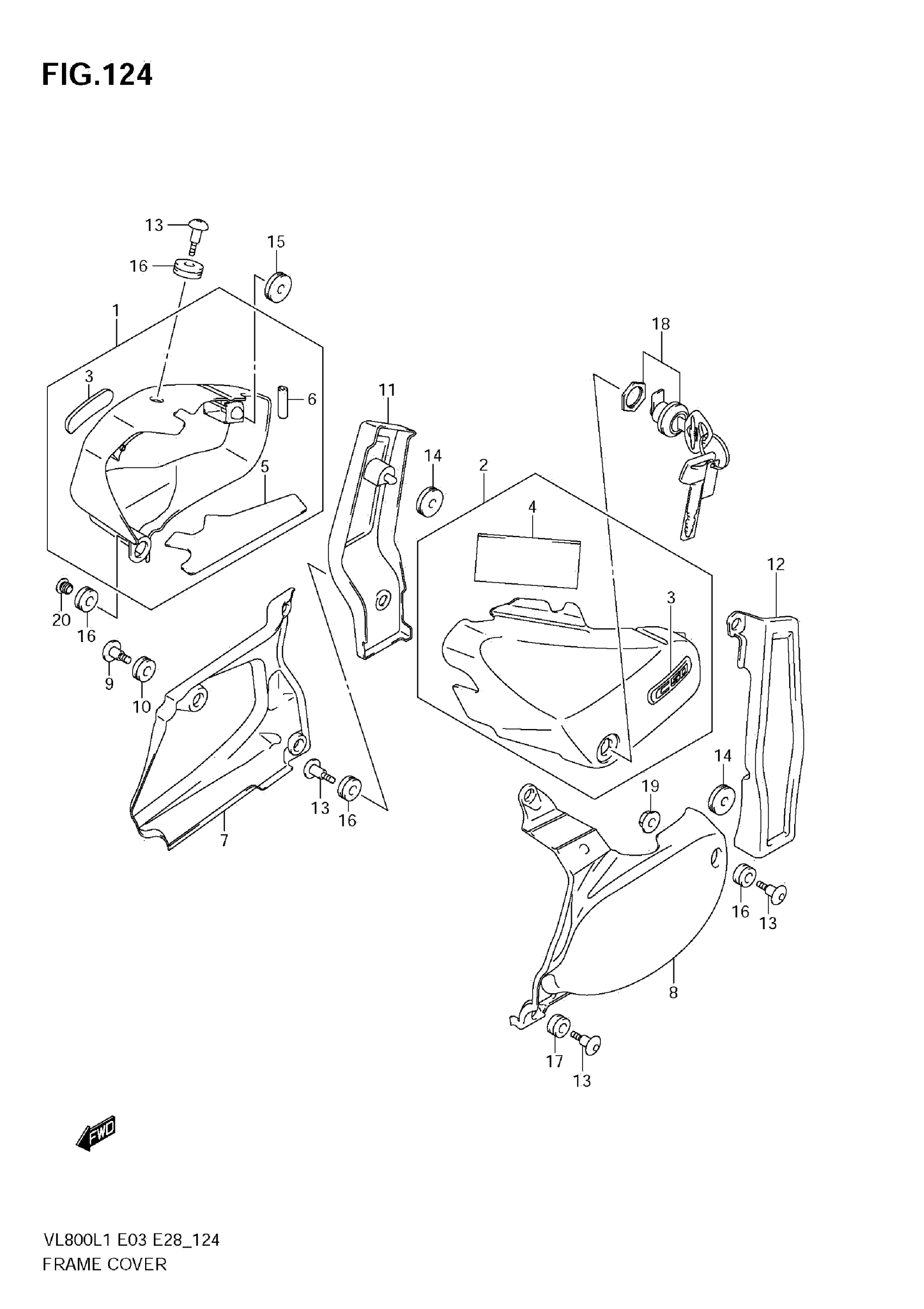

Suzuki VL800CL1 (2011) FRAME COVER (VL800 E3) Diagram

#

Description
Price

1

COVER, FRAME RH (BLACK) This part replaces 47110-41F60-YVB.

47110-41F61-YVB

Unavailable

2

COVER, FRAME LH (BLACK) This part replaces 47210-41FL0-YVB.

47210-41FL1-YVB

$259.58

3

EMBLEM, "C50" This part replaces 68131-41F40.

68131-41F41

$37.73

4

CUSHION, LH

47217-41F00

$13.53

5

SHIELD, FRAME COVER RH

47166-41F00

$20.13

6

MOLDING, RH

94631-35F00

$8.35

7

COVER, SIDE LOWER RH

47130-41F00

Unavailable

8

COVER, SIDE LOWER LH

47231-41F00

$429.23

9

SCREW

47133-43H00

$7.98

10

CUSHION (8.5X20X8) This part replaces 09320-08021.

09320-08510

$1.70

11

COVER, SIDE REAR RH (BLACK)

47141-41F01-019

$155.65

12

COVER, SIDE REAR LH (BLACK)

47241-41F00-019

$154.90

13

SCREW (6X20)

09139-06126

$3.65

14

CUSHION

09320-08018

$2.80

15

CUSHION BOX REAR

09320-08028

$2.80

16

CUSHION

09320-09501

$2.06

17

CUSHION This part replaces 09320-09045.

09320-09062

$2.14

18

LOCK SET,COVER This part replaces 95700-07860.

95700-07861

$69.50

19

NUT, SIDE LOWER LH

08316-1006B

$2.50

20

CAP This part replaces 09250-09001.

09250-09008

$1.56
