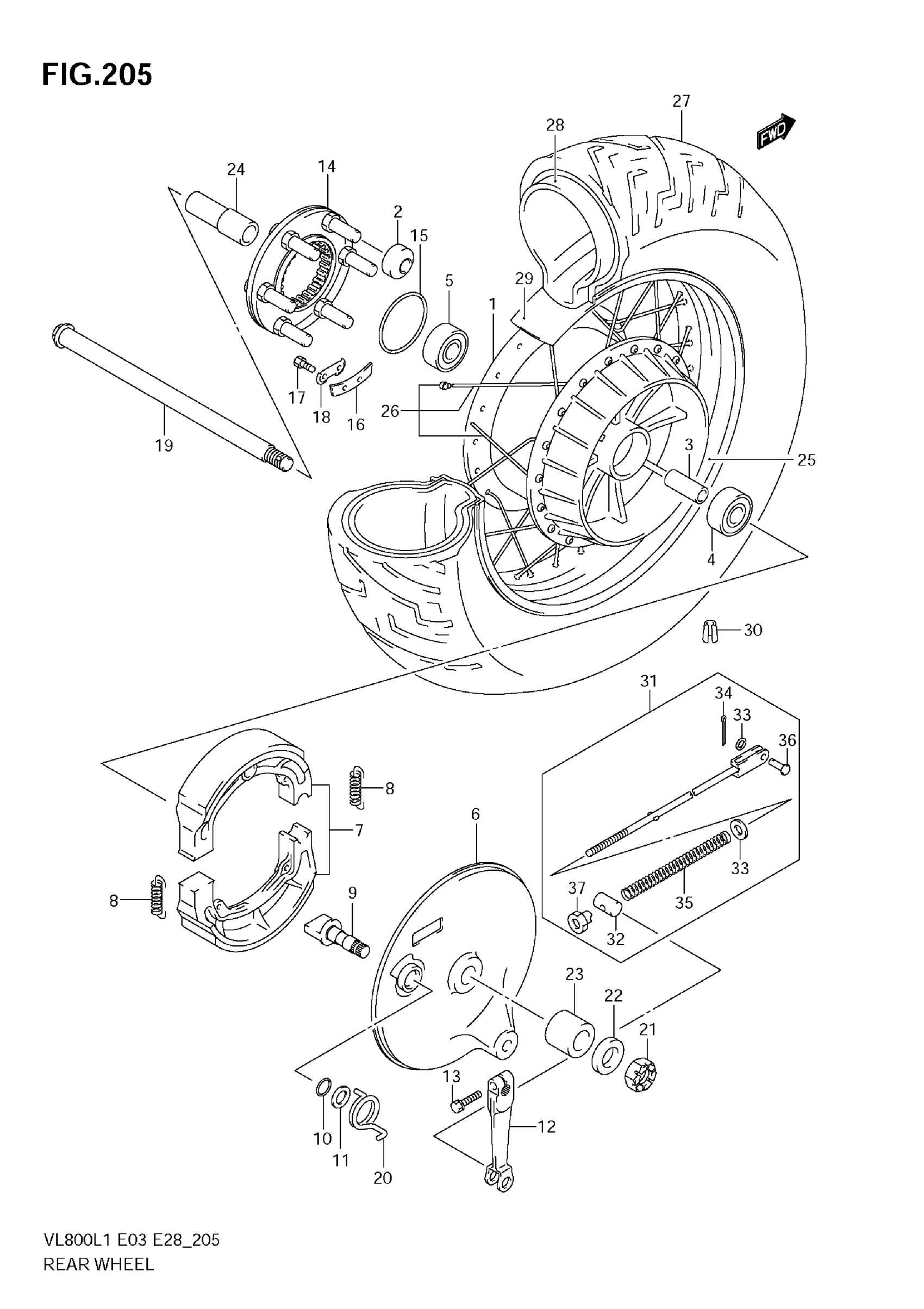

Suzuki VL800CL1 (2011) REAR WHEEL (VL800 E28) Diagram

#

Description
Price

1

HUB, REAR WHEEL

64110-41F20

Unavailable

2

BUSHING (12X41X34)

09319-12019

$13.11

3

SPACER, RR HUB (17.5X25X80)

09180-17092

$25.33

4

BEARING This part replaces 08123-63037.

08123-6303B

$15.56

5

BEARING, LH

08143-63037

$22.58

6

PANEL, REAR BRAKE ANCHOR

64210-38A70-20H

$303.87

7

SHOE SET, BRAKE

64400-38820

$48.36

8

SPRING, SHOE

55420-30000

$4.48

9

CAM, BRAKE

64441-38A20

$30.75

10

O RING (ID:14.8,D:2.40)

09280-15003

$1.76

11

WASHER (15.5X24X1.6)

09160-15048

$2.56

12

LEVER, BRAKE CAM

64451-38A01

$57.67

13

BOLT

01570-06257

$3.03

14

JOINT, HUB DRIVEN

64680-45113

$275.40

15

O RING (ID:65,D:2.10)

09280-65003

$3.72

16

WASHER, THRUST

64677-45110

$2.92

17

BOLT (6X16)

09119-06049

$1.56

18

WASHER

09169-06030

$3.15

19

AXLE, REAR (L:302)

64711-19F00

$84.32

20

SPRING, CAM

09448-33006

$9.23

21

NUT

08319-2116A

$9.00

22

WASHER (17X30X3.2)

09160-17050

$2.45

23

SPACER, RH

64741-41F00

$22.75

24

SPACER, LH

64772-34201

$23.07

25

RIM, WHEEL, 15M/CXMT4.00 FE

65311-41F00

$360.90

26

SPOKE SET, REAR WHEEL

65320-41F00

$127.16

27

TIRE (170/80-15M/C 77H) This part replaces 65100-41F00.

65100-41F01

$230.03

28

TUBE ASSY,WHEEL INNER This part replaces 65200-41F00.

65200-41F01

$56.70

29

PROTECTOR, WHEEL INNER TUBE This part replaces 65261-41F00.

65261-41F10

$7.58

30

BALANCER WHEEL (15G)

55411-26G00

$7.73

30

BALANCER WHEEL (30G)

55413-41F00

$7.50

31

ROD ASSY, REAR BRAKE

43300-41F00

$27.95

32

PIN, REAR BRAKE ROD

09209-13018

$3.42

33

WASHER

08322-0106B

$2.26

34

PIN, COTTER

04111-2015A

$1.49

35

SPRING

09440-09004

$2.20

36

PIN

09200-06013

$2.00

37

NUT

09150-06010

$3.10
