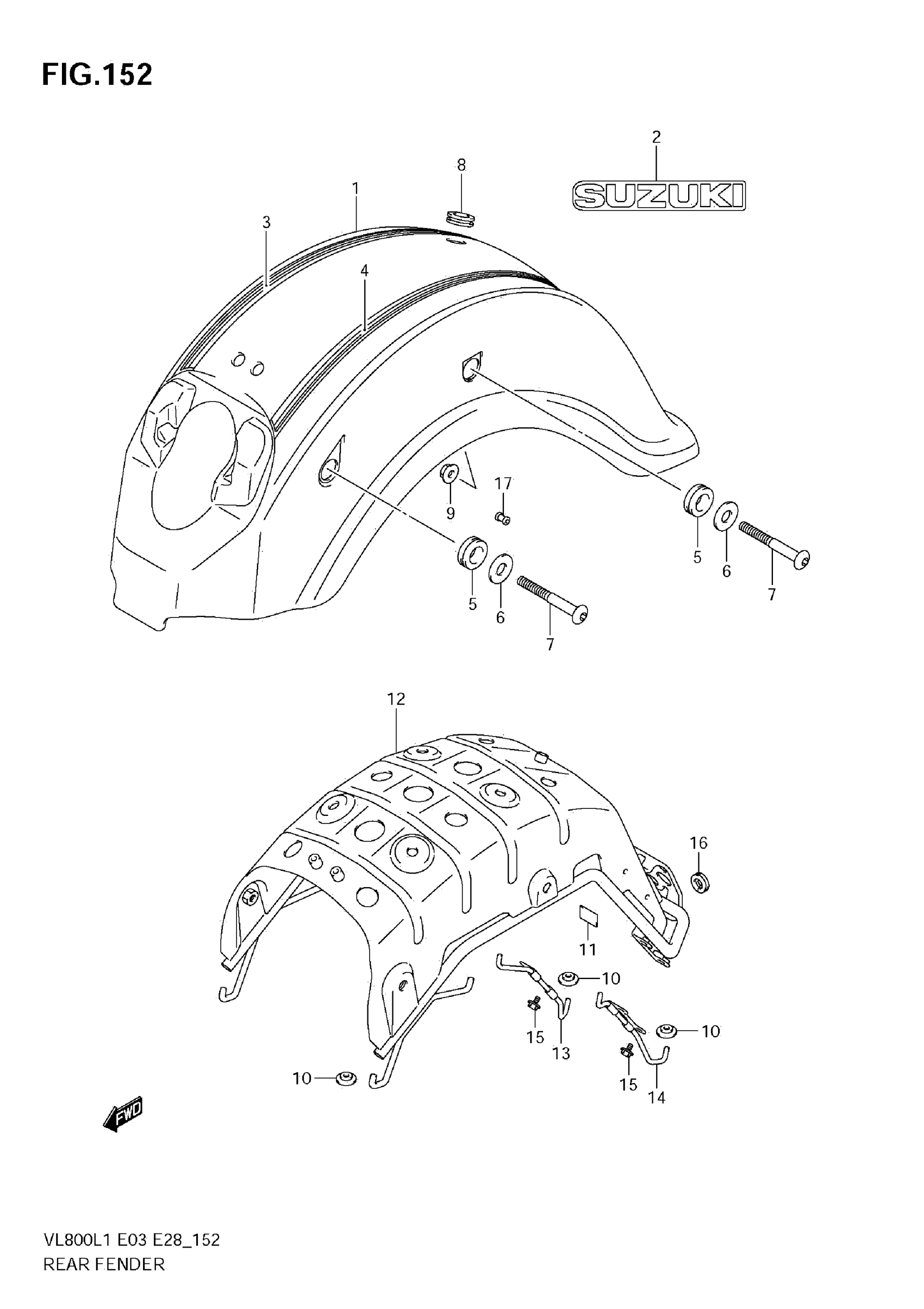

Suzuki VL800CL1 (2011) REAR FENDER (VL800T E28) Diagram

#

Description
Price

1

FENDER, REAR | FOR JEY

63110-43H20-JEY

Unavailable

1

FENDER, REAR | FOR JEZ

63110-43H20-JEZ

Unavailable

2

.EMBLEM,"SUZUKI" (SILVER) This part replaces 68271-34A00-YES.

68271-34A01-YES

$6.85

3

TAPE SET, RH | FOR JEY

68170-43H00-JFK

Unavailable

3

TAPE SET, RH | FOR JEZ

68170-43H00-JFL

Unavailable

4

TAPE SET, LH | FOR JEY

68710-43H00-JFK

Unavailable

4

TAPE SET, LH | FOR JEZ

68710-43H00-JFL

Unavailable

5

CUSHION

47191-24F00

$5.17

6

WASHER (15.5X26X2.3)

09160-15002

$1.91

7

BOLT

63161-41F00

$9.40

8

CUSHION, PILLION SEAT

09320-15008

$3.89

9

NUT

08316-1008B

$2.66

10

CUSHION, REAR

09320-06026

$4.10

11

CUSHION,FR FEND This part replaces 53145-17C11.

53145-17C12

$5.12

12

PLATE, REAR FENDER

63130-43H00

$421.08

13

BRACKET, LOWER RH

63150-43H00

$40.98

14

BRACKET, LOWER LH

63160-43H00

$40.98

15

BOLT

01550-0610B

$2.42

16

GROMMET, MUDGUARD

09308-10017

$5.20

17

CUSHION, GRIP

09250-07004

$3.42
