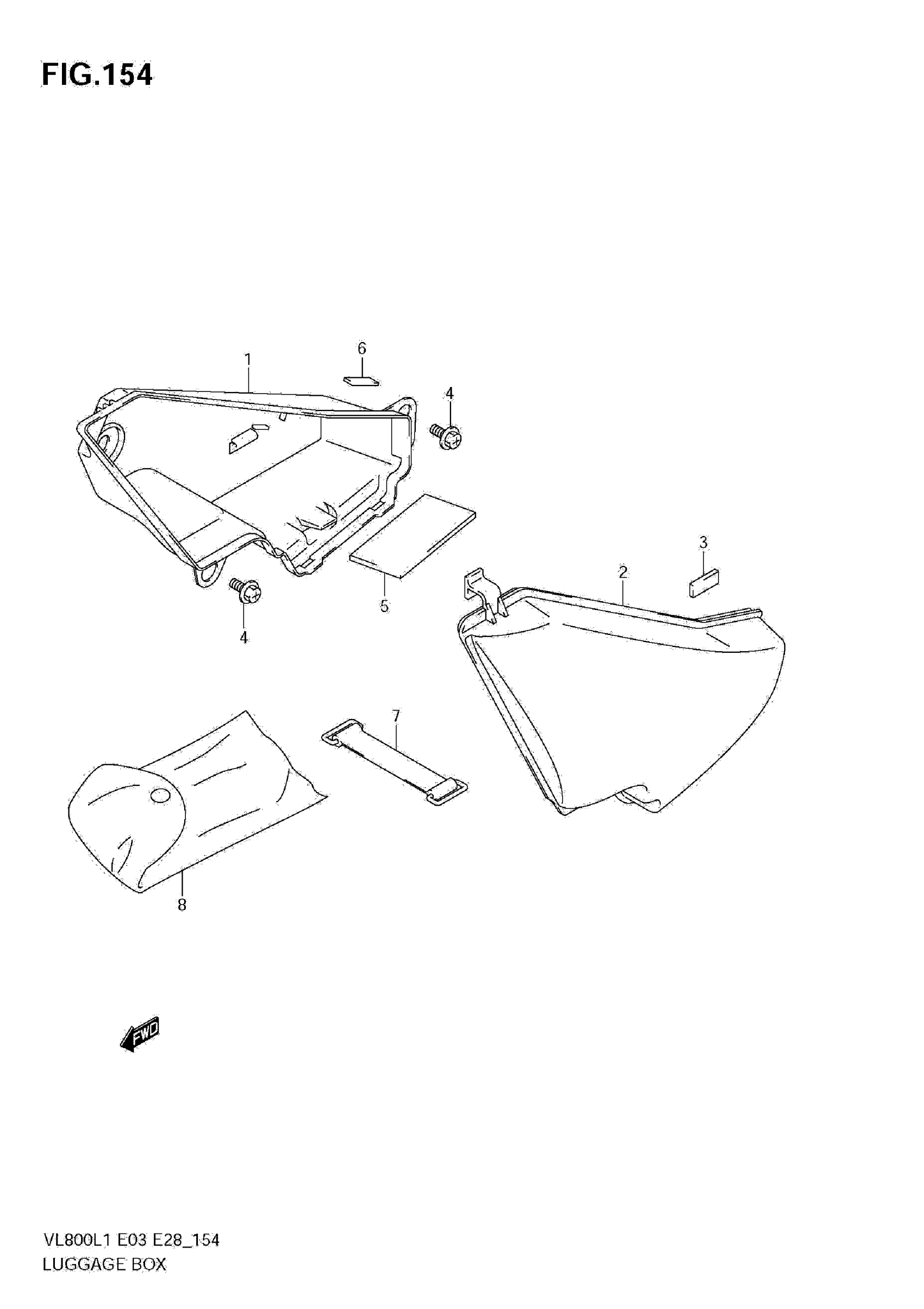

Suzuki VL800CL1 (2011) LUGGAGE BOX Diagram

#

Description

Price

1

BODY, LUGGAGE BOX

92211-41F00

$99.93

2

LID,LUGGAGE BOX

92212-41F01

$65.10

3

CUSHION, NO.2

92213-41F00

$4.82

4

BOLT (6X12) This part replaces 63161-43E00.

09111-06107

$2.66

5

CUSHION, BOX

33652-35F00

$5.18

6

CUSHION, BOX UPPER

48128-14FA0

$7.30

7

O RING(D:3.5,ID This part replaces 09280-61002.

09280-61004

$2.50

8

TOOL ASSY This part replaces 09800-21055.

09800-21102

$18.51
