Description

Price

1

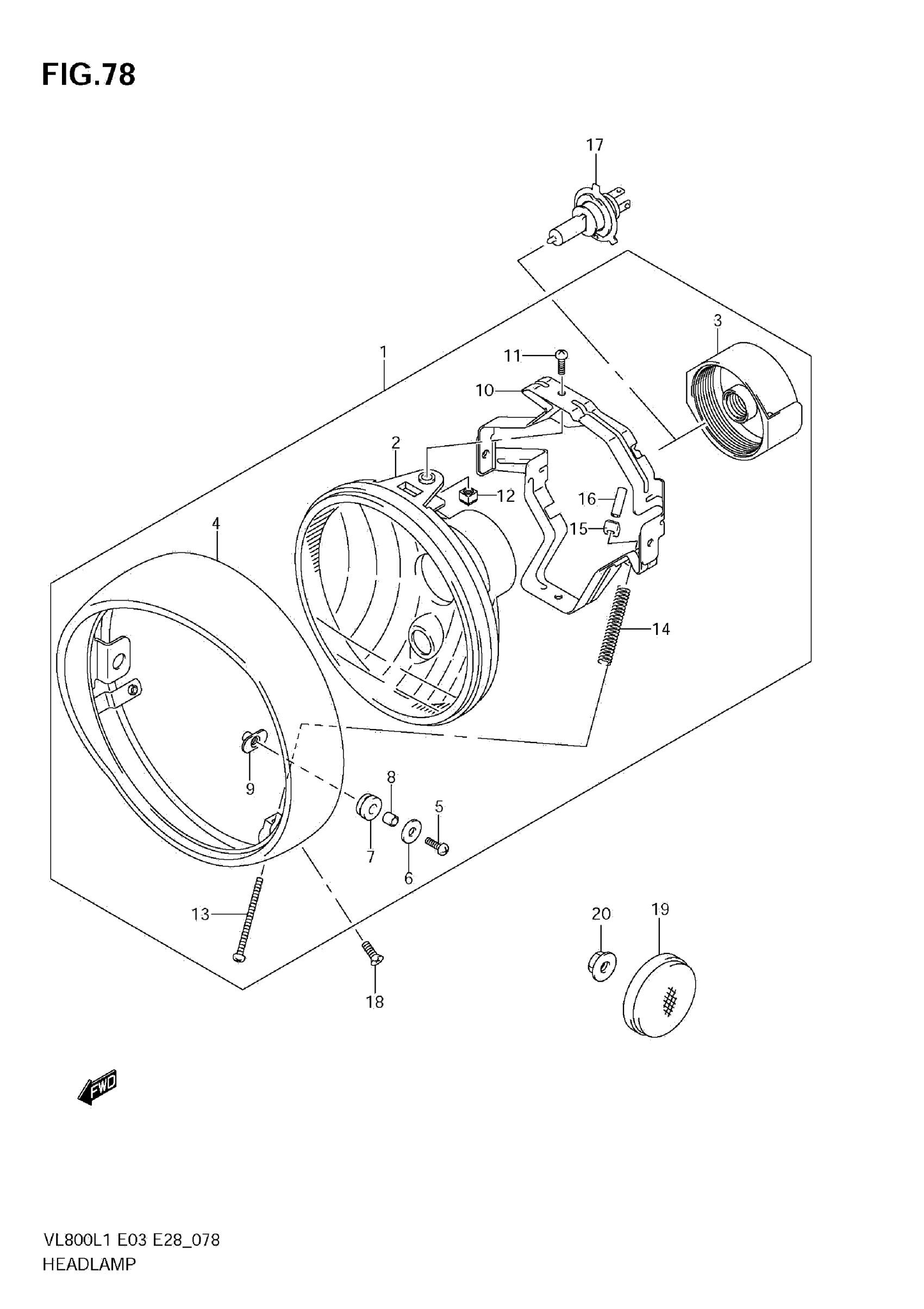

HEADLAMP ASSY

35100-10FH0-999

$497.50

2

UNIT

35121-10FB0

$201.52

3

.COVER,SOCKET

35174-19F00

$30.22

4

RIM

35111-10FG0

$236.72

5

SCREW

02122-0520A

$2.27

6

WASHER (5.5X18X1.0)

09160-05045

$1.93

7

CUSHION

35139-38A60

$4.10

8

SPACER

35133-45230

$3.30

9

NUT

35155-10FA0

$5.98

10

BRACKET

35130-10FD0

Unavailable

11

.SCREW (5X16)

35181-19F00

$3.25

12

NUT

35135-45900

$3.25

13

SCREW, ADJUSTER

35151-10FA0

$11.37

14

SPRING, ADJUSTER

35154-10FA0

$5.98

15

.NUT

35152-45600

$3.47

16

COVER

35158-10FA0

Unavailable

17

BULB (12V,60/55W) This part replaces 09471-12185.

09471-12060

$25.15

18

SCREW, HEADLAMP (5X8)

09126-05007
