Description

Price

1

HUB, FRONT WHEEL

54111-41F20

Unavailable

2

BEARING This part replaces 08133-62037.

08133-6203B

$17.61

3

BEARING, FRONT HUB RH

08143-62037

$18.47

4

SPACER, BEARING

09180-17080

$29.57

5

AXLE, FRONT

54711-41F00

$110.67

6

SPACER, AXLE LH

54740-32C00

$18.43

7

DISC, FRONT BRAKE RH

59211-41F00

$361.30

8

BOLT,DISK

59421-03A20

$4.82

9

TIRE (130/90-16M/C) This part replaces 55100-41F00.

55100-41F01

$164.52

10

TUBE ASSY,WHEEL INNER This part replaces 55200-41F00.

55200-41F01

$44.42

11

PROTECTOR, WHEEL INNER TUBE This part replaces 55261-41F00.

55261-41F10

$6.63

12

RIM, FRONT WHEEL (16XMT3.00)

55311-41F01

$326.27

13

SPOKE SET, FRONT WHEEL

55320-41F00

$206.32

14

BALANCER WHEEL (15G)

55411-26G00

$7.73

14

BALANCER WHEEL (30G)

55413-41F00

$7.50

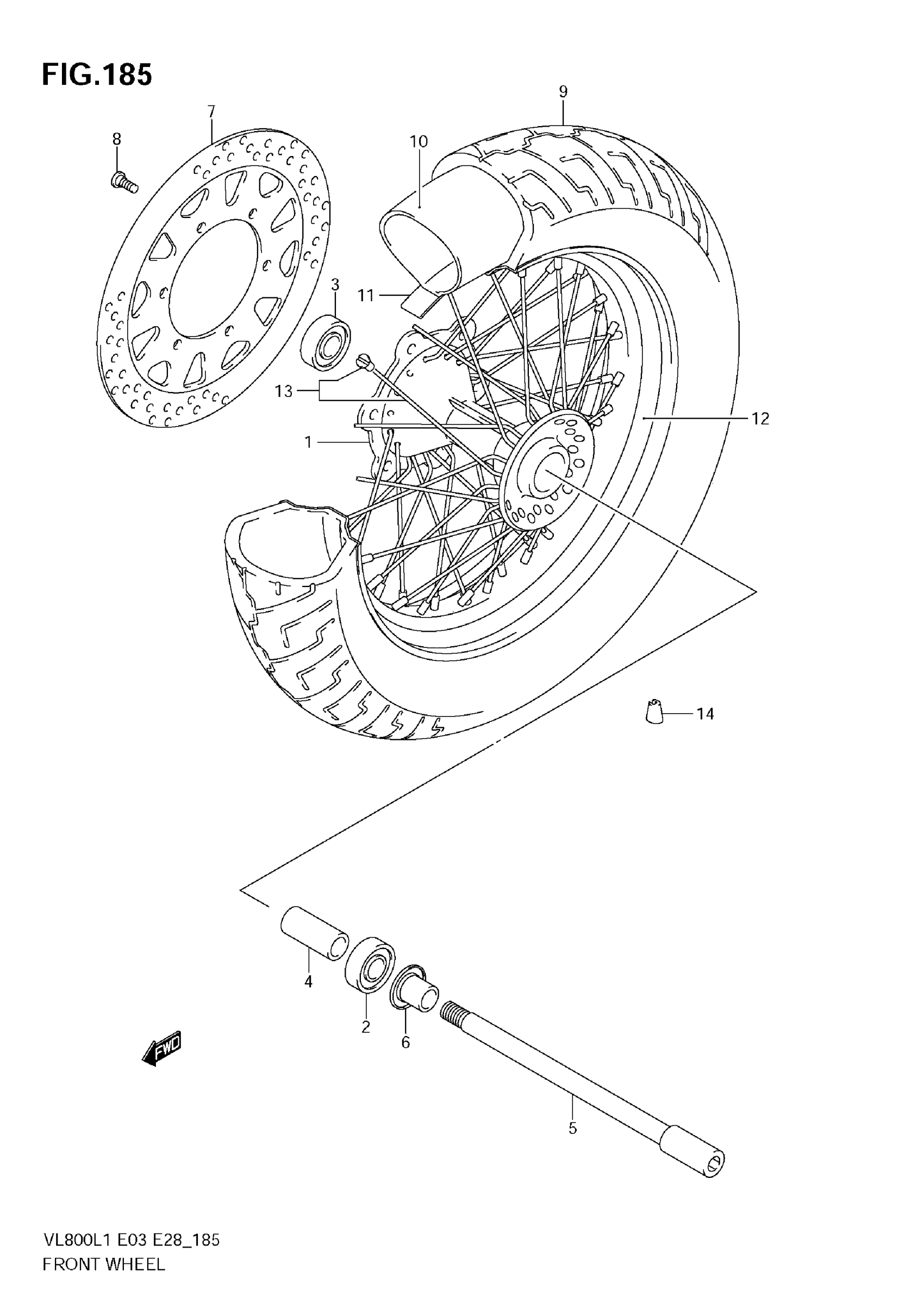

Suzuki VL800CL1 (2011) FRONT WHEEL (VL800 E33) Diagram
