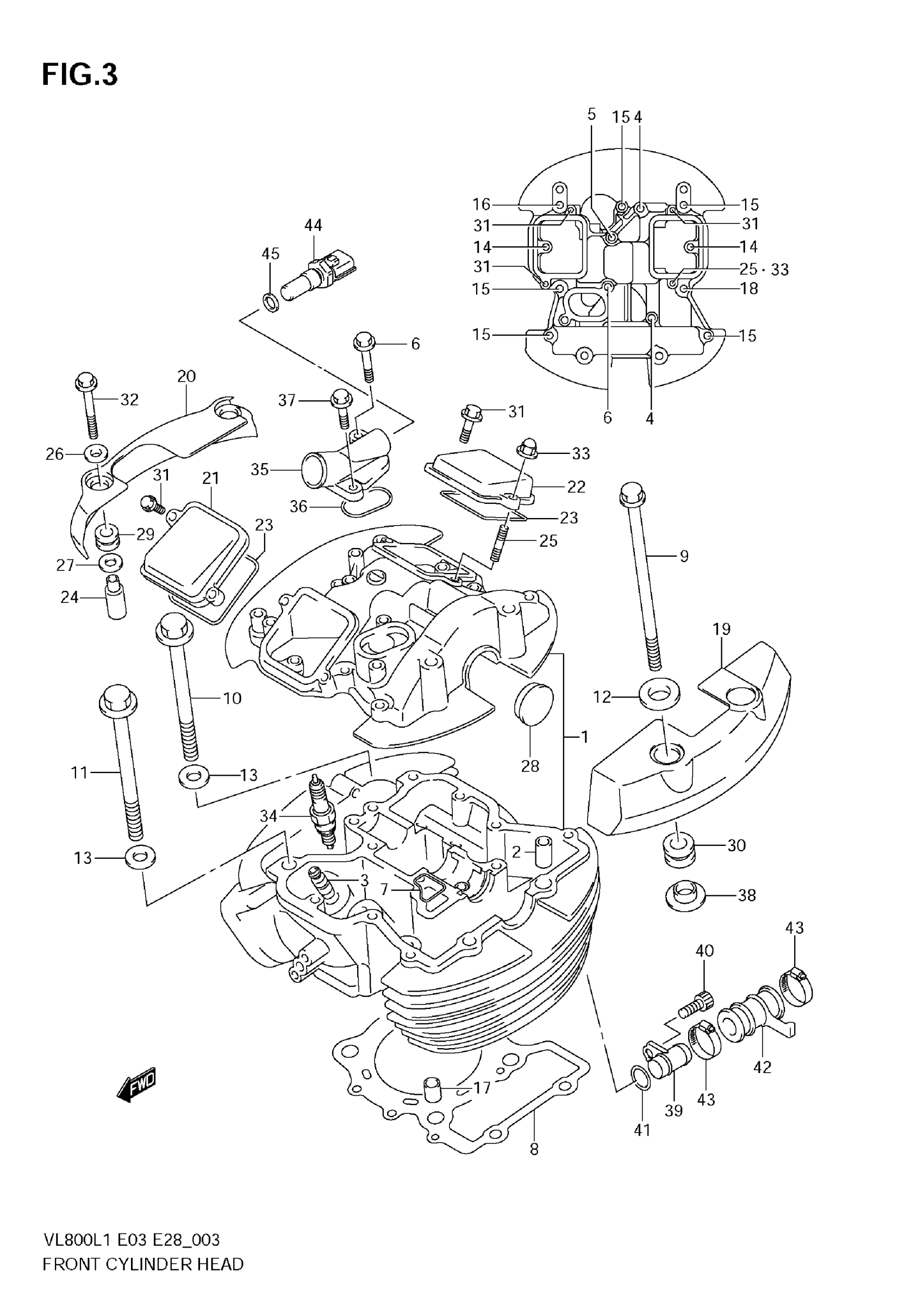

Suzuki VL800CL1 (2011) FRONT CYLINDER HEAD (VL800 E28) Diagram

#

Description
Price

1

HEAD ASSY, CYLINDER FRONT

11101-39G60

Unavailable

2

PIN (11X14)

09206-11004

$5.36

3

GUIDE, VALVE (OS 0.3) | OPT

11115-41F70

$40.73

4

BOLT (6X50)

09103-06304

$2.53

5

BOLT (6X55)

09103-06305

Unavailable

6

BOLT (6X80)

07130-0680B

$4.68

7

GASKET, CYLINDER HEAD COVER

11123-38A00

$3.77

8

GASKET, CYLINDER HEAD FRONT

11141-41F00

$38.66

9

BOLT (L:250)

09103-08370

$16.20

10

BOLT (10X155)

09103-10133

$9.48

11

BOLT (10X165)

09103-10134

$9.48

12

WASHER (8.5X24X1.6)

09160-08130

$2.03

13

WASHER (10.5X22X2.3)

09160-10039

$2.26

14

BOLT (L:25)

01547-0625A

$2.01

15

BOLT

01547-0630A

$2.32

16

BOLT (L:40)

01547-0640A

$2.32

17

KNOCK PIN

04211-13189

$2.19

18

BOLT (L:30)

07120-0630B

$3.49

19

CAP, CYLINDER HEAD COVER FL

11171-41FA0

Unavailable

20

CAP, CYLINDER HEAD COVER FR

11172-41F00

Unavailable

21

CAP, INSPECTION INTAKE

11175-38A11

$23.07

22

CAP, INSPECTION EXHAUST

11176-38A11

$23.07

23

GASKET, INSPECTION CAP

11177-38A00

$4.48

24

SPACER, HEAD COVER CAP

11179-10F10

$12.17

25

BOLT, INSPECTION CAP STUD

09108-06102

$4.08

26

WASHER, UPPER (6.5X18X1.6)

09160-06084

$1.78

27

WASHER, LOWER (9.5X20X1)

09160-09016

$2.30

28

PLUG, CYLINDER HEAD

09241-30004

$6.60

29

CUSHION, HEAD COVER CAP

09320-09016

$1.97

30

CUSHION, HEAD COVER BOLT

09320-13015

$2.85

31

BOLT, INSPECTION CAP

01547-0620A

$2.03

32

BOLT, HEAD COVER CAP

01547-06557

$2.32

33

NUT, INSPECTION CAP

09159-06093

Unavailable

34

SPARK PLUG, DPR7EA-9 (NGK)

09482-00354

$3.32

34

SPARK PLUG, DPR9EA-9 (NGK) | OPT

09482-00330

$3.11

34

SPARK PLUG, X27EPR-U9 (ND) | OPT

09482-00331

$5.28

34

SPARK PLUG, DPR8EA-9 (NGK) | OPT

09482-00334

$3.03

34

SPARK PLUG, X24EPR-U9 (ND) | OPT

09482-00335

$5.36

35

UNION, CYLINDER HEAD OUTLET

11181-41F00

$51.32

36

O RING, OUTLET UNION

11182-38A00

$2.81

37

BOLT

07130-0620A

$2.50

38

BUSH, HEAD COVER BOLT

09301-08007

$6.80

39

UNION, CYLINDER HEAD JOINT

17891-41F10

$15.63

40

BOLT, JOINT UNION

07130-0612A

$2.50

41

O RING (D:2.4,ID:15.8)

09280-16005

$2.23

42

HOSE, HEAD JOINT

17854-41F01

$18.33

43

CLAMP, JOINT

09402-28513

$6.88

44

SENSOR, WATER TEMP

13650-57F00

$121.55

45

GASKET

09168-12017

$1.95
