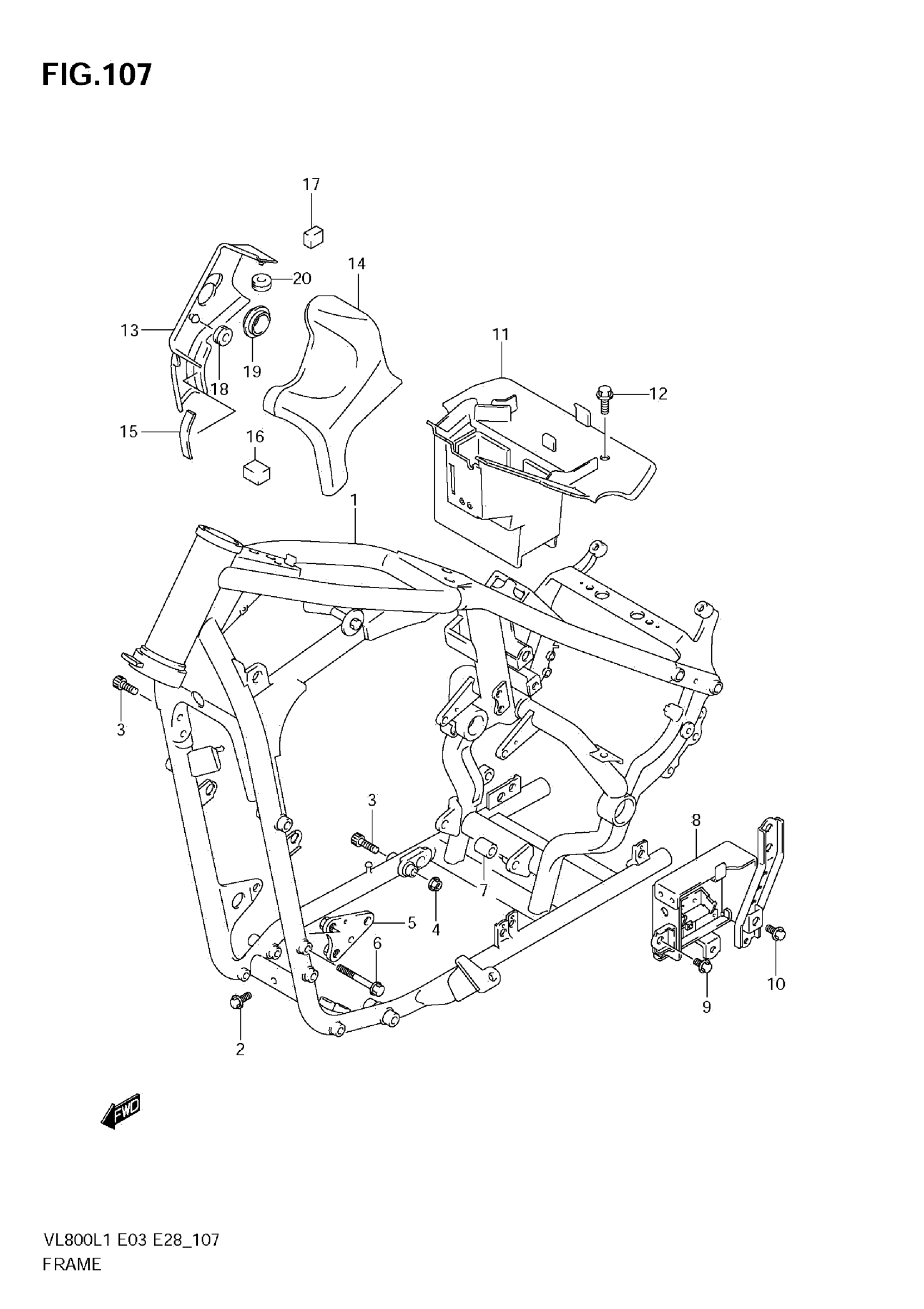

Suzuki VL800CL1 (2011) FRAME Diagram

#

Description
Price

1

FRAME (BLACK) This part replaces 41100-41F60-019.

41100-41F80-019

$3,745.05

2

BOLT, LOWER BRIDGE FRONT

01550-0816B

$2.73

3

BOLT

07130-1035B

$5.18

4

NUT

08319-3110B

$3.87

5

PLATE, ENGINE MOUNT LH

41920-41F00

Unavailable

6

BOLT (8X65)

09112-08013

Unavailable

7

SPACER, LOWER

41941-41F00

Unavailable

8

HOLDER, ELECTRIC PARTS

41540-41F30

Unavailable

9

BOLT, FRONT

01547-0612A

$2.03

10

BOLT (8X16)

01550-0816A

$2.32

11

HOLDER, ELECTRIC PARTS

47410-41F02

Unavailable

12

BOLT (6X16)

09113-06001

$2.73

13

COVER,FRAME HEAD,R (BLACK) This part replaces 47350-41F10-019.

47350-41F30-019

$74.35

14

COVER,FRAME HEAD,L (BLACK) This part replaces 47360-41F12-019.

47360-41F40-019

$70.98

15

CUSHION

53145-40A00

$2.30

16

CUSHION, LH LOWER

53146-05G00

$7.27

17

CUSHION, FRONT

94422-06G00

$5.82

18

CUSHION

09320-08018

$3.04

19

CAP, HEAD COVER RH

47355-41F01

$7.57

20

CUSHION

09320-09501

$2.03
