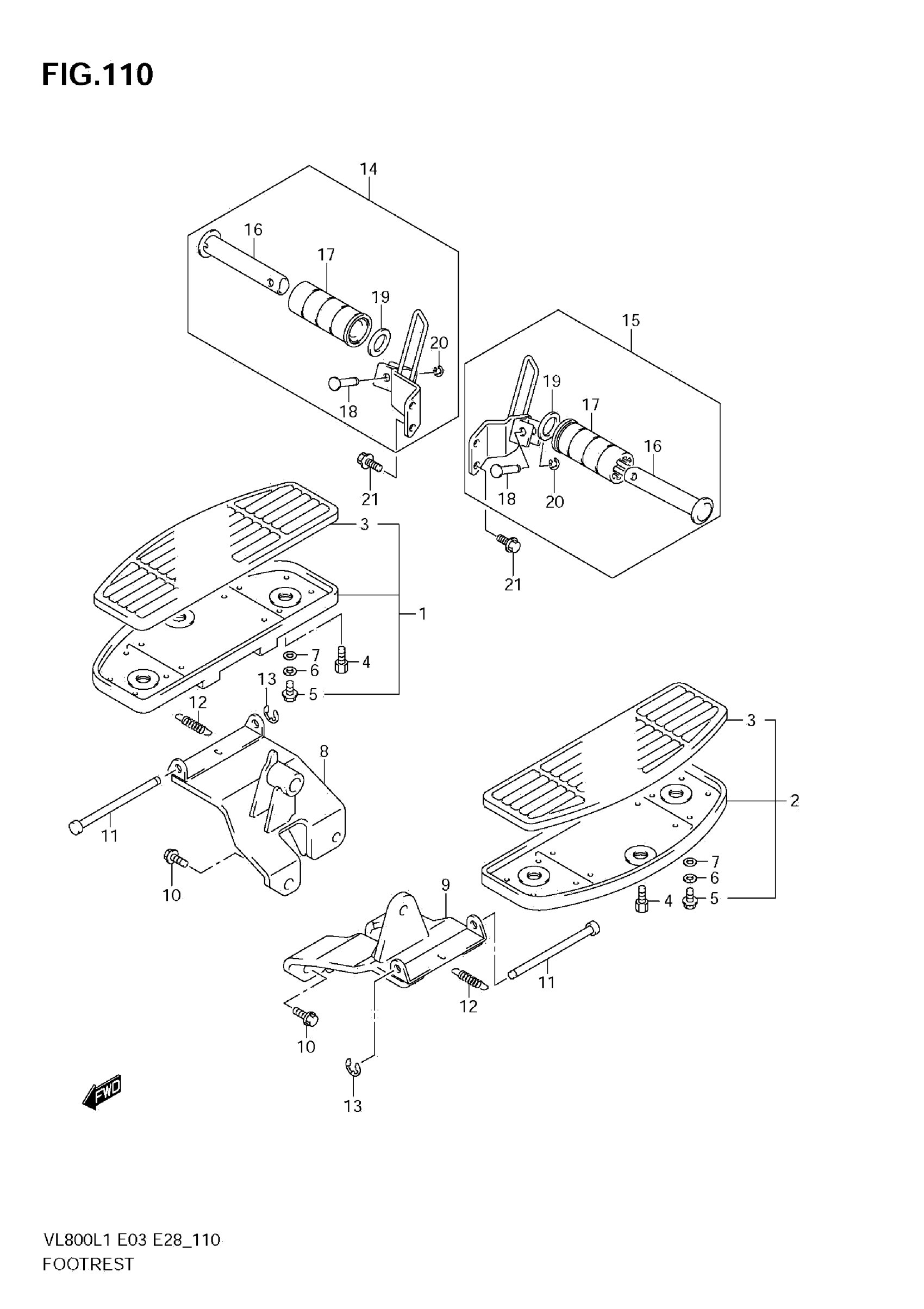

Suzuki VL800CL1 (2011) FOOTREST Diagram

#

Description
Price

1

FOOTREST ASSY,FRONT RH This part replaces 43501-10F11.

43501-10F12

$209.05

2

FOOTREST ASSY,FRONT LH This part replaces 43502-10F11.

43502-10F12

$209.05

3

RUBBER

43550-10F10

Unavailable

4

.BOLT,BANK SENSOR

43576-07D01

$8.85

5

BOLT

01550-0610A

$1.97

6

WASHER (6.5X22X1.6)

09160-06158

$2.30

7

.CUSHION This part replaces 09320-10036.

09320-10077

$2.23

8

BRACKET, FRONT FOOTREST RH

43510-41F30

$96.75

9

BRACKET, FRONT FOOTREST LH

43520-41F30

$100.02

10

BOLT

01580-1030B

$5.18

11

PIN,FRONT FOOTREST

43539-10F00

$8.13

12

SPRING

09443-11033

$4.50

13

E RING

08332-1106A

$1.49

14

FOOTREST ASSY, PILLION RH

43600-41F50

$102.17

15

FOOTREST ASSY, PILLION LH

43700-41F50

$102.17

16

BAR

43610-39G00

$22.52

17

RUBBER

43612-39G00

$10.02

18

PIN

43636-25D00

$10.65

19

WASHER (19.5X32X2)

09160-19024

$2.65

20

E-RING

08332-1104B

$1.78

21

BOLT, BRACKET (8X16)

09103-08412

$3.03
