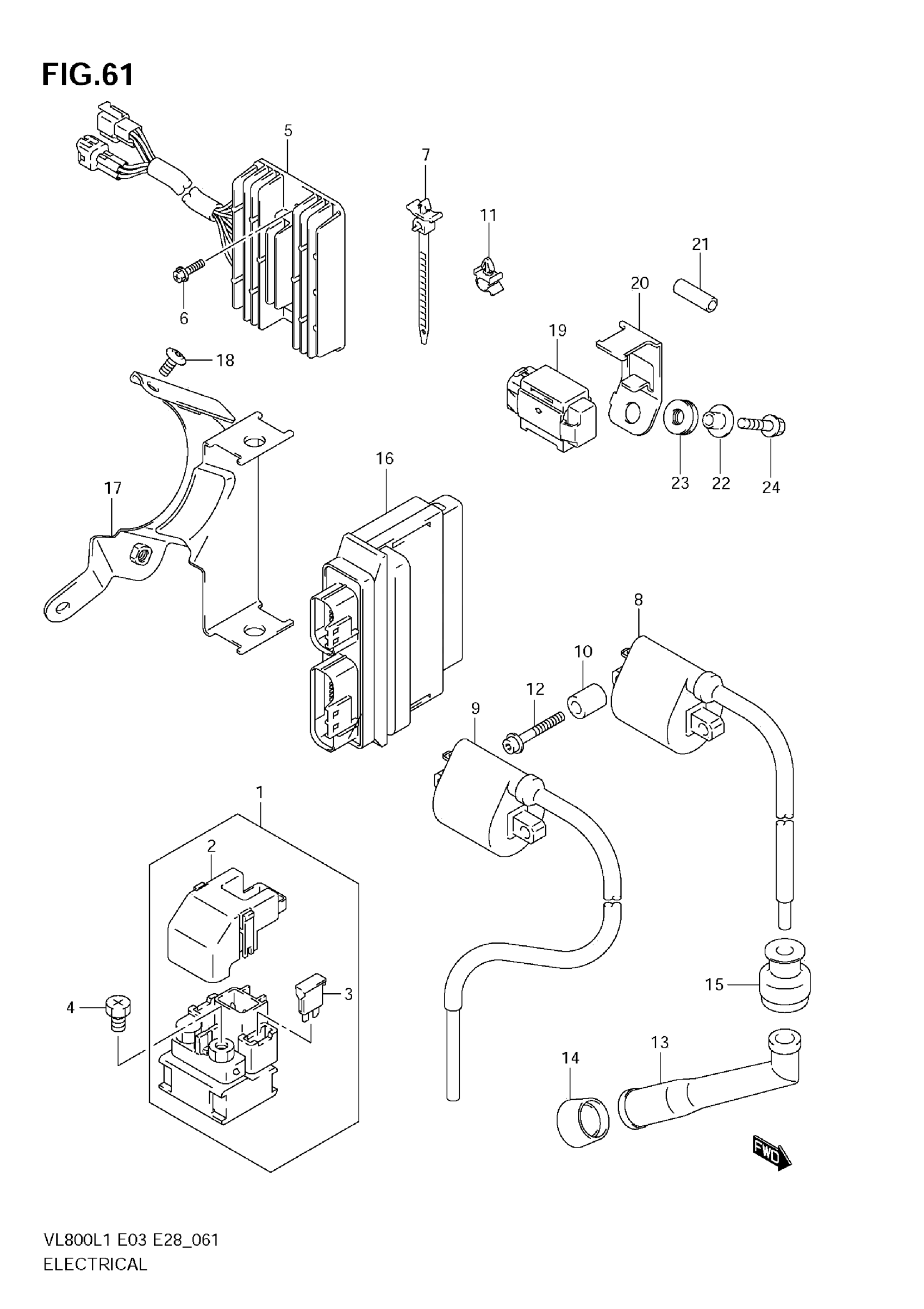

Suzuki VL800CL1 (2011) ELECTRICAL (VL800 E28) Diagram

#

Description
Price

1

RELAY ASSY,STARTING MOTOR This part replaces 31800-21E20.

31800-21E30

$67.32

2

COVER, RELAY ASSY

31861-47E00

$16.15

3

FUSE (30A)

09481-30101

$2.26

4

BOLT (6X8)

09128-06013

$1.49

5

RECTIFIER ASSY This part replaces 32800-41F11.

32800-47H00

$263.17

6

BOLT

02162-0620B

$2.28

7

CLAMP (L:90)

09407-11402

$1.80

8

COIL ASSY, IGNITION This part replaces 33410-17G00.

33410-17G01

$72.92

9

COIL ASSY,IGNITION This part replaces 33420-41F10.

33420-41F11

$86.43

10

SPACER (6.4X10X18)

09180-06195

$3.68

11

CLAMP

09403-07308

$2.07

12

BOLT, IGNITION COIL (5X35)

09106-05033

$3.50

13

CAP, SPARK PLUG

33510-11410

$25.95

14

SEAL, SPARK PLUG

33541-47D00

$7.83

15

SEAL,HIGH TENSION CORD (SIDE)

33542-38B00

$4.34

16

CONTROL UNIT, FI

32920-39GB0

$1,658.55

17

BRACKET

44880-43H00

Unavailable

18

BOLT (6X12)

09139-06108

Unavailable

19

SENSOR ASSY,FUEL CUT

33960-06G10

$89.92

20

BRACKET, FUEL CUT

33961-41F00

Unavailable

21

HOSE,5X10X600 | CUT AS REQUIRED L:10 This part replaces 09352-50823-600.

44421-13ER0

$10.06

22

SPACER, FUEL CUT

09180-06325

$3.79

23

CUSHION (8X18X5.8) This part replaces 09320-06017.

09320-08516

$2.45

24

BOLT, FUEL CUT

01547-0616A

$2.03
