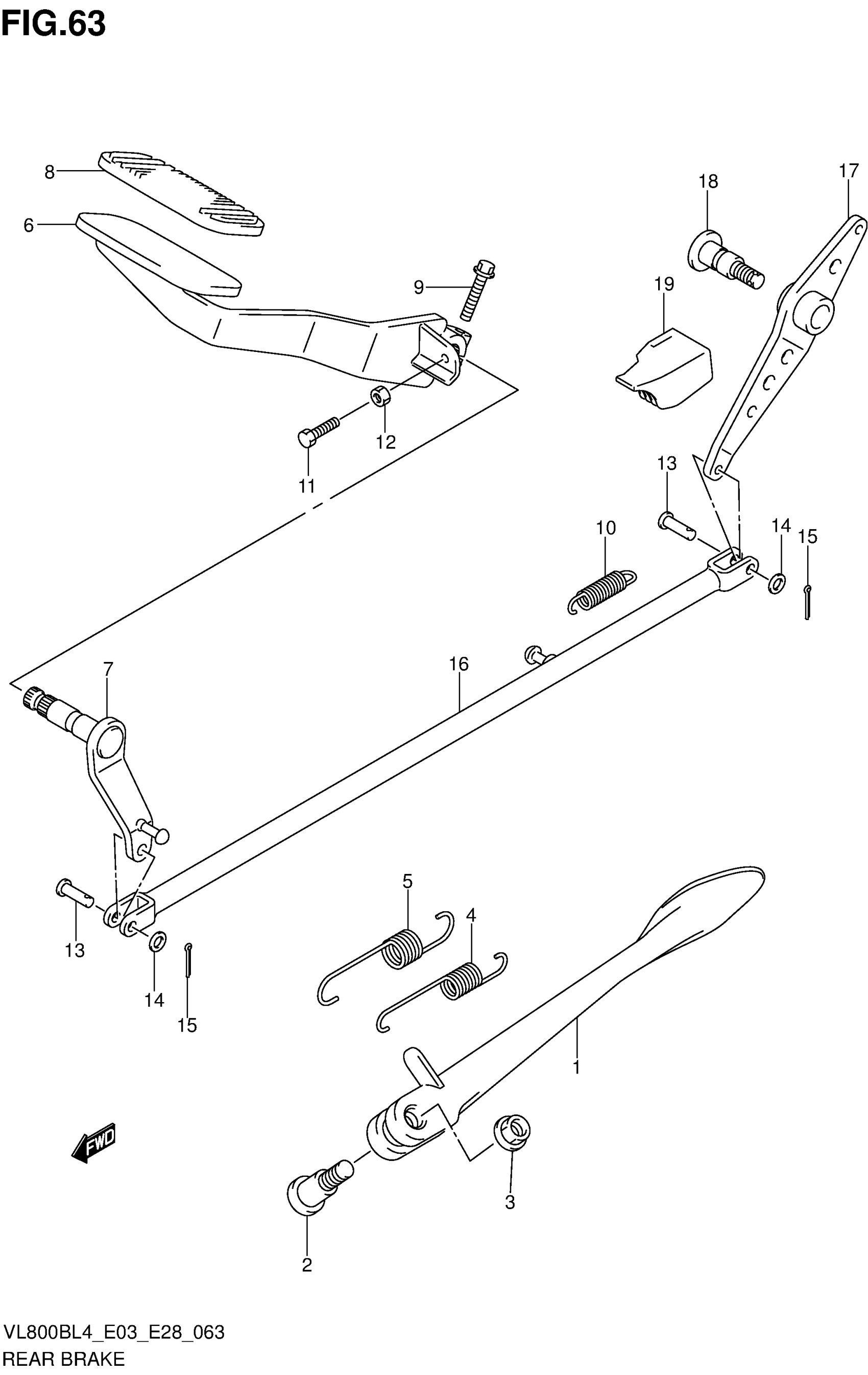

Suzuki VL800BL4 (2014) REAR BRAKE Diagram

#

Description
Price

1

STAND, PROP

42310-41F10

Unavailable

2

BOLT (10X37.5)

09111-10058

$6.31

3

NUT, PROP STAND

42321-03FK0

$4.94

4

SPRING

09443-14066

$5.14

5

SPRING

09443-19012

$5.47

6

PEDAL, BRAKE

43110-41F11

$194.95

7

ARM, BRAKE ROD

43120-41F00

$69.90

8

RUBBER,BRAKE PEDAL This part replaces 43151-10F00.

43151-10F01

$7.34

9

BOLT

07120-0625A

$2.57

10

SPRING

09443-12051

$6.50

11

BOLT

01500-06207

$2.06

12

.NUT

08310-00067

$1.91

13

PIN (6X18.2)

09200-06068

$3.82

14

WASHER

08322-0106B

$2.31

15

COTTER PIN

04111-2015A

$1.25

16

ROD, FRONT

43130-41F00

$70.07

17

LINK, REAR BRAKE

43140-41F00

$69.02

18

SHAFT, BRAKE PEDAL

43142-27C00

$22.07

19

RUBBER,BRAKE LINK This part replaces 43151-41F00.

43151-41F01

$9.72
