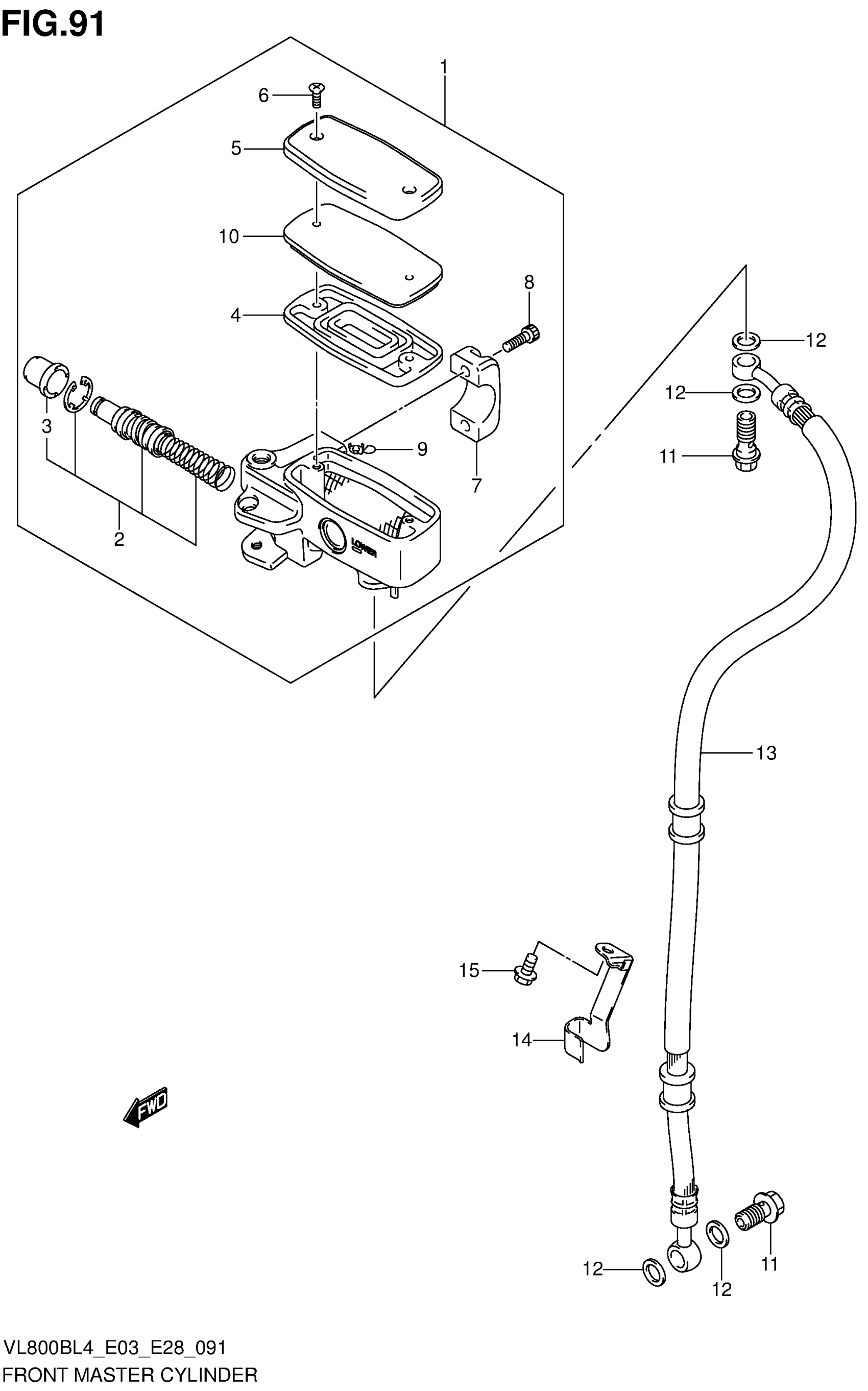

Suzuki VL800BL4 (2014) FRONT MASTER CYLINDER Diagram

#

Description
Price

1

CYLINDER ASSY, FRONT MASTER

59600-10FF0

Unavailable

2

PISTON/CUP SET

59600-04810

$43.23

3

BOOT

59666-44300

$5.54

4

DIAPHRAGM

59667-10F00

$11.40

5

CAP

59669-10F40

$56.07

6

SCREW

69689-49300

$1.81

7

HOLDER

59671-10F20

Unavailable

8

BOLT

07130-06207

$2.88

9

PROTECTOR

59664-32F00

$13.20

10

PLATE

57437-10F00

$23.73

11

UNION

09360-10062

$5.99

12

WASHER (10X15X1.5)

09161-10009

$1.89

13

HOSE,FRONT BRAKE This part replaces 59480-41F10.

59480-41F11

$124.98

14

CLAMP, BRAKE HOSE UPPER

59266-43H00

Unavailable

15

BOLT

01550-0612B

$2.44
