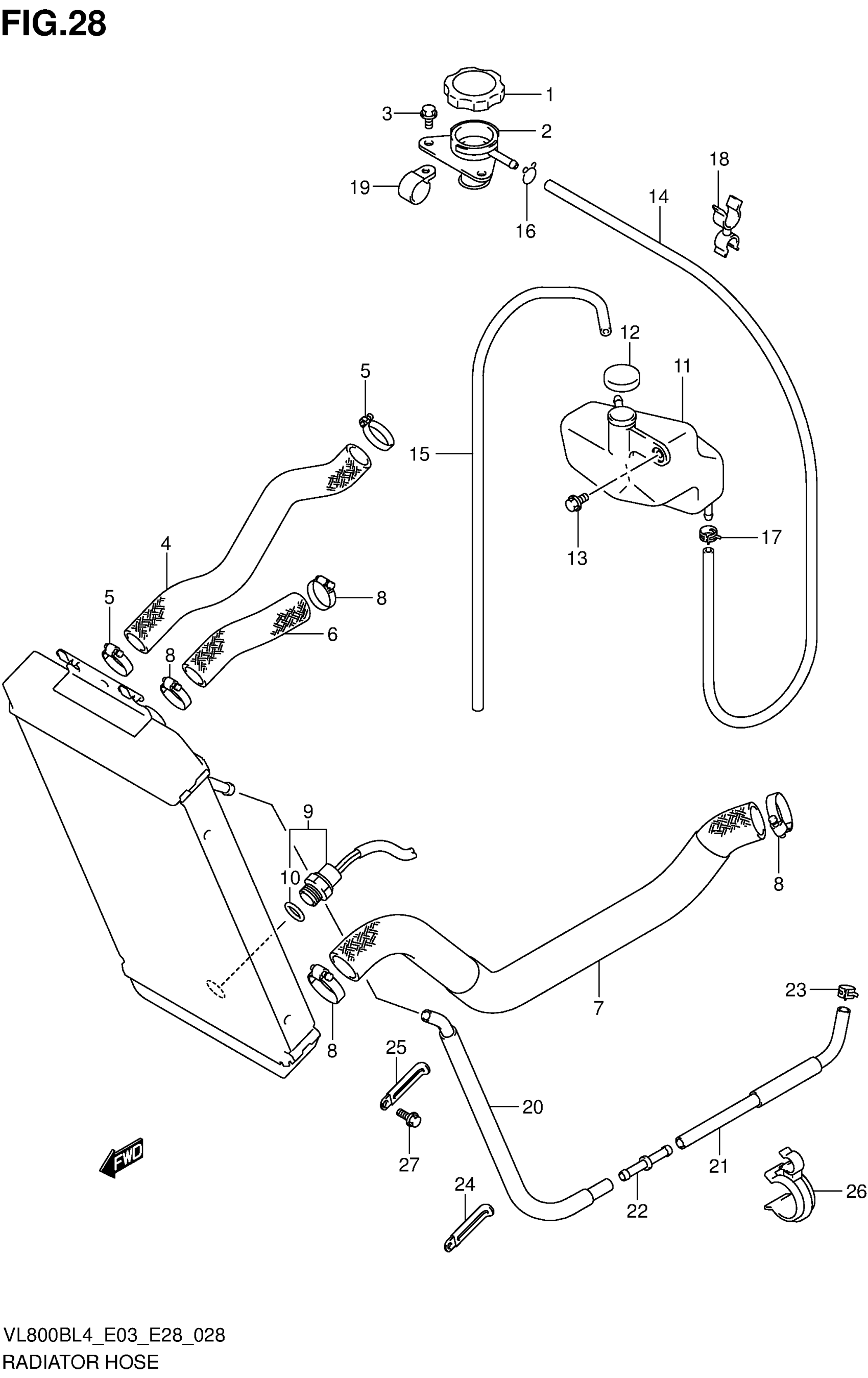

Suzuki VL800BL4 (2014) RADIATOR HOSE (VL800BL4 E03) Diagram

#

Description
Price

1

CAP, RADIATOR, 1.1

17730-12C30

$51.93

2

CONDUCTION

17791-24D00

$61.15

3

BOLT

01547-0616A

$2.03

4

HOSE, CONDUCTION

17853-41F00

$29.08

5

CLAMP

09402-28513

$6.88

6

HOSE, RADIATOR INLET

17851-41F00

$19.15

7

HOSE, RADIATOR OUTLET

17852-41F02

$48.23

8

CLAMP

09402-32512

$12.85

9

SWITCH,RDTR FAN This part replaces 17680-33E00.

17680-33E01

$48.44

10

O RING

17689-50F00

$2.53

11

TANK,RESERVOIR

17911-41F11

$66.87

12

CAP, RESERVOIR TANK

17932-12C00

$4.48

13

BOLT (6X12)

09111-06085

$4.54

14

HOSE, INLET

17981-41F11

Unavailable

15

HOSE, OUTLET

17981-19F00

$14.70

16

CLIP

09401-08410

$1.84

17

CLIP

09401-08411

$1.78

18

CLAMP

09408-00078

Unavailable

19

CLAMP

09403-08404

Unavailable

20

HOSE, WATER BYPASS

17855-41F00

$50.92

21

HOSE, WATER BYPASS

17856-41F00

$26.88

22

JOINT

09367-08001

$4.17

23

CLIP

09401-12405

$2.26

24

CLAMP (L:80) This part replaces 09404-08419.

09404-08422

$2.65

25

CLAMP (L:82)

09404-10205

Unavailable

26

CLAMP

09408-00177

Unavailable

27

BOLT (10X16)

09103-10393

Unavailable
