2014 Suzuki VL800BL4 Headlamp Housing Diagram

← All diagrams

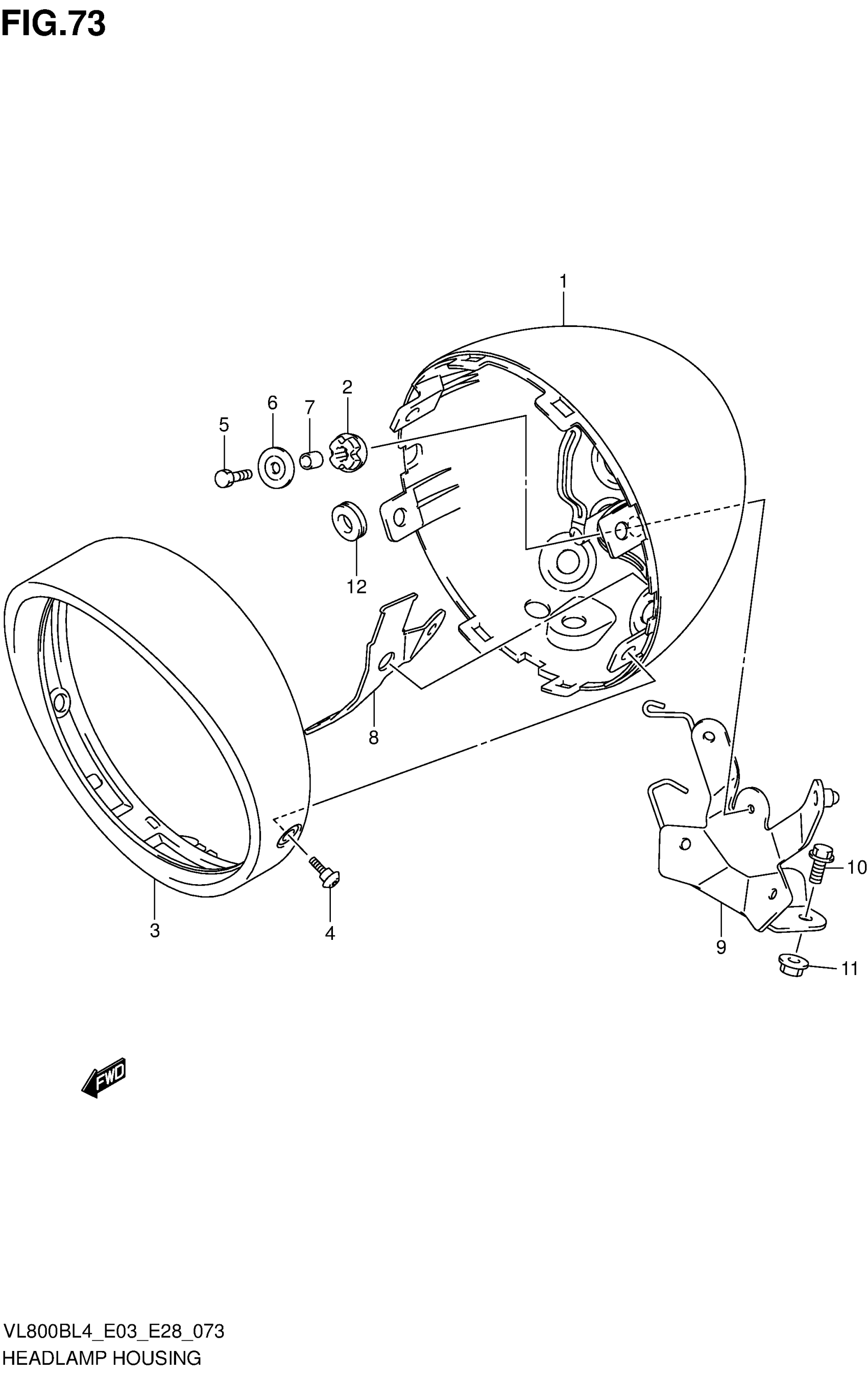

Find the part on the Headlamp Housing diagram for your 2014 Suzuki VL800BL4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2014 Suzuki VL800BL4 Headlamp Housing Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HOUSING, HEADLAMP (BLACK)

51811-06J10-019

1
Out of stock

2

CUSHION

09320-09010

5

$2.92

In stock

3

COVER, HEADLAMP HOUSING

51821-06J00

1
Out of stock

4

SCREW (5X16)

09139-05077

2
Out of stock

5

BOLT

01500-0625A

4
Out of stock

6

WASHER (6.5X20X1.2)

09160-06152

2
Out of stock

7

SPACER (6.5X9X10)

09180-06307

4
Out of stock

8

PLATE, HEADLAMP HOUSING

51859-43H00

1
Out of stock

9

BRACKET, HOUSING

51850-43H00

1
Out of stock

10

BOLT

01550-0825B

2
Out of stock

11

NUT

08319-3108B

2
Out of stock

12

CUSHION

09320-08028

1
Out of stock
← Headlamp Assy Magneto →
