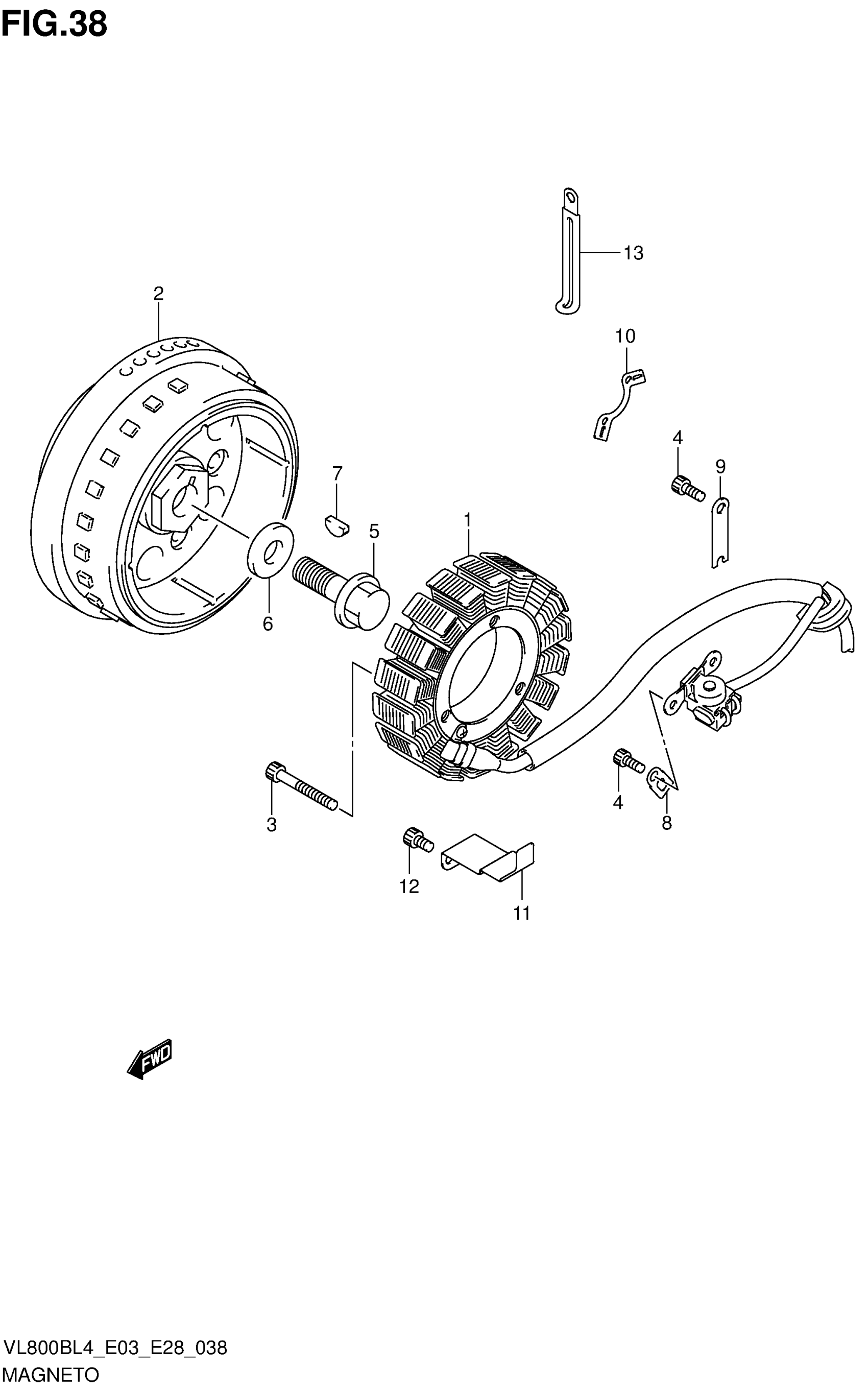

Suzuki VL800BL4 (2014) MAGNETO Diagram

#

Description
Price

1

STATOR

32101-41F10

$570.98

2

ROTOR

32102-41F10

$715.95

3

BOLT

07130-0640A

Unavailable

4

BOLT

07130-0510A

$2.92

5

BOLT (14X43)

09103-14001

$12.85

6

WASHER (14X29X4)

09160-14021

$7.20

7

KEY

09420-05007

$5.00

8

CLAMP

31497-45000

$2.17

9

CLAMP

32371-38A10

Unavailable

10

CLAMP

32371-41F00

Unavailable

11

CLAMP

32371-45C00

$5.18

12

BOLT

07130-0610A

Unavailable

13

CLAMP (L:80) This part replaces 09404-08419.

09404-08422

$2.88
