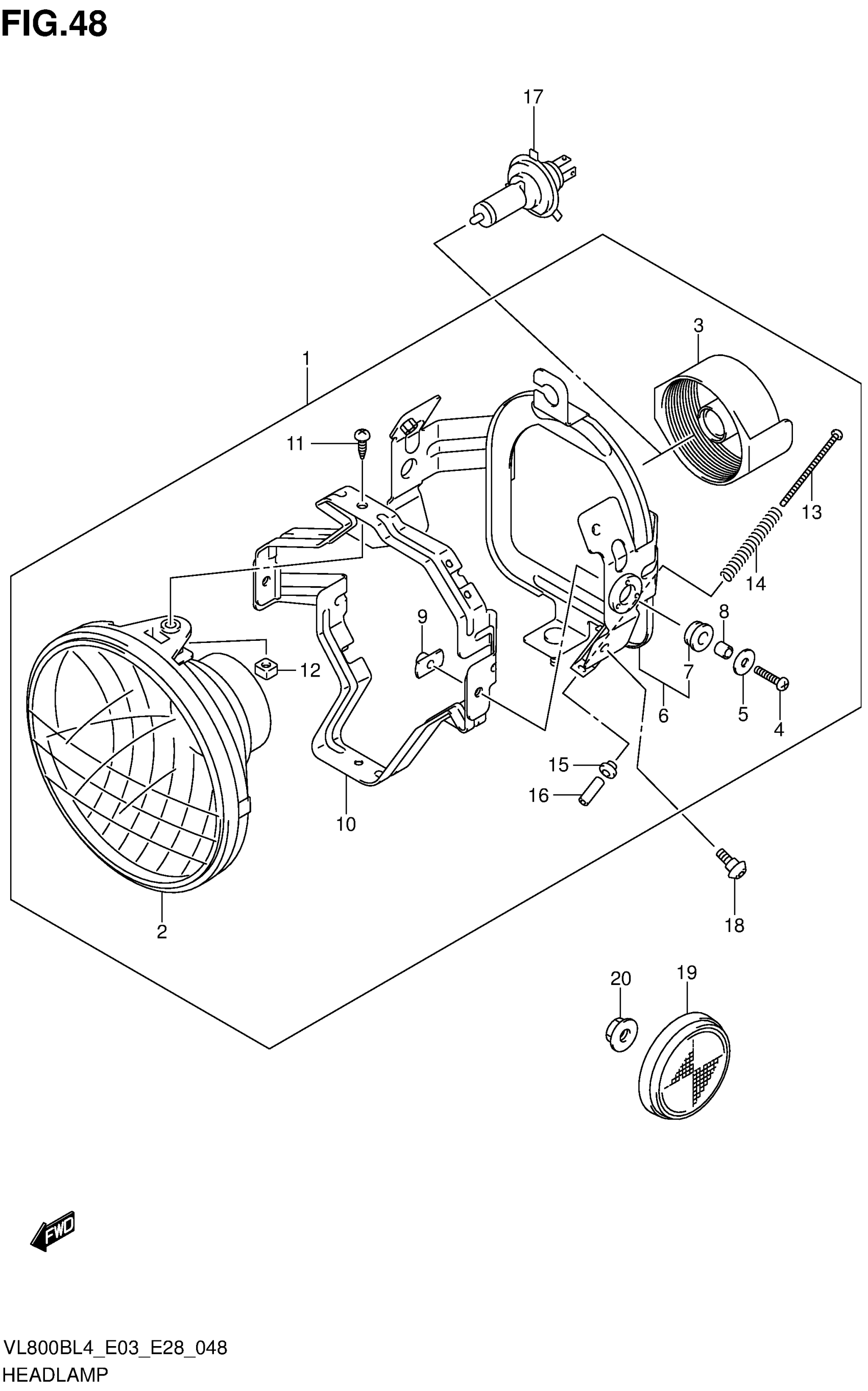

Suzuki VL800BL4 (2014) HEADLAMP ASSY (VL800BL4 E33) Diagram

#

Description
Price

1

.HEADLAMP ASSY This part replaces 35100-06J30-999.

35100-06J31-999

$324.75

2

UNIT

35121-10FB0

$201.52

3

.COVER,SOCKET

35174-19F00

$30.22

4

SCREW

02122-0520A

$2.27

5

WASHER

09160-05045

$1.93

6

BRACKET

35140-06J00

Unavailable

7

CUSHION

35139-38A60

$4.10

8

SPACER

35133-45230

$3.30

9

NUT

35155-10FA0

$5.98

10

BRACKET

35130-10FA0

$63.90

11

.SCREW (5X16)

35181-19F00

$3.25

12

NUT

35135-45900

$3.25

13

SCREW, ADJUSTER

35151-10FA0

$11.37

14

SPRING, ADJUSTER

35154-10FA0

$5.98

15

.NUT

35152-45600

$3.47

16

COVER

35158-10FA0

Unavailable

17

BULB (12V,60/55W)

09471-12060

$25.15

18

BOLT (6X12)

09111-06107

$2.60

19

REFLEX REFLECTOR ASSY, FR SID

35950-14A11

$15.23

20

NUT

08316-1005B

$2.50
