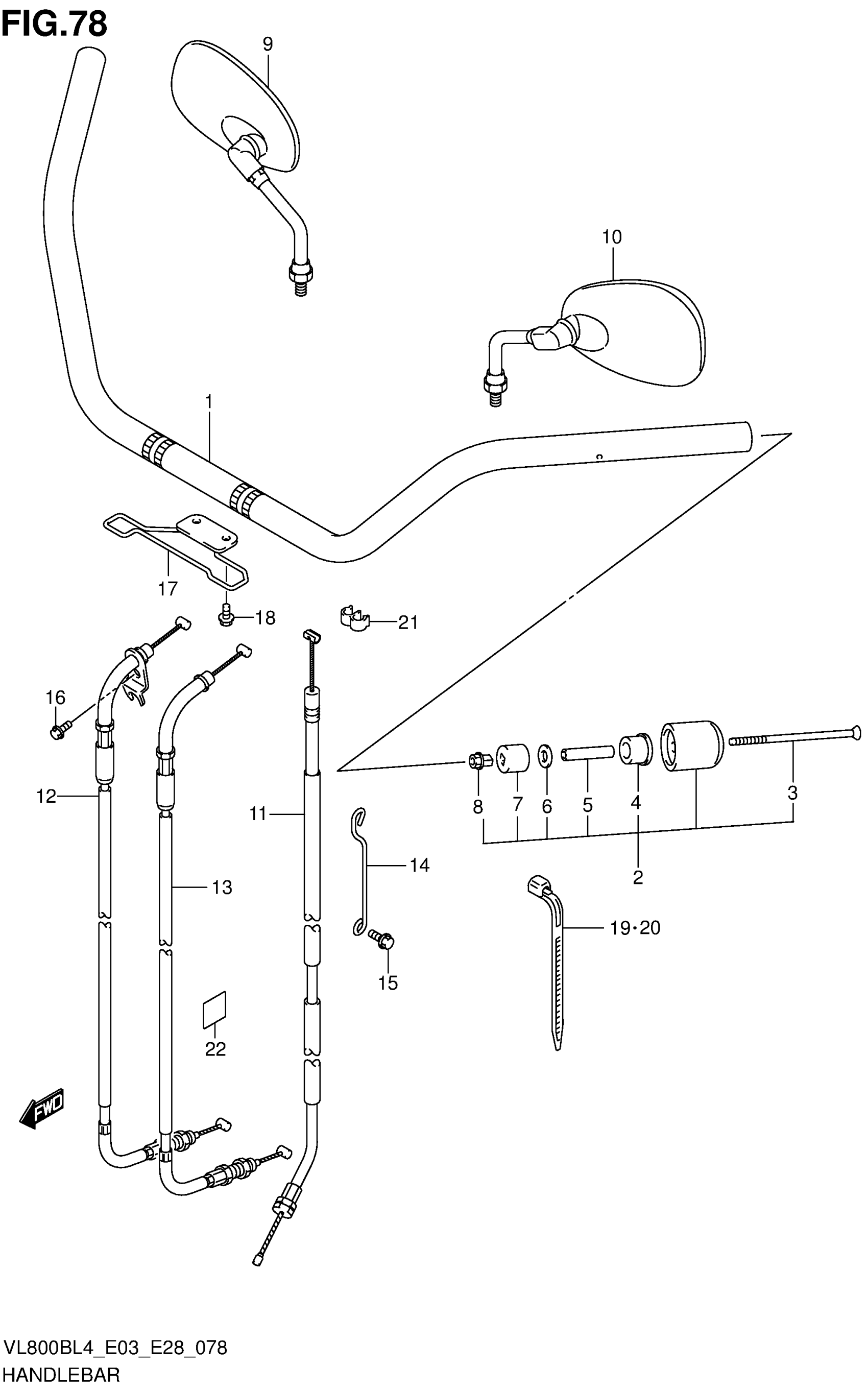

Suzuki VL800BL4 (2014) HANDLEBAR (VL800BL4 E28) Diagram

#

Description
Price

1

HANDLEBAR

56111-41F40

$239.98

2

BALANCER SET, HANDLEBAR This part replaces 56200-10891.

56200-10892

$57.38

3

SCREW (6X127)

09127-06017

$2.78

4

EXPANDER, OUTER

56272-26D01

$7.25

5

SPACER

56276-17D00

$5.07

6

WASHER (6.5X16X4)

09160-06131

$2.50

7

EXPANDER, INNER

56272-10G10

$4.73

8

NUT

56273-10G10

$8.65

9

MIRROR ASSY, REAR VIEW RH

56500-41F90

$152.93

10

MIRROR ASSY, REAR VIEW LH

56600-41F90

$152.20

11

CABLE ASSY, CLUTCH

58200-41F30

$84.50

12

CABLE ASSY,THROTTLE NO.1 This part replaces 58300-43H00.

58300-43H01

$39.48

13

CABLE ASSY,THROTTLE NO.2 This part replaces 58300-43H10.

58300-43H11

$32.82

14

GUIDE, THROTTLE CABLE

58626-41F01

$6.08

15

BOLT

01550-0612A

$1.97

16

BOLT

01550-0616A

$1.97

17

GUIDE, CABLE

58620-41F00

Unavailable

18

BOLT

01550-0612A

$1.97

19

CLAMP (L:190)

09407-19401

$3.05

20

CLAMP (L:300)

09407-30401

$5.72

21

CLIP

09408-00244

$2.83

22

PROTECTOR

87873-56K50

$9.90
