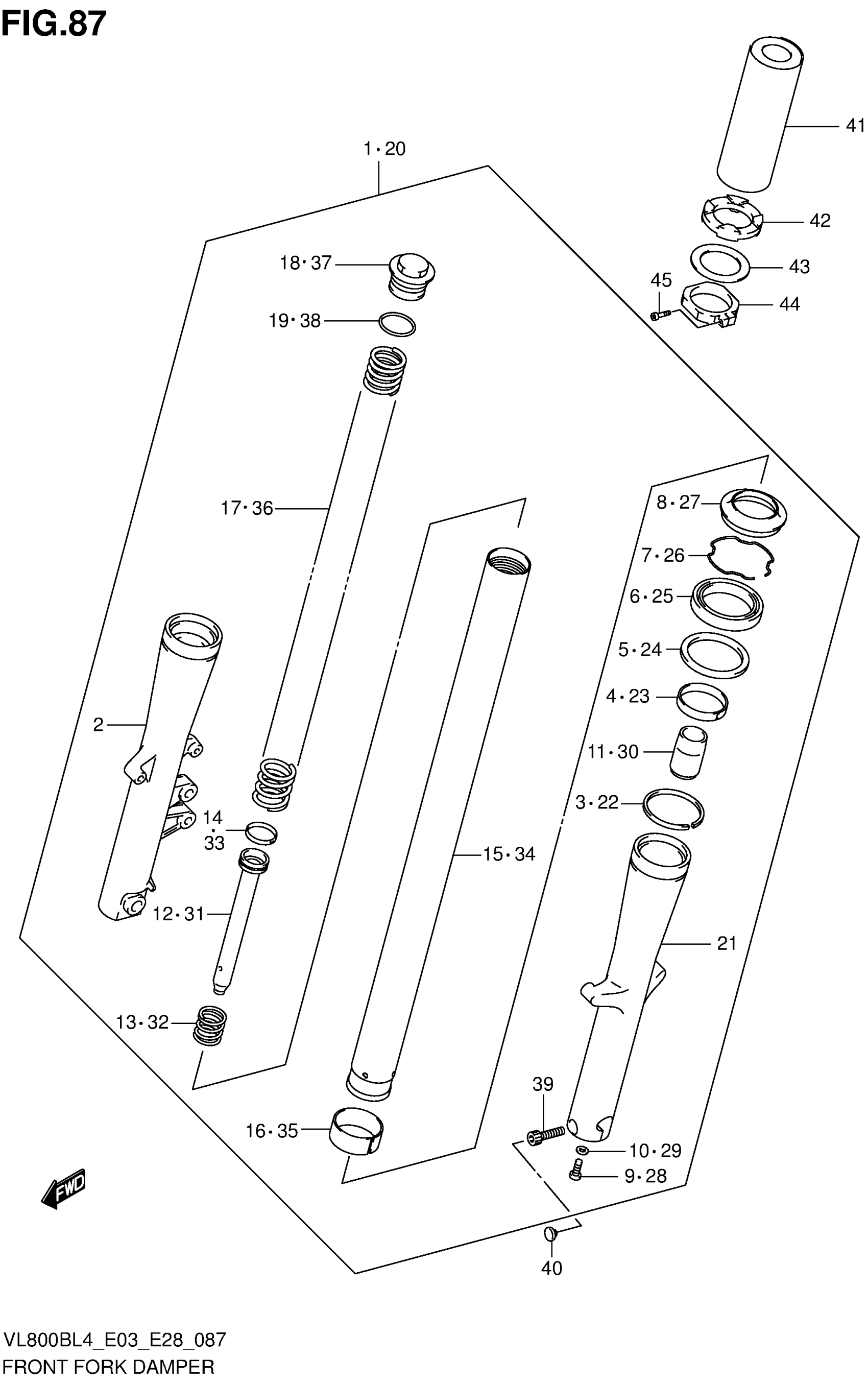

Suzuki VL800BL4 (2014) FRONT FORK DAMPER Diagram

#

Description
Price

1

DAMPER ASSY, FRONT FORK RH

51103-41F70

Unavailable

2

TUBE, OUTER RH

51131-41F70

$351.57

3

GUIDE, CASE

51469-41F21

$17.70

4

BUSH, GUIDE

51152-11D60

$14.26

5

SPACER, SEAL

51168-38B00

$6.49

6

SEAL, OIL

51153-08D00

$22.96

7

RING

51556-38B00

$7.22

8

SEAL, DUST

51571-47D50

$21.90

9

BOLT

51147-06F10

$5.98

10

O RING This part replaces 51148-31030.

51148-36011

$3.56

11

PIECE, OIL LOCK

51195-10F00

$30.22

12

SEAT, PIPE

51146-10F00

Unavailable

13

SPRING, REBOUND

51177-10F00

Unavailable

14

RING

51196-47D00

$8.83

15

TUBE, INNER

51110-41F40

$505.98

16

BUSH, SLIDE

51121-42E00

$18.32

17

SPRING, FRONT

51171-41F40

Unavailable

18

BOLT, FORK

51189-41F70

Unavailable

19

.O-RING

51117-12C00

$3.89

20

DAMPER ASSY, FRONT FORK LH

51104-41F70

Unavailable

21

TUBE, OUTER LH

51141-41F70

Unavailable

22

GUIDE, CASE

51469-41F21

$17.70

23

BUSH, GUIDE

51152-11D60

$14.26

24

SPACER, SEAL

51168-38B00

$6.49

25

SEAL, OIL

51153-08D00

$22.96

26

RING

51556-38B00

$7.22

27

SEAL, DUST

51571-47D50

$21.90

28

BOLT

51147-06F10

$5.98

29

O RING This part replaces 51148-31030.

51148-36011

$3.56

30

PIECE, OIL LOCK

51195-10F00

$30.22

31

SEAT, PIPE

51146-10F00

Unavailable

32

SPRING, REBOUND

51177-10F00

Unavailable

33

RING

51196-47D00

$8.83

34

TUBE, INNER

51110-41F40

$505.98

35

BUSH, SLIDE

51121-42E00

$18.32

36

SPRING, FRONT

51171-41F40

Unavailable

37

BOLT, FORK

51189-41F70

Unavailable

38

.O-RING

51117-12C00

$3.89

39

BOLT

07130-10357

$5.18

40

CAP (OD:12)

09250-08014

$2.85

41

CASE, UNDER

51464-41F70

Unavailable

42

SEAT, RUBBER

51468-10F00

$21.83

43

WASHER

51467-10F70

$12.65

44

SPACER

51465-41F20

$53.50

45

BOLT

51466-10F00

$7.53
