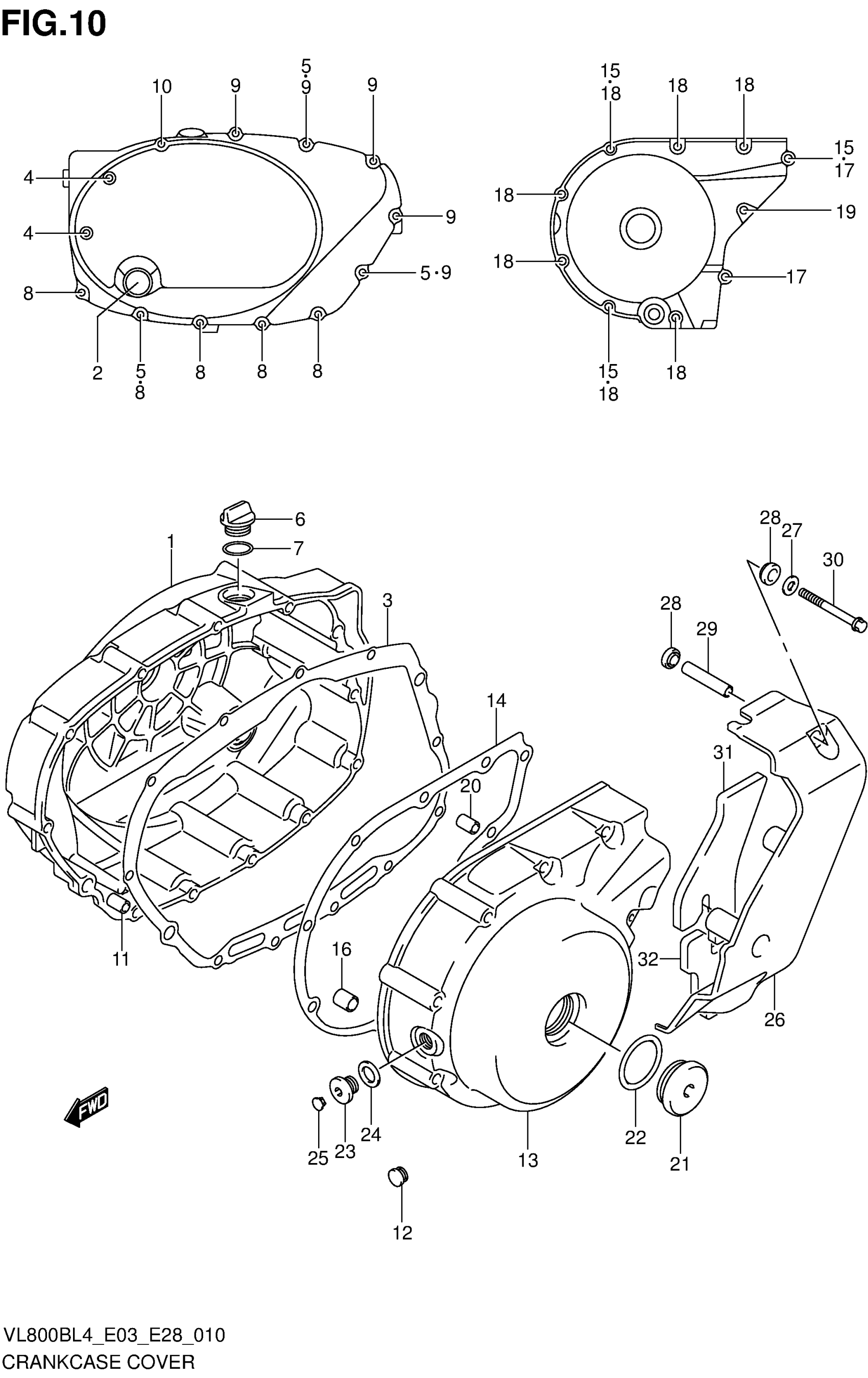

Suzuki VL800BL4 (2014) CRANKCASE COVER (VL800BL4 E03) Diagram

#

Description
Price

1

COVER, CLUTCH

11340-39G00

Unavailable

2

LENS, OIL LEVEL

11971-33210

$18.20

3

GASKET, CLUTCH COVER

11482-41F00

$17.14

4

BOLT (6X105)

09103-06270

$4.32

5

GASKET (5.8X13X1.2)

09168-06023

$2.35

6

PLUG,ENGINE OIL FILLER

11971-25D00

$5.11

7

O RING (D:3.1,ID:16.8)

09280-17003

$1.65

8

BOLT (6X30)

09103-06213

$2.47

9

BOLT (6X50)

09103-06238

$2.66

10

BOLT (6X85)

09103-06226

$3.85

11

PIN

04211-09189

$1.65

12

CAP (OD:12)

09250-08013

$2.68

13

COVER, GENERATOR

11351-39G01

$367.98

14

GASKET, GENERATOR COVER

11483-41F00

$14.20

15

GASKET (5.8X13X1.2)

09168-06023

$2.35

16

PIN (8.4X11X20)

09206-11007

$2.37

17

BOLT (6X40)

09103-06215

$2.78

18

BOLT (6X55)

09103-06216

$2.78

19

BOLT (6X85)

09103-06226

$3.85

20

PIN

04211-09189

$1.65

21

PLUG (36X10)

09259-36008

$8.46

22

.O-RING (D:3.1,ID:32.7)

09280-33004

$2.23

23

PLUG, SHAFT This part replaces 09248-14012.

09248-14011

$2.98

24

GASKET (13.8X18.8X4.8)

09168-14002

$2.26

25

CAP (OD:12)

09250-08012

$2.15

26

COVER, SECONDARY DRIVE

11361-39G00

Unavailable

27

WASHER (6.5X14X1.6)

09160-06125

$1.91

28

WASHER (8.7X16X5)

09161-09005

$2.36

29

SPACER (6.5X9X41.3)

09180-06280

$5.07

30

BOLT (6X55)

09103-06216

$2.78

31

CUSHION, SEC DRIVE COVER NO.1

11362-39G00

$15.00

32

CUSHION, SEC DRIVE COVER NO.2

11363-39G00

$10.58
