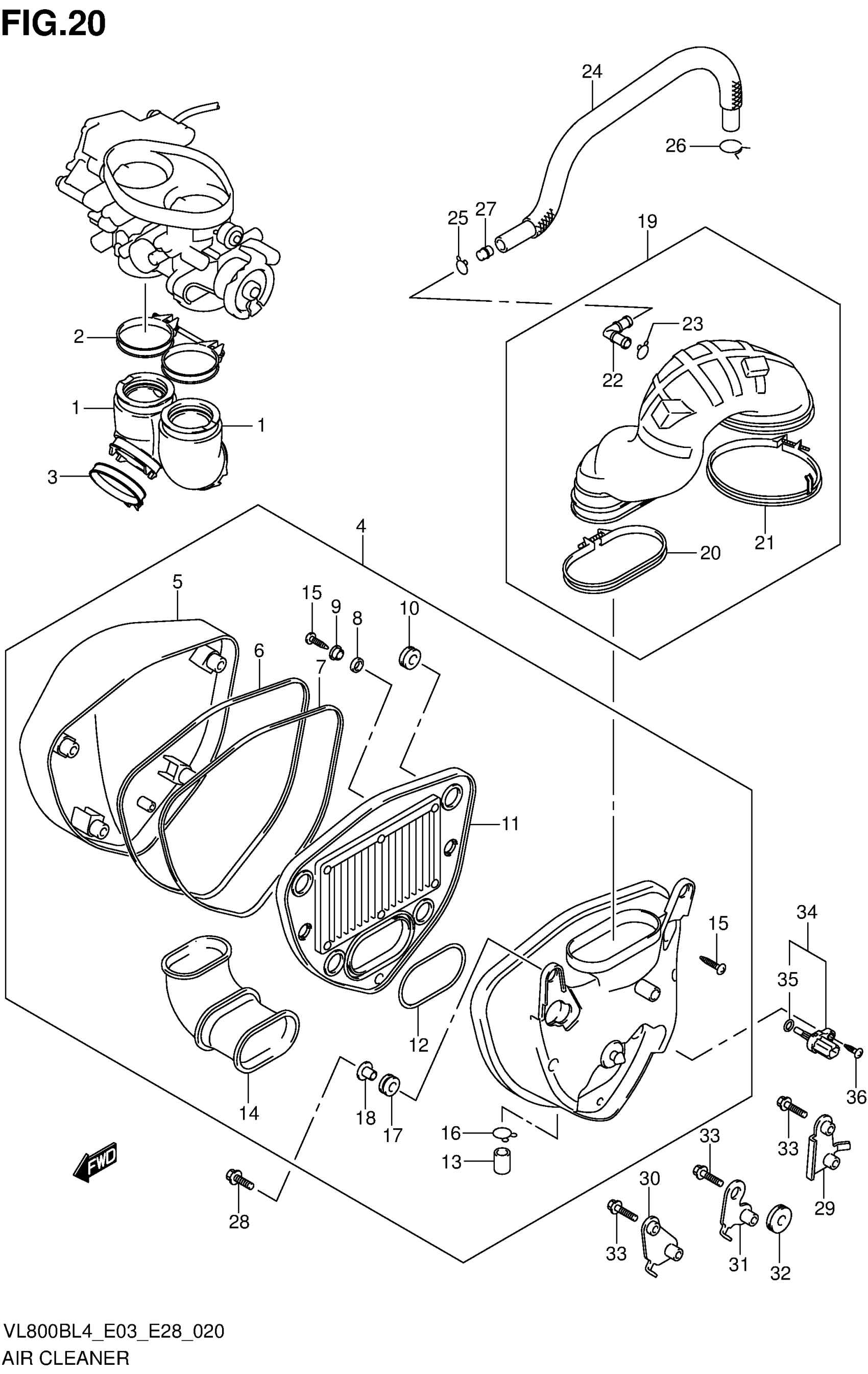

Suzuki VL800BL4 (2014) AIR CLEANER Diagram

#

Description
Price

1

PIPE,INTAKE This part replaces 13111-41F11.

13111-41F12

$34.28

2

CLAMP

13170-39G00

$29.83

3

CLAMP

13170-15G00

$6.42

4

CASE ASSY

13701-39G30

$421.85

5

CAP

13741-39G30

$204.88

6

GASKET

13727-39G20

$14.78

7

GASKET

13726-39G20

$17.70

8

CUSHION

13747-39G20

$3.78

9

WASHER

09169-06082

$4.32

10

CUSHION

13747-41F00

$3.11

11

FILTER

13780-39G20

$52.34

12

GASKET, FILTER

13746-39G20

$12.40

13

.PLUG

13859-41B10

$7.38

14

TUBE, INLET

13891-39G20

Unavailable

15

SCREW

03541-0525B

$2.32

16

CLIP

09401-14301

$2.35

17

CUSHION

09320-09016

$1.97

18

COLLAR

13812-29C50

$2.70

19

TUBE ASSY, OUTLET

13880-39G21

Unavailable

20

CLAMP

13826-41F20

$25.03

21

CLAMP

13826-39G21

Unavailable

22

JOINT

13858-14D20

$7.22

23

CLIP

09401-15101

$2.26

24

TUBE, BREATHER

13853-39G20

Unavailable

25

CLIP

09401-15101

$2.26

26

CLIP

09401-16301

Unavailable

27

.JET,BREATHER This part replaces 13859-14D40.

13859-14D41

$4.40

28

SCREW (6X20)

09139-06063

$4.00

29

BRACKET, NO.1

13761-39G20

$17.17

30

BRACKET, NO.2

13762-39G20

$17.17

31

BRACKET, NO.3

13763-39G20

$16.38

32

CUSHION

09320-08028

$3.04

33

BOLT

01547-0625A

$2.01

34

SENSOR, AIR TEMP

13650-41F10

$63.25

35

O-RING

13655-41F10

Unavailable

36

SCREW

03511-0516B

$2.28
