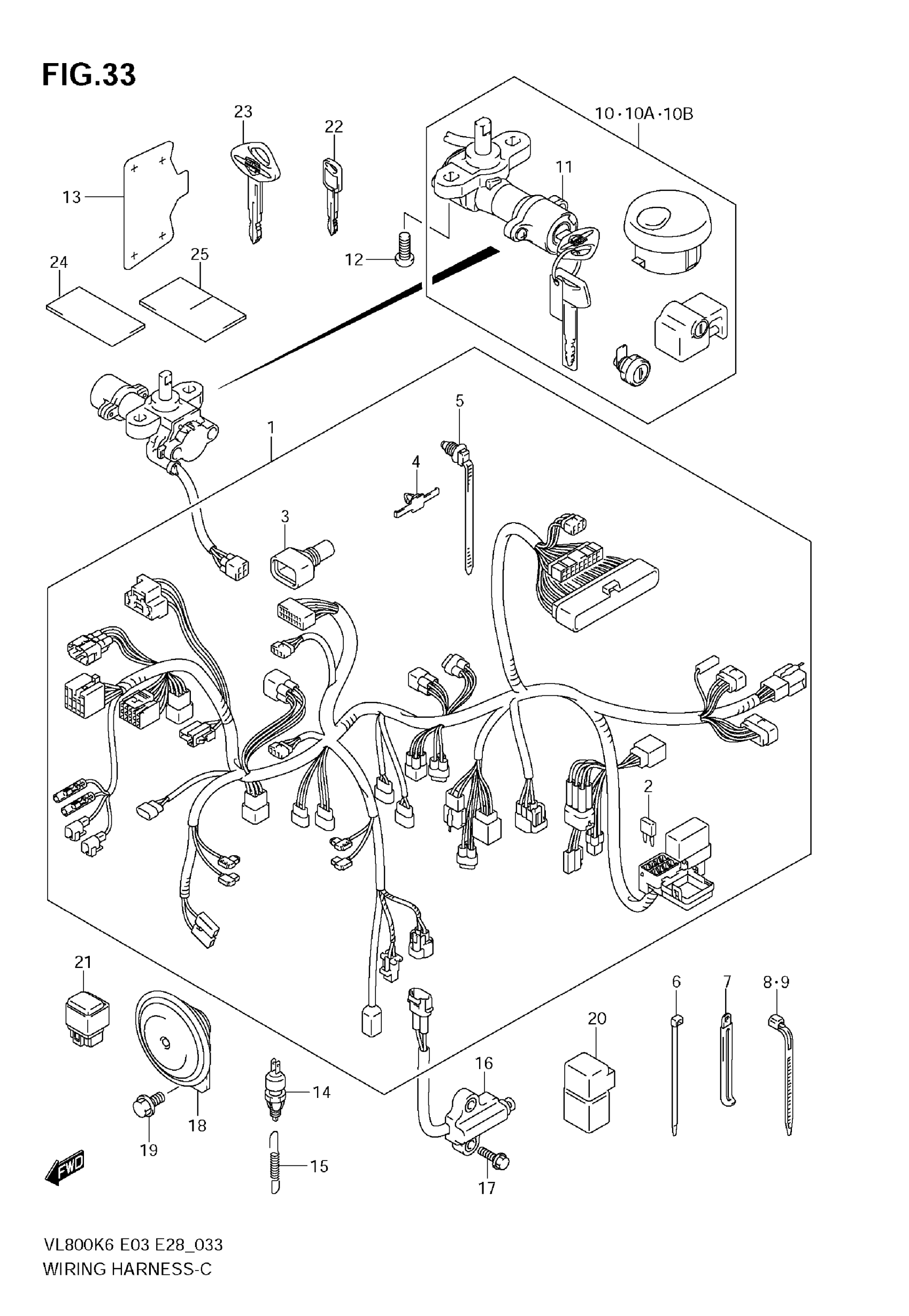

Suzuki VL800 (2009) WIRING HARNESS (MODEL K6/K7/K8) Diagram

#

Description
Price

1

HARNESS,WIRING | MODEL K6 E3,E28 This part replaces 36610-41FH0.

36610-41FH1

Unavailable

1

HARNESS, WIRING | MODEL K6 E33

36610-41FN0

Unavailable

1

HARNESS,WIRING | MODEL K7/K8; Includes Item(s) 2 - 5 This part replaces 36610-41FL0.

36610-41FL1

Unavailable

2

FUSE (10A)

09481-10501

$2.06

2

FUSE (15A)

09481-15501

$2.02

3

COVER, SPEEDOMETER

36618-33E00

$8.77

4

CLAMP

09407-05410

Unavailable

5

CLAMP

09407-17403

$4.91

6

CLAMP (L:145)

09407-14407

$3.57

7

CLAMP(L:80) This part replaces 09404-06433.

09404-06036

$1.74

7

CLAMP (L:135)

09404-06435

$3.68

8

CLAMP (L:165)

09407-18402

$2.19

9

CLAMP (L:190)

09407-19401

$3.05

10

LOCK SET | MODEL K6 This part replaces 37101-41870.

37101-41871

Unavailable

10

LOCK SET | MODEL K6 E33

37101-41880

Unavailable

10A

LOCK SET | MODEL K7/K8 This part replaces 37102-41870.

37102-41873

$328.92

10B

LOCK SET | MODEL K7/K8 E33; Includes Item(s) 11 This part replaces 37102-41880.

37102-41883

$318.77

11

.LOCK ASSY,STEERING This part replaces 37100-41F70.

37100-41F71

$152.57

12

SCREW, STEERING LOCK

09139-08016

$3.37

13

PROTECTOR, IGNITION SWITCH

37187-41F10

$12.17

14

SWITCH ASSY, STOP LAMP

37740-24A00

$18.20

15

SPRING, STOP LAMP

09443-06073

$3.42

16

SWITCH ASSY,SIDE STAND This part replaces 37840-41F00.

37840-41F02

$60.37

17

BOLT

09103-06279

Unavailable

18

HORN ASSY | VL800K6/TK6

38500-41F10

Unavailable

18

HORN ASSY | VL800CK6

38500-41F20

$74.56

18

HORN ASSY | VL800K7/K8/TK7/TK8

38500-41F20

$74.56

19

BOLT

01550-0816B

$2.73

20

RELAY ASSY, FUEL PUMP

38740-24X50

$45.20

21

RELAY ASSY, HEAD LAMP | MODEL K7

38740-24A00

$63.30

22

KEY, BLANK | OPT

37146-41F10

$24.93

23

KEY, BLANK "BOULEVARD" | OPT

37146-41FA0

$50.63

24

TAPE,HARNESS (28X50X0.13) | 28X50X0.13

36611-16G00

$3.03

25

TAPE, WIRING HARNESS | 30X50X3.0

36920-33C00

Unavailable
