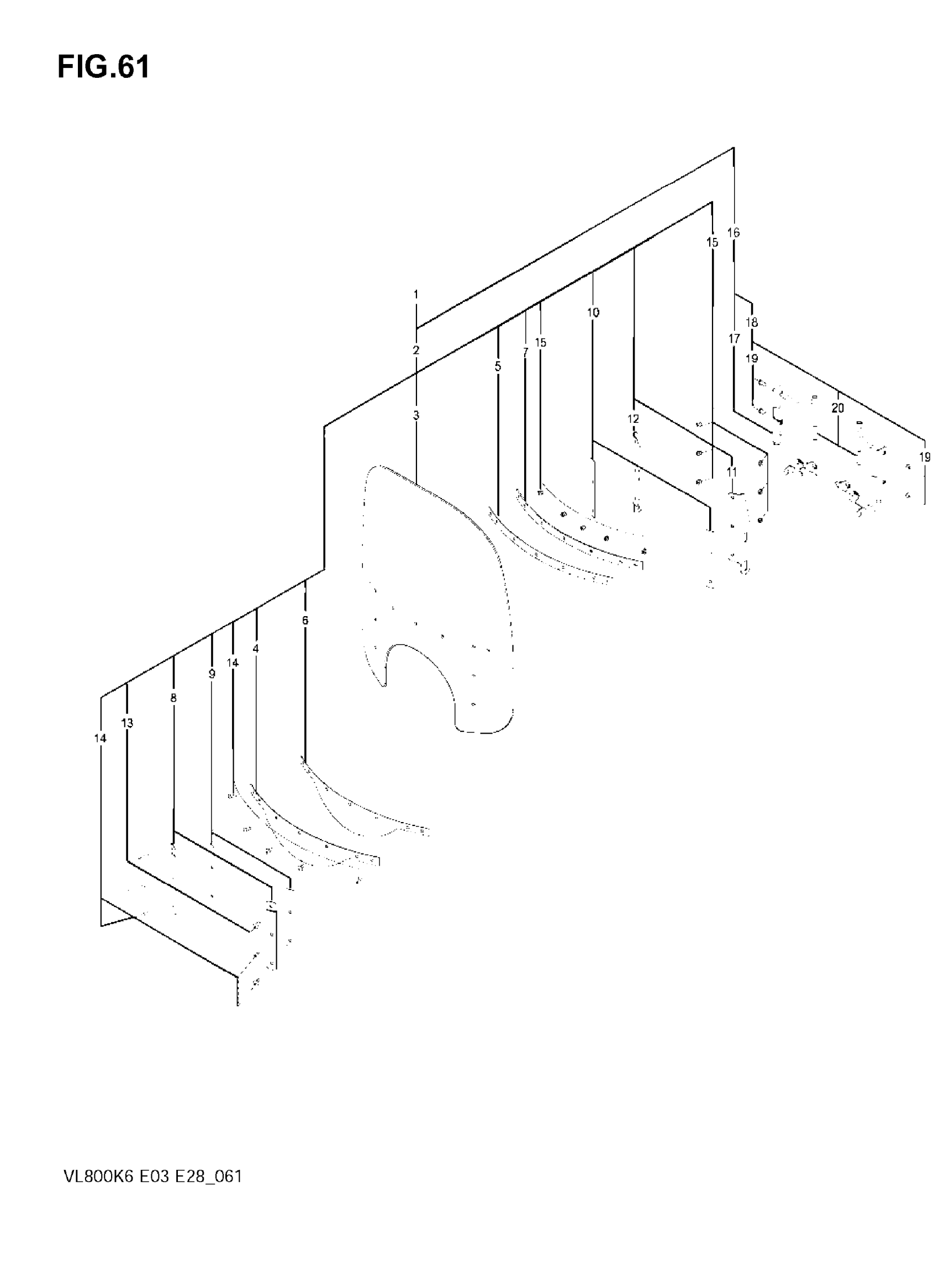

Suzuki VL800 (2009) WINDSHIELD C50T Diagram

#

Description
Price

1

WINDSHIELD KIT, SUZUKI C50T

990A0-70022-TRG

$524.95

3

C50VL8 WINDSHLD This part replaces 990A0-70002-003.

990A0-70022-003

$199.95

4

OUTSIDE PLATE,HORIZONTAL | CHROME

990A0-70005-016

Unavailable

5

GASKET,HORIZONTAL | INSIDE STRIP

990A0-70005-017

Unavailable

6

GASKET,HORIZONTAL | OUTSIDE STRIP

990A0-70005-018

Unavailable

7

INSIDE STRIP,HORIZONTAL | CHROME

990A0-70005-019

Unavailable

8

OUTSIDE STRIP,VERT, | CHROME

990A0-70005-009

Unavailable

9

GASKET,VERT,OUTSIDE STRIP

990A0-70005-021

$4.92

10

GASKET,VERT,INSIDE STRIP

990A0-70005-022

Unavailable

11

BRACKET,FRAME,VERT,LH | CHROME

990A0-70002-004

Unavailable

12

BRACKET,FRAME,VERT,RH | CHROME

990A0-70002-005

Unavailable

13

CAP SCREW M6-1.0x20,SS, W/NYLOCK PATCH

990A0-70005-012

$3.25

14

CAP SCREW M6-1.0x16,SS, W/NYLOCK PATCH

990A0-70005-013

Unavailable

15

NUT,HEX CAP, M6-1.0 88

990A0-70005-014

Unavailable

16

HARDWARE KIT,C50T WINDSHIELD

990A0-70002-006

Unavailable

17

BRACE,COMPLETE,WINDSHIELD NOT AVAILABLE | CHROME

990A0-70002-007

Unavailable

19

CAP SCREW M8-1.25x16,SS

990A0-70005-028

Unavailable

20

CAP SCREW M8-1.25x40,SS

990A0-70002-008

Unavailable
