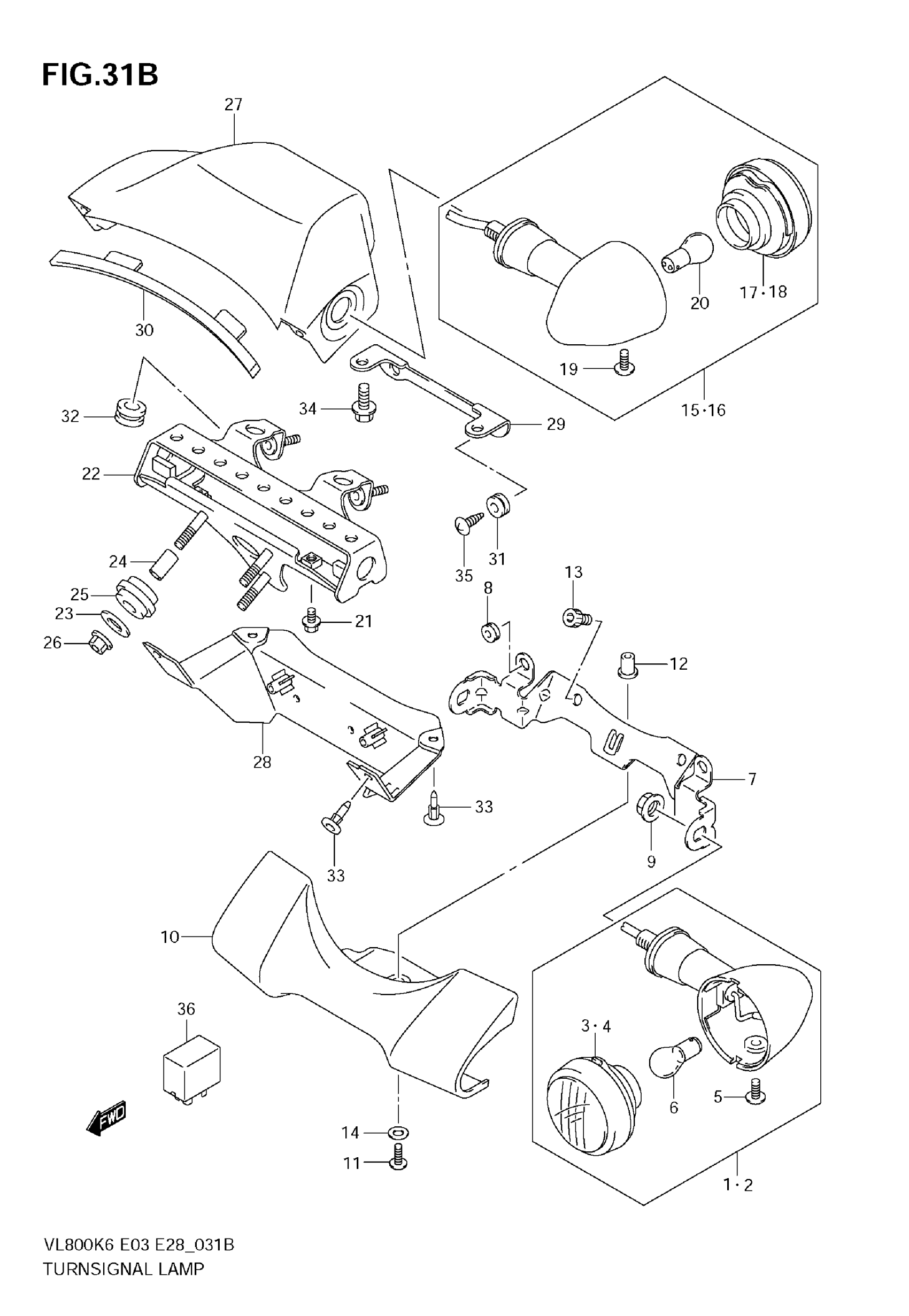

Suzuki VL800 (2009) TURNSIGNAL FRONT & REAR LAMP (MODEL K9) Diagram

LAMP ASSY,FRONT TURNSIGNAL,R

35601-48E70

$171.20

LAMP ASSY,FRONT TURNSIGNAL,L | Includes Item(s) 3 - 6

35602-48E70

$174.42

LENS | FOR RH

35610-38AA0

$28.79

LENS | FOR LH

35630-38AA0

$29.21

SCREW (4X10)

35623-38AA0

$4.67

BULB (12V,21/5W) This part replaces 09471-12083.

09471-12128

$6.08

BRACKET This part replaces 35616-41FA1.

35616-41FA3

$68.43

CUSHION (6.5X14X6) This part replaces 09320-06016.

09320-06027

$2.12

NUT

08310-0010B

$2.95

COVER, FRONT TURNSIGNAL

35641-41F02

$101.80

SCREW (5X8)

09139-05042

$2.70

NUT, COVER

09159-05019

$6.44

BOLT

07130-0812B

$2.68

WASHER | 5.5X14X1.20

09160-05048

$1.76

LAMP ASSY,TURNS This part replaces 35603-38AB2.

35603-38AB4

$83.29

LAMP ASSY,TURNS | Includes Item(s) 17 - 20 This part replaces 35604-38AB2.

35604-38AB4

$83.70

LENS | FOR RH

35630-38AE1

$29.21

LENS | FOR LH

35610-38AE1

$28.79

SCREW (4X10)

35623-38AA0

$4.67

BULB (12V21W)

09471-12045

$2.95

BOLT, RR TURN

09103-06507

$4.70

BRACKET, REAR TURNSIGNAL This part replaces 35620-43H00.

35620-43H01

$60.93

WASHER, BRACKET | 6.5X20X1.2

09160-06077

$1.89

SPACER, BRACKET | 6.4X10X18

09180-06195

$4.70

CUSHION, BRACKET

09320-10504

$6.28

NUT, BRACKET

08316-1006A

$2.19

COVER, RR TURN UPPER | E3,E33

35621-43H00

$124.85

COVER, RR TURN UPPER | E28

35621-43H50

Unavailable

COVER, RR TURN LOWER | E3,E33

35622-43H00

Unavailable

COVER, RR TURN LOWER | E28

35622-43H50

Unavailable

BRACKET, RR TURN COVER

35623-43H00

$11.93

GASKET, RR TURN COVER

35657-43H00

$9.35

CUSHION (6.5X14X6) This part replaces 09320-06016.

09320-06027

$2.12

CUSHION (8.4X18X6)

09320-08066

$7.44

CLIP, RR COVER

09409-06314-5PK

$2.80

BOLT, RR COVER BKT

01550-0612A

$1.97

SCREW, RR COVER

03541-0510A

$1.43

RELAY ASSY,TURNSIGNAL LAMP This part replaces 38610-03F00.

38610-03F01

$81.99
