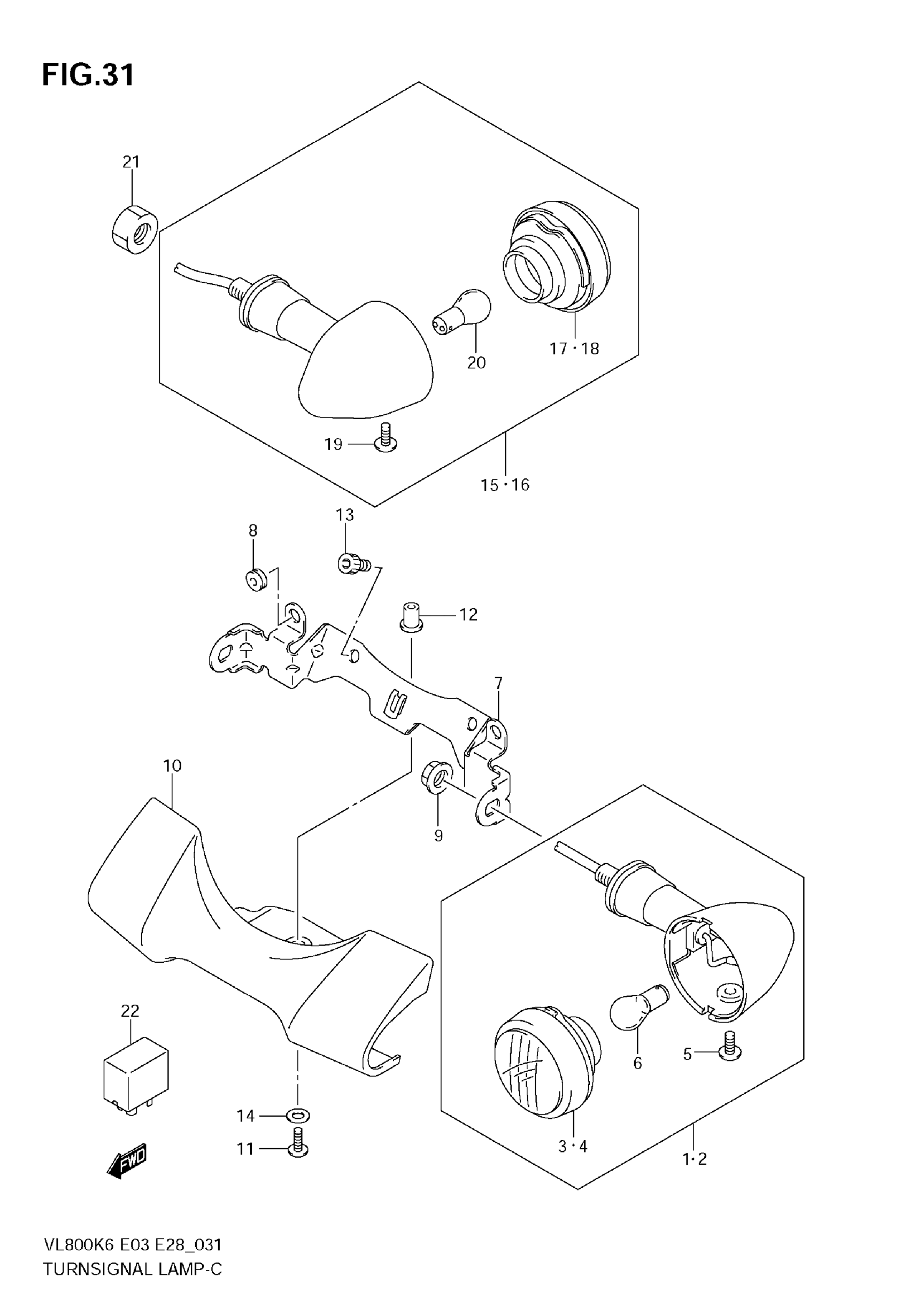

Suzuki VL800 (2009) TURNSIGNAL FRONT & REAR LAMP (MODEL K6) Diagram

#

Description
Price

1

FRONT TURNSIGNAL ASSY, RH

35601-41FB1

$135.57

2

FRONT TURNSIGNAL ASSY, LH | Includes Item(s) 3 - 6

35602-41FB1

$115.24

3

LENS | FOR RH

35610-38AA0

$31.91

4

LENS | FOR LH

35630-38AA0

$31.91

5

SCREW

35623-38AA0

$5.11

6

BULB (12V,21/5W) This part replaces 09471-12083.

09471-12128

$6.73

7

BRACKET This part replaces 35616-41FA1.

35616-41FA3

$60.63

8

CUSHION (6.5X14X6) This part replaces 09320-06016.

09320-06027

$2.10

9

NUT This part replaces 08316-20103.

08316-2010B

$3.43

10

COVER, FRONT TURNSIGNAL This part replaces 35641-41F01.

35641-41F02

$90.20

11

SCREW (5X8)

09139-05042

$2.90

12

NUT

09159-05019

$7.14

13

BOLT This part replaces 07130-08123.

07130-0812A

$3.72

14

WASHER

09160-05048

$2.02

15

LAMP ASSY,RR TU This part replaces 35603-38AC1.

35603-38AC2

$91.47

16

LAMP ASSY,RR TU | Includes Item(s) 17 - 20 This part replaces 35604-38AC1.

35604-38AC2

$82.77

17

LENS | FOR RH

35630-38AE1

$31.91

18

LENS | FOR LH

35610-38AE1

$31.91

19

SCREW

35623-38AA0

$5.11

20

BULB (12V21W)

09471-12045

$3.27

21

NUT This part replaces 08316-10103.

08316-1010B

$2.66

22

RELAY ASSY,TURNSIGNAL LAMP This part replaces 38610-03F00.

38610-03F01

$87.08
