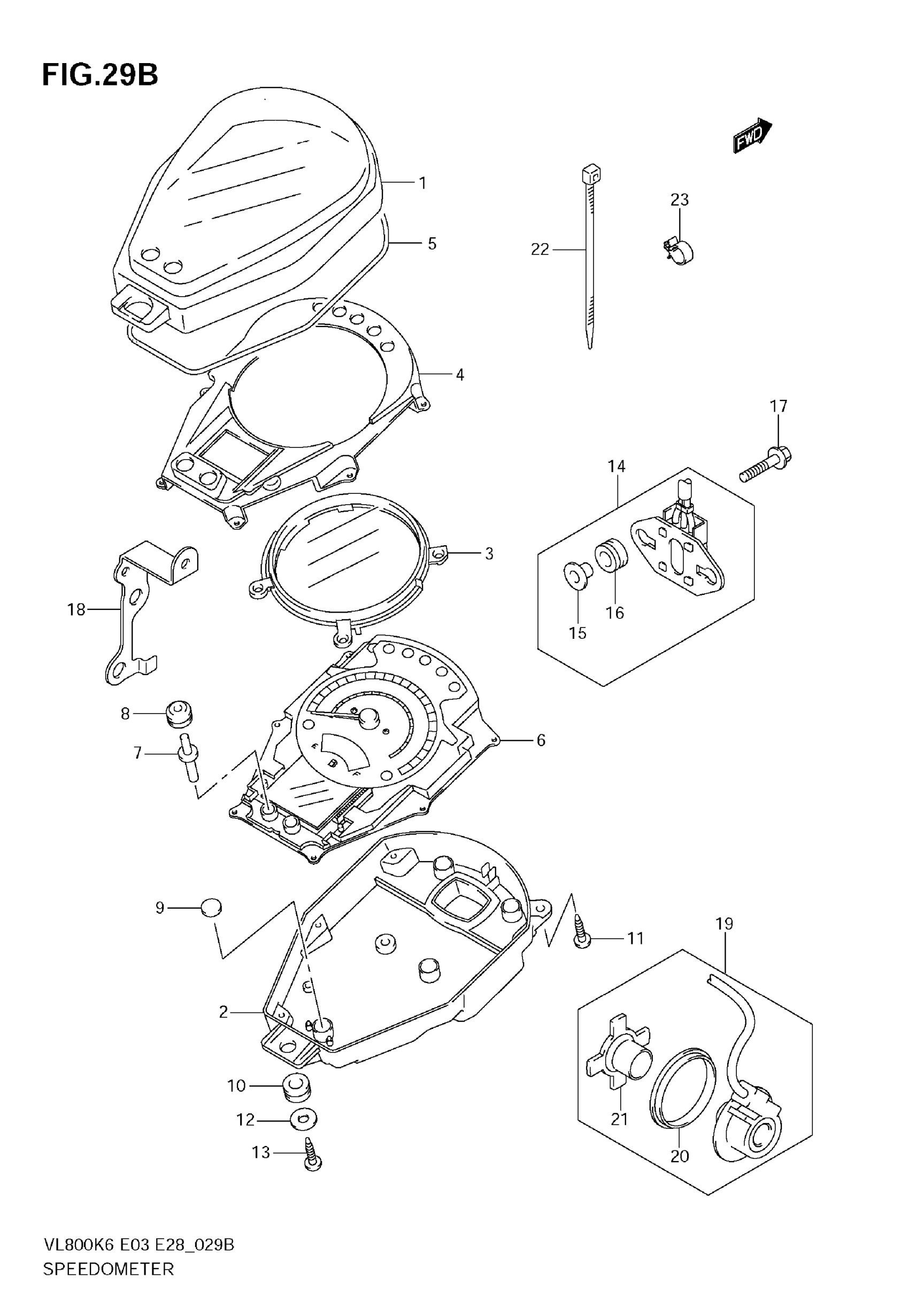

Find the part on the Speedometer diagram for your 2009 Suzuki VL800, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2009 Suzuki VL800 Speedometer Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CASE ASSY

34151-43H00

1
Out of stock

2

CASE, LOWER

34156-43H00

1
Out of stock

3

RING

34193-43H00

1
Out of stock

4

PLATE, WINDOW

34125-43H00

1
Out of stock

5

PACKING, RUBBER

34153-43H00

1
Out of stock

6

SPEEDOMETER (MILE/KILO)

34120-43H10

1
Out of stock

6

SPEEDOMETER (KILO) | E28

34120-43H00

—
Out of stock

7

NOB

34124-16G00

2
Out of stock

8

BUSHING

34126-44G00

2
Out of stock

9

CUSHION, METER

34167-13E00

5
Out of stock

10

.CUSHION

34996-43410

1
Out of stock

11

SCREW (3X12)

34183-29F00

11
Out of stock

12

WASHER, SPEEDOMETER | 5.5X16X1.2

09160-05037

1
Out of stock

13

SCREW, SPEEDOMETER

03541-0516A

3
Out of stock

14

RESISTOR ASSY | Includes Item(s) 15 - 16 This part replaces 36510-39F00.

36510-39F01

1
Out of stock

15

SPACER (6.5X10X11.6)

09180-06319

2
Out of stock

16

CUSHION

09320-10015

2
Out of stock

17

BOLT (6X25)

09116-06047

2
Out of stock

18

GUIDE, SPEED SENSOR

34938-41F50

1
Out of stock

19

SENSOR, SPEEDO | Includes Item(s) 20 - 21

34990-41F10

1
Out of stock

20

SEAL

09286-44001

1
Out of stock

21

MAGNET

34983-27G00

1
Out of stock

22

CLAMP (L:145)

09407-14407

1
Out of stock

23

CLIP, SENSOR LEAD

09403-06410

1
Out of stock
