2009 Suzuki VL800 Headlamp Housing Diagram

← All diagrams

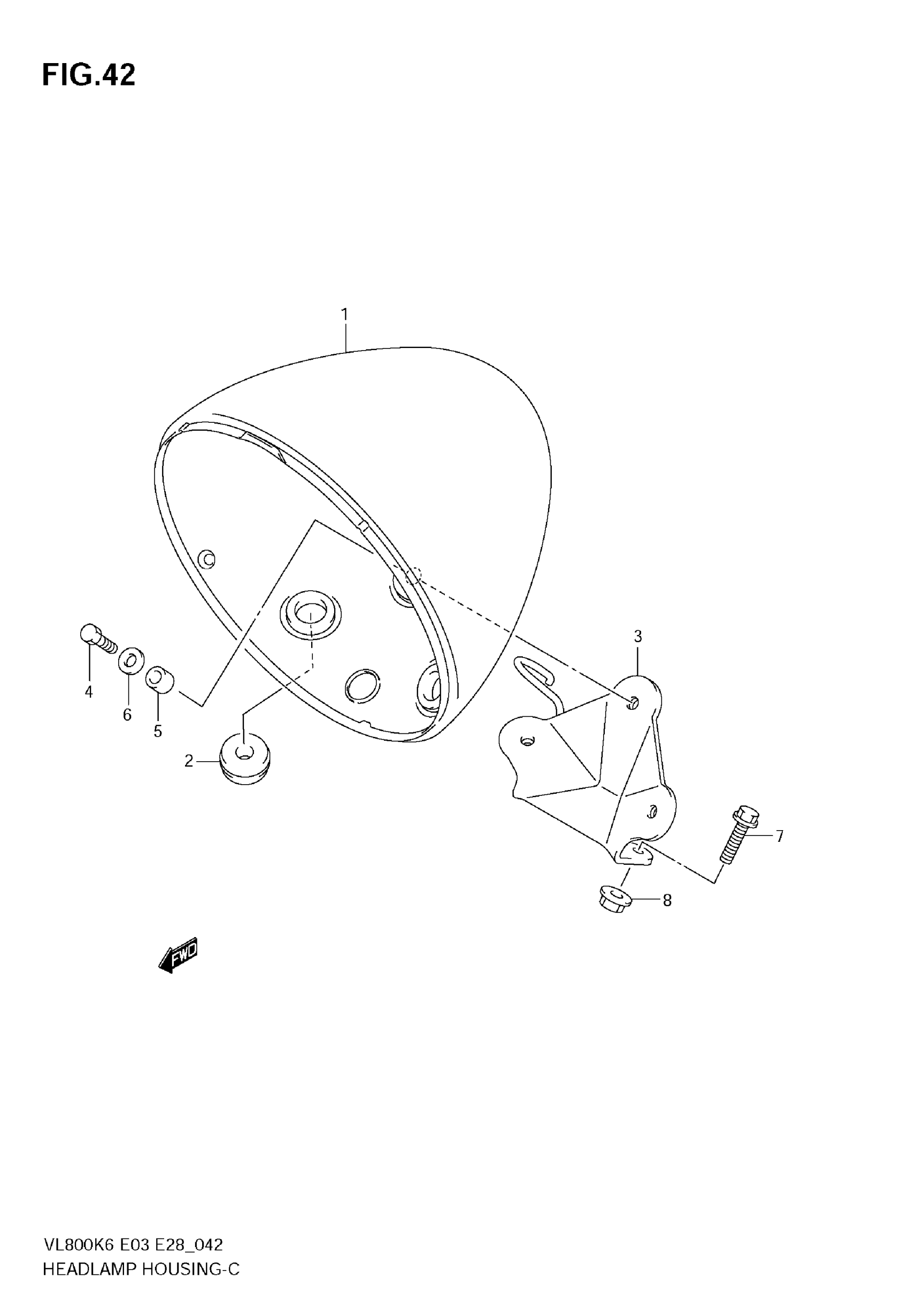

Find the part on the Headlamp Housing diagram for your 2009 Suzuki VL800, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2009 Suzuki VL800 Headlamp Housing Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HOUSING, HEADLAMP | Includes Item(s) 2

51800-10FA0

1
Out of stock

2

CUSHION

09320-09010

3

$2.92

In stock

3

BRACKET

51850-41FA0

1
Out of stock

4

BOLT, HOUSING

01500-0625B

3
Out of stock

5

SPACER | MODEL K6/K7/K8

09180-06307

3
Out of stock

5

SPACER | MODEL K9

09180-06266

3
Out of stock

6

WASHER | MODEL K6/K7

09160-06077

3
Out of stock

6

WASHER | MODEL K8/K9

09160-06152

3
Out of stock

7

BOLT, BRACKET

01550-0825B

2
Out of stock

8

NUT

08319-3108B

2
Out of stock
