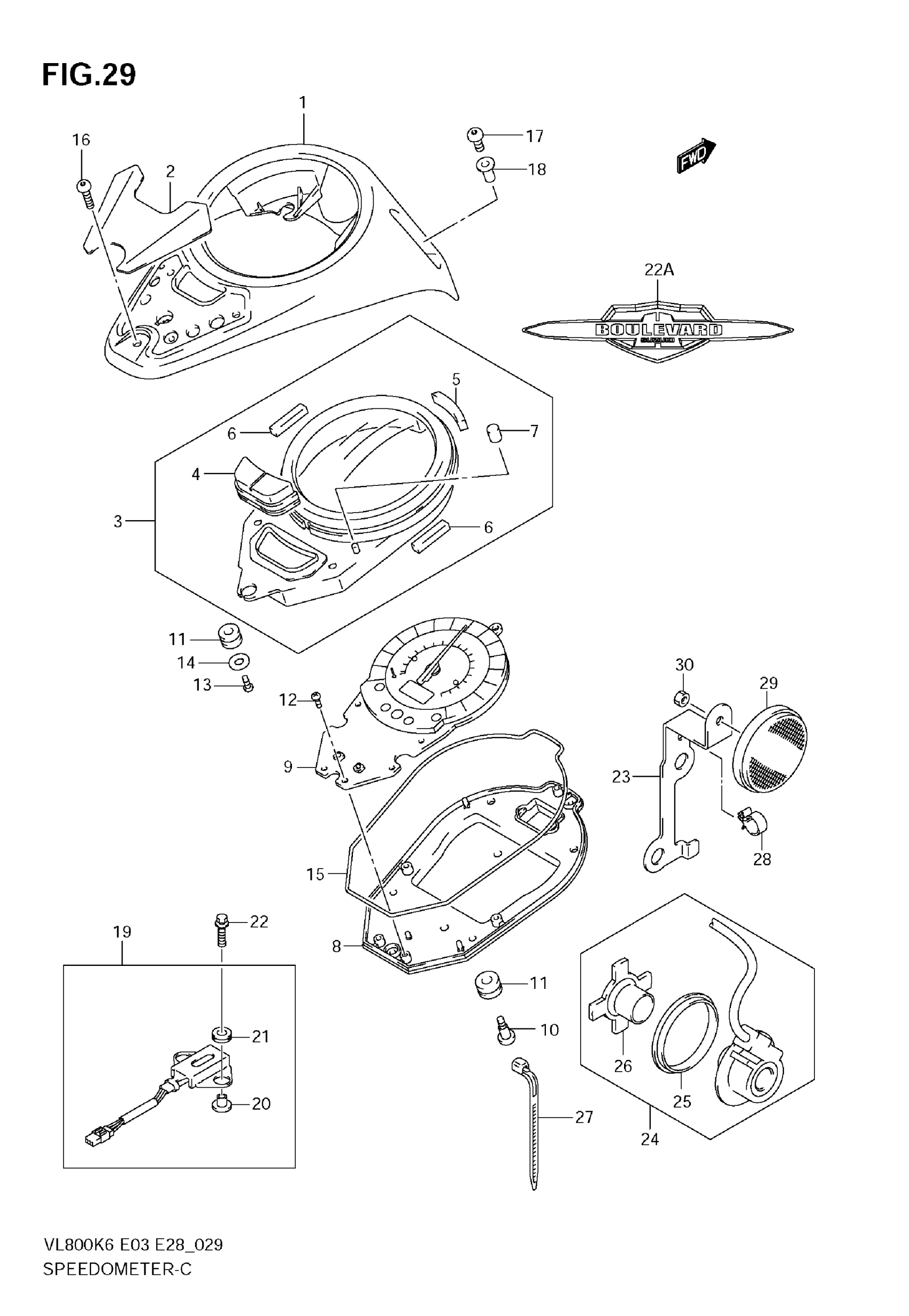

Suzuki VL800 (2009) SPEEDOMETER (VL800K6/TK6/CK6) Diagram

#

Description
Price

1

CASE ASSY

34150-41F00

$263.18

2

PLATE, DECORATION

34157-41FA0

$19.87

3

CASE ASSY | Includes Item(s) 4 - 7

34151-41F00

$225.82

4

SWITCH, SELECT

34141-41F00

Unavailable

5

CUSHION, NO.1

34196-41F00

Unavailable

6

CUSHION, NO.2

34196-41F10

Unavailable

7

CUSHION, NO.4

34961-41F00

Unavailable

8

CASE, LOWER

34152-41F00

Unavailable

9

SPEEDOMETER (MILE/KILO) | VL800K6 E3,E33

34120-41FF1

Unavailable

9

SPEEDOMETER (MILE/KILO) | VL800TK6/CK6 E3,E33

34120-41FK1

Unavailable

9

SPEEDOMETER (KILO) | VL800CK6 E28

34120-41FE1

Unavailable

9

SPEEDOMETER (KILO) | VL800TK6/CK6 E28

34120-41FJ1

Unavailable

10

BOLT

34186-41F00

Unavailable

11

.CUSHION

34996-43410

$4.35

12

SCREW

34183-14F00

$3.03

13

SCREW

34149-16B00

$1.98

14

WASHER

34181-21D00

$7.63

15

GASKET, METER CASE

34153-41F00

$12.53

16

SCREW (5X14)

09139-05025

$2.05

17

SCREW (5X18)

09139-05032

$1.89

18

NUT

09159-05019

$7.14

19

RESISTOR ASSY | Includes Item(s) 20 - 21 This part replaces 36510-39F00.

36510-39F01

$72.30

20

SPACER (6.5X10X11.6)

09180-06319

$3.85

21

CUSHION

09320-10015

$2.54

22

BOLT (6X25)

09116-06047

Unavailable

22A

EMBLEM, BOULEVARD | VL800CK6

68281-41F10

$56.05

23

GUIDE | VL800K6/TK6

34938-41F30

Unavailable

23

GUIDE | VL800CK6

34938-41F50

Unavailable

24

SENSOR, SPEED | Includes Item(s) 25 - 26

34990-41F10

$249.50

25

SEAL

09286-44001

$11.67

26

MAGNET

34983-27G00

$32.36

27

CLAMP (L:145)

09407-14407

$3.57

28

CLIP, SENSOR LEAD

09403-06410

$2.53

29

REFLEX-REFLECTOR ASSY, FR SIDE

35950-14A00

$16.94

30

NUT This part replaces 08316-10053.

08316-1005A

$2.19
