2009 Suzuki VL800 Speedometer Diagram

← All diagrams

Find the part on the Speedometer diagram for your 2009 Suzuki VL800, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

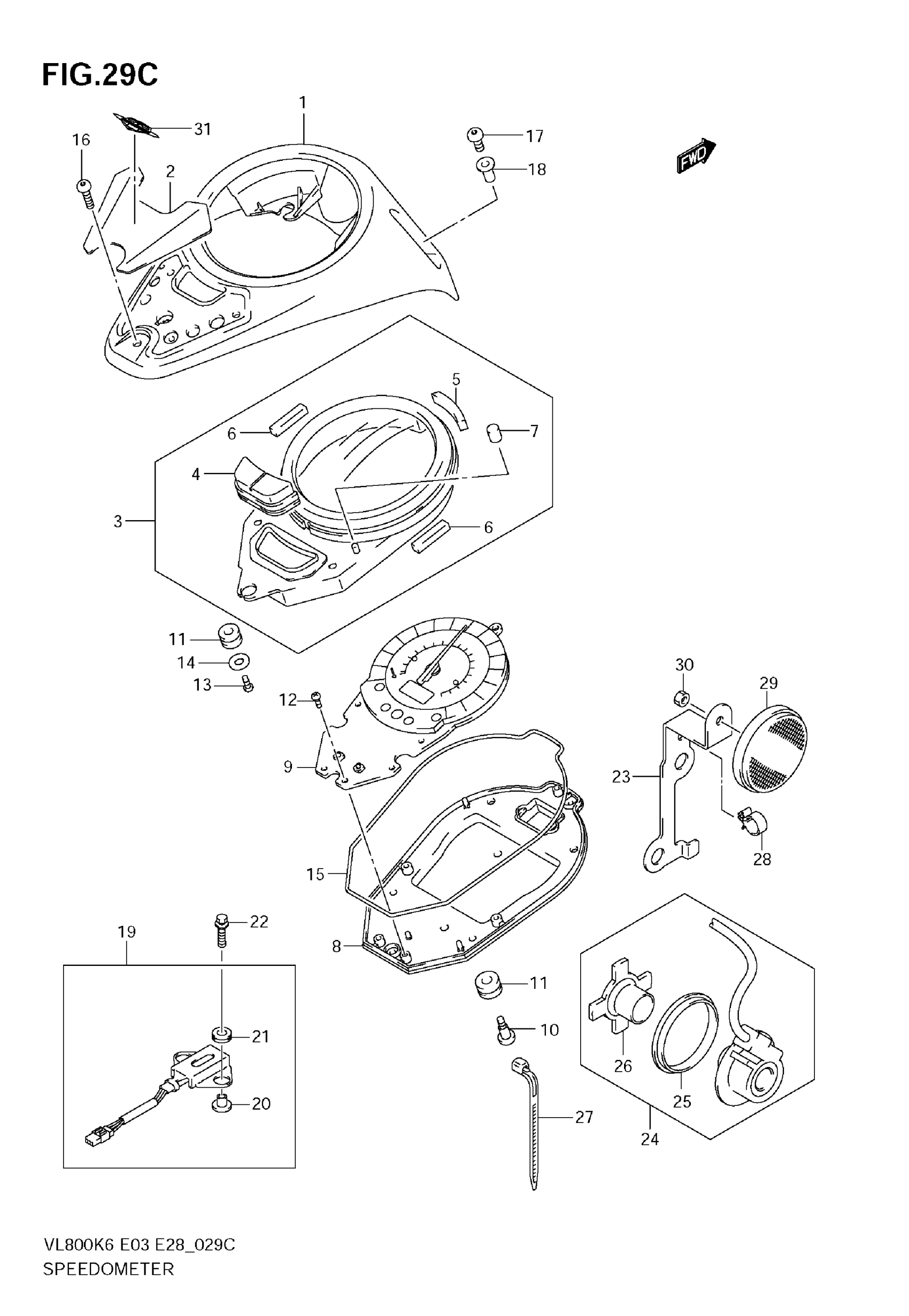

2009 Suzuki VL800 Speedometer Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CASE ASSY

34150-41F00

1

$292.88

In stock

2

PLATE, DECORATION

34157-41FG0

1
Out of stock

3

1

$251.28

In stock

4

SWITCH, SELECT

34141-41F00

1
Out of stock

5

CUSHION, NO.1

34196-41F00

1
Out of stock

6

CUSHION, NO.2

34196-41F10

2
Out of stock

7

CUSHION, NO.4

34961-41F00

2
Out of stock

8

CASE, LOWER

34152-41F00

1
Out of stock

9

SPEEDOMETER (MILE/KILO)

34120-41FP0

1
Out of stock

9

SPEEDOMETER (KILO) | E28

34120-41FN0

—
Out of stock

10

BOLT

34186-41F00

2
Out of stock

11

.CUSHION

34996-43410

3
Out of stock

12

SCREW

34183-14F00

11

$3.42

In stock

13

SCREW

34149-16B00

1

$2.25

In stock

14

WASHER

34181-21D00

1

$8.62

In stock

15

GASKET, METER CASE

34153-41F00

1

$14.15

In stock

16

SCREW (5X14)

09139-05025

1

$2.19

In stock

17

SCREW (5X18)

09139-05032

2

$2.39

In stock

18

NUT

09159-05019

2
Out of stock

19

RESISTOR ASSY | Includes Item(s) 20 - 21 This part replaces 36510-39F00.

36510-39F01

1
Out of stock

20

SPACER (6.5X10X11.6)

09180-06319

2

$4.92

In stock

21

CUSHION

09320-10015

2
Out of stock

22

BOLT (6X25)

09116-06047

2
Out of stock

23

GUIDE

34938-41F50

1
Out of stock

24

SENSOR, SPEED | Includes Item(s) 25 - 26

34990-41F10

1
Out of stock

25

SEAL

09286-44001

1
Out of stock

26

MAGNET

34983-27G00

1
Out of stock

27

CLAMP (L:145)

09407-14407

3
Out of stock

28

CLIP, SENSOR LEAD

09403-06410

1
Out of stock

29

2

$17.36

In stock

30

NUT

08316-1005B

1
Out of stock

31

EMBLEM, "BOULEVARD"

68281-41F10

1

$63.26

In stock
