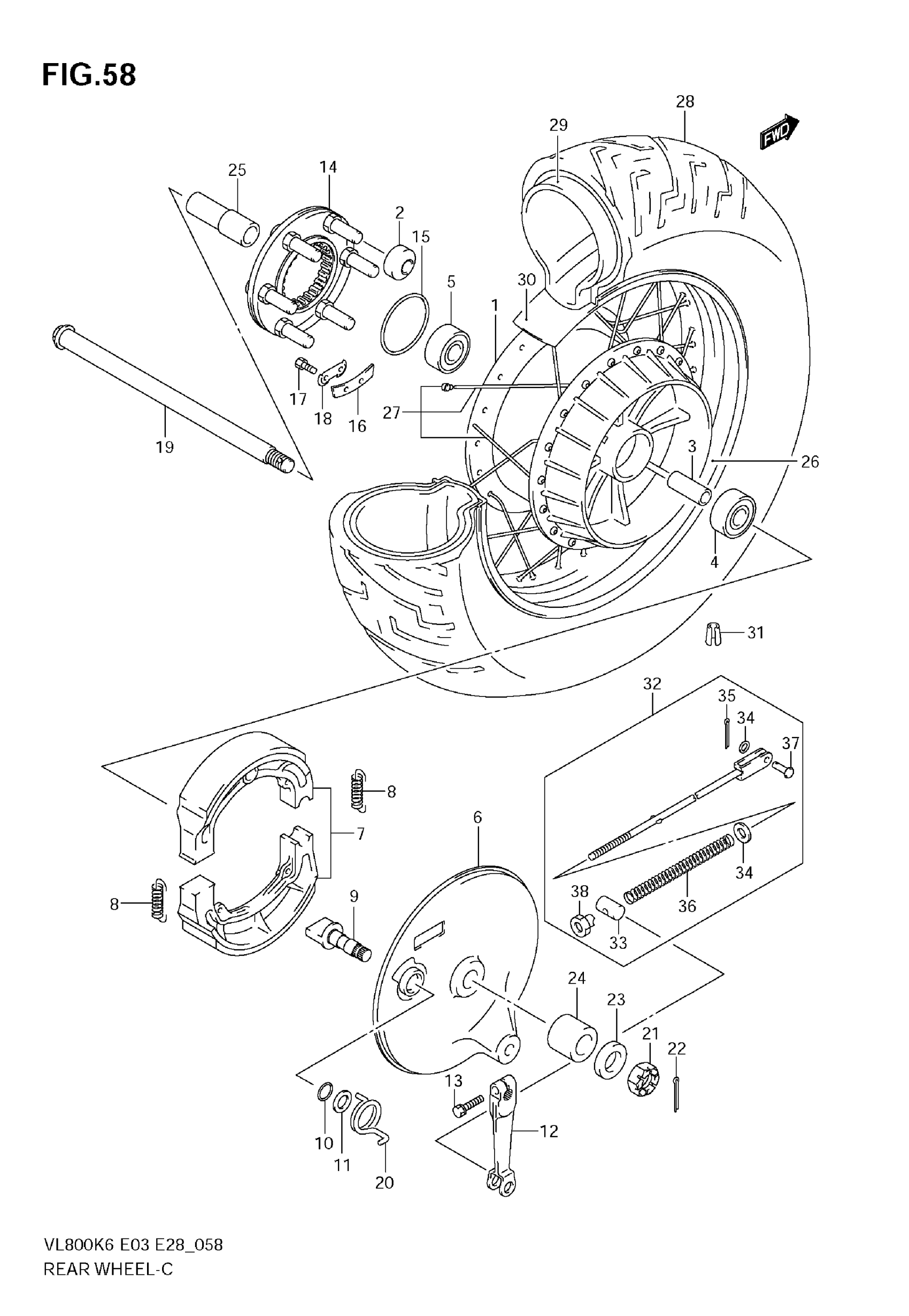

Suzuki VL800 (2009) REAR WHEEL (VL800K6/TK6/K7/TK7/K8/TK8/K9/TK9) Diagram

HUB, REAR WHEEL | Includes Item(s) 2

64110-41F00

$549.28

BUSHING (12X41X34)

09319-12019

$13.11

SPACER, RR HUB (17.5X25X80)

09180-17092

$25.33

BEARING This part replaces 08123-63037.

08123-6303B

$15.56

BEARING, LH

08143-63037

$22.58

PANEL,REAR BRK This part replaces 64210-38A40.

64210-38A70-13L

$303.80

SHOE SET, BRAKE

64400-38820

$48.36

SPRING, SHOE

55420-30000

$4.48

CAM, BRAKE

64441-38A20

$30.75

O RING (ID:14.8,D:2.40)

09280-15003

$1.76

WASHER

09160-15048

$2.56

LEVER, BRAKE CAM

64451-38A01

$57.67

BOLT

01570-06257

$3.03

JOINT, HUB DRIVEN

64680-45113

$275.40

O RING (ID:65,D:2.10)

09280-65003

$3.72

WASHER, THRUST

64677-45110

$2.92

BOLT (6X16)

09119-06049

$1.56

WASHER

09169-06030

$3.15

AXLE, REAR (L:302) | MODEL K6/K7/K8

64711-19F10

$81.22

AXLE, REAR (L:302) | MODEL K9

64711-19F00

$84.32

SPRING, CAM

09448-33006

$9.23

NUT | MODEL K6/K7/K8

09141-16007

$8.75

NUT | MODEL K9

08319-2116A

$9.00

PIN, REAR AXLE | MODEL K6/K7/K8

04111-4030A

$1.49

WASHER

09160-17050

$2.45

SPACER, RH

64741-41F00

$22.75

SPACER, LH

64772-34201

$23.07

RIM, WHEEL, 15M/CXMT4.00 FE

65311-41F00

$360.90

SPOKE SET, REAR WHEEL

65320-41F00

$127.16

TIRE (170/80-15M/C 77H) | VL800K6/K7/K8/K9 This part replaces 65100-41F00.

65100-41F01

$230.03

TIRE,REAR (170/80-15M/C 77H) | VL800TK6/TK7/TK8/TK9 This part replaces 65100-41F10.

65100-41F11

$269.30

TUBE ASSY,WHEEL INNER This part replaces 65200-41F00.

65200-41F01

$56.70

PROTECTOR, WHEEL INNER TUBE This part replaces 65261-41F00.

65261-41F10

$7.58

BALANCER WHEEL (15G)

55411-26G00

$7.73

BALANCER WHEEL (30G)

55413-41F00

$7.50

ROD ASSY, REAR BRAKE | Includes Item(s) 33 - 38

43300-41F00

$27.95

PIN, REAR BRAKE ROD

09209-13018

$3.42

WASHER

08322-0106B

$2.26

PIN, COTTER

04111-2015A

$1.49

SPRING

09440-09004

$2.20

PIN

09200-06013

$2.00

NUT

09150-06010

$3.10
