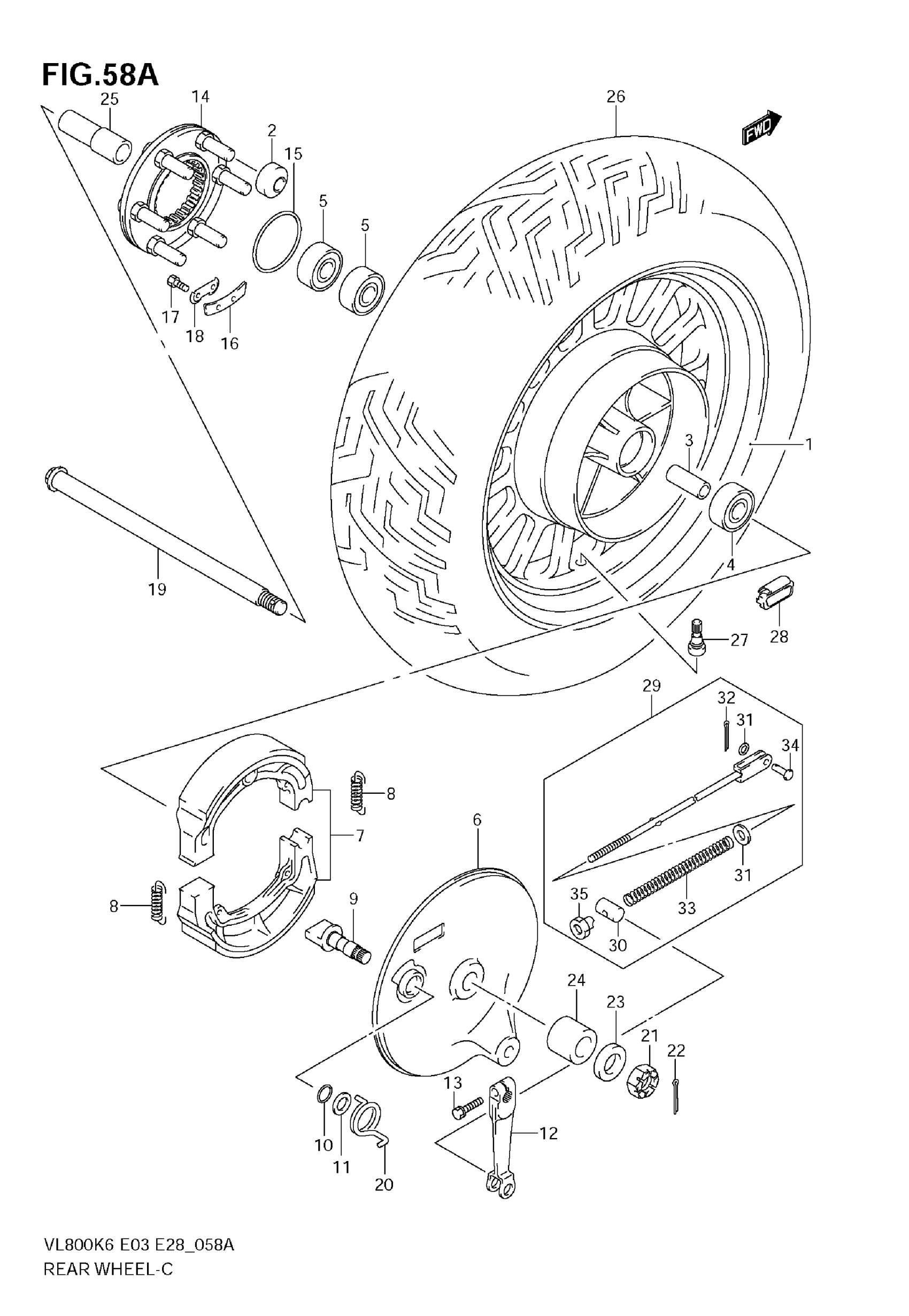

Suzuki VL800 (2009) REAR WHEEL (VL800CK6/CK7/CK8/CK9) Diagram

#

Description
Price

1

WHEEL, REAR (15M/CXMT4.00) | Includes Item(s) 2

64150-41F00-20H

$1,430.52

2

BUSHING (12X41X34)

09319-12019

$13.11

3

SPACER, RR HUB

09180-17112

Unavailable

4

BEARING This part replaces 08123-63037.

08123-6303B

$15.56

5

BEARING, LH

08143-63037

$22.58

6

PANEL, REAR BRAKE ANCHOR This part replaces 64210-38A60.

64210-38A70-20H

$303.87

7

SHOE SET, BRAKE

64400-38820

$48.36

8

SPRING, SHOE

55420-30000

$4.48

9

CAM, BRAKE

64441-38A20

$30.75

10

O RING (ID:14.8,D:2.40)

09280-15003

$1.76

11

WASHER

09160-15048

$2.56

12

LEVER, BRAKE CAM

64451-38A01

$57.67

13

BOLT

01570-06257

$3.03

14

JOINT, HUB DRIVEN

64680-45113

$275.40

15

O RING (ID:65,D:2.10)

09280-65003

$3.72

16

WASHER, THRUST

64677-45110

$2.92

17

BOLT (6X16)

09119-06049

$1.56

18

WASHER

09169-06030

$3.15

19

AXLE, REAR (L:302) | MODEL K6/K7/K8

64711-19F10

$81.22

19

AXLE, REAR (L:302) | MODEL K9

64711-19F00

$84.32

20

SPRING, CAM

09448-33006

$9.23

21

NUT | MODEL K6/K7/K8

09141-16007

$8.75

21

NUT | MODEL K9

08319-2116A

$9.00

22

PIN, REAR AXLE | MODEL K6/K7/K8

04111-4030A

$1.49

23

WASHER

09160-17050

$2.45

24

SPACER, RH

64741-41F00

$22.75

25

SPACER, LH

64772-34201

$23.07

26

TIRE,RR(170/80 | GS-23R D This part replaces 65110-41F20.

65110-41F21

Unavailable

27

VALVE ASSY, WHEEL RIM

43130-24A00

$8.85

28

BALANCER, WHEEL NO.1

43222-73H10

$5.82

28

BALANCER, WHEEL NO.2

43224-73H10

$5.50

28

BALANCER, WHEEL NO.3

43226-73H10

$6.42

29

ROD ASSY, REAR BRAKE | Includes Item(s) 30 - 35

43300-41F00

$27.95

30

PIN, REAR BRAKE ROD

09209-13018

$3.42

31

WASHER

08322-0106B

$2.26

32

PIN, COTTER

04111-2015A

$1.49

33

SPRING

09440-09004

$2.20

34

PIN

09200-06013

$2.00

35

NUT

09150-06010

$3.10
