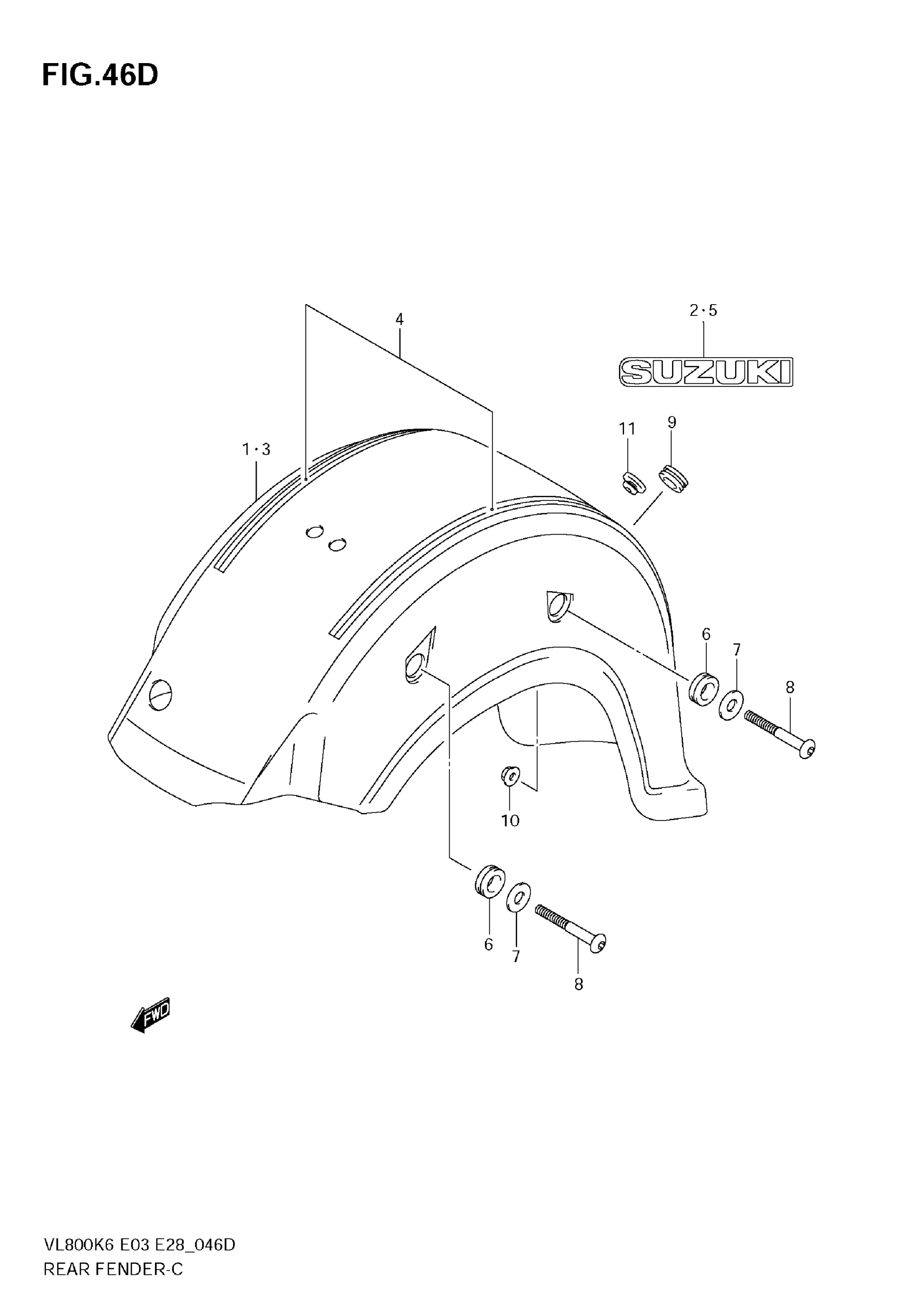

Suzuki VL800 (2009) REAR FENDER (VL800TK8) Diagram

#

Description

Price

1

FENDER,RR | Includes Item(s) 2 This part replaces 63110-41F70-YAY.

63110-41F71-YAY

$560.42

2

.EMBLEM,"SUZUKI" (SILVER) This part replaces 68271-34A00-YES.

68271-34A01-YES

$9.08

3

FENDER, REAR | Includes Item(s) 4 - 5

63110-41FH0-EUB

Unavailable

4

TAPE, SET

68170-41F70-EVV

Unavailable

5

EMBLEM,"SUZUKI" This part replaces 68271-34A00-YJH.

68271-34A01-YJH

Unavailable

6

CUSHION

47191-24F00

$4.86

7

WASHER

09160-15002

$1.70

8

BOLT

63161-41F00

$8.85

9

CUSHION, PILLION SEAT

09320-15008

$3.56

10

NUT

08316-1008B

$2.65

11

CUSHION, BRACE

09321-10007

$2.80
