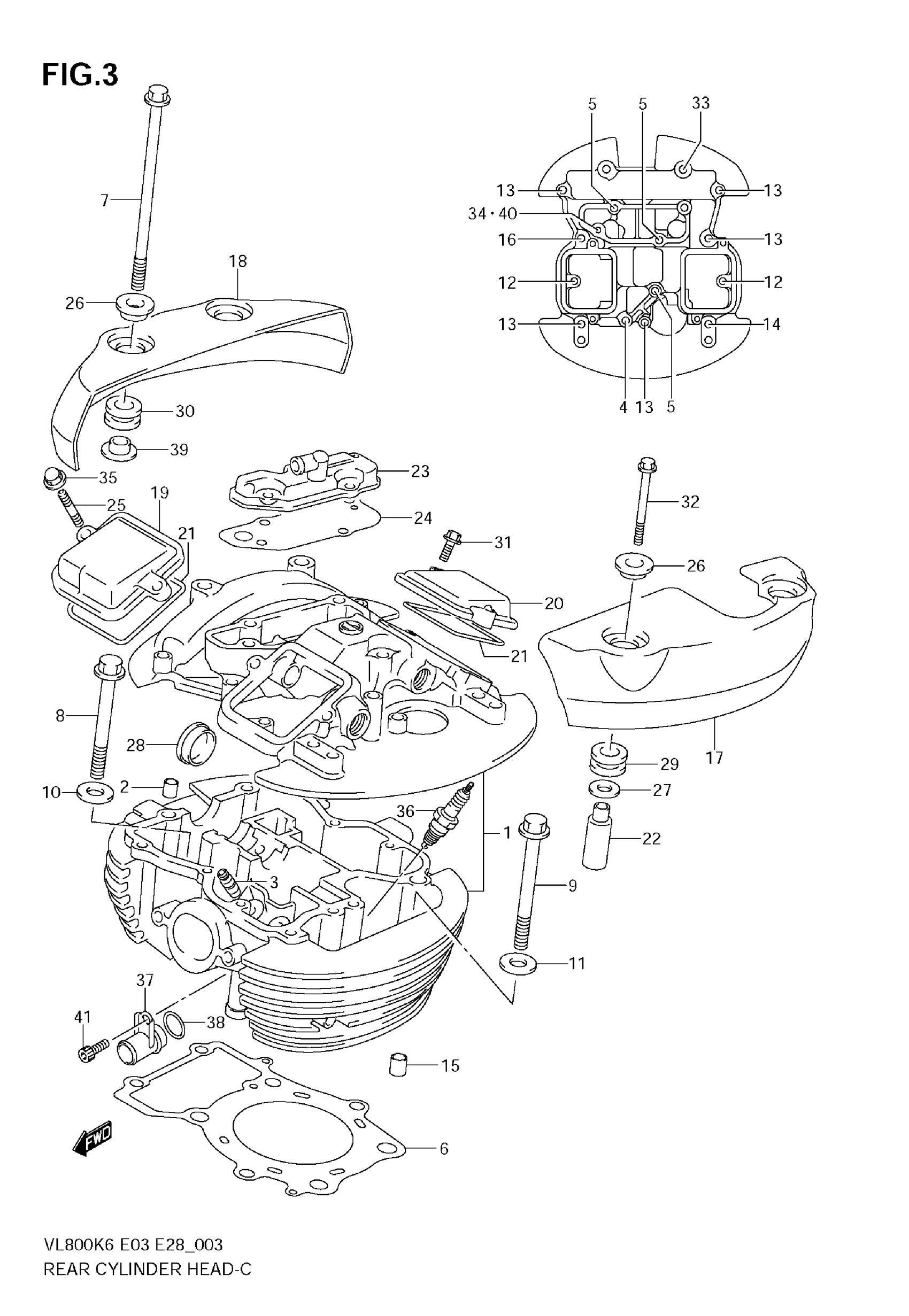

Suzuki VL800 (2009) REAR CYLINDER HEAD (MODEL K6/K7/K8) Diagram

#

Description
Price

1

HEAD ASSY, CYLINDER REAR | VL800K6

11103-41FA0

Unavailable

1

HEAD ASSY, CYLINDER REAR | VL800CK6 MODEL K7/K8; Includes Item(s) 2

11103-41FB0

Unavailable

2

PIN (11X14)

09206-11004

$5.36

3

GUIDE, VALVE (OS 0.3) | OPT This part replaces 11115-38A71.

11115-41F70

$40.73

4

BOLT (6X50)

09103-06101

$2.16

5

BOLT (6X55)

09103-06102

$2.10

6

GASKET, CYLINDER HEAD REAR

11142-41F00

$38.46

7

BOLT (L:250)

09103-08370

$16.20

8

BOLT (10X155)

09103-10133

$9.48

9

BOLT (10X165)

09103-10134

$9.48

10

WASHER (8.5X24X1.6)

09160-08130

$2.03

11

WASHER (10.5X22X2.3)

09160-10039

$2.26

12

BOLT (L:25)

01550-0625B

$2.42

13

BOLT (L:30)

01550-0630B

$2.85

14

BOLT (L:40)

01550-0640B

$2.22

15

KNOCK PIN

04211-13189

$2.19

16

BOLT (L:30)

07120-0630B

$3.49

17

CAP, CYLINDER HEAD COVER RR

11173-41FA0

Unavailable

18

CAP, CYLINDER HEAD COVER RR

11174-41F00

Unavailable

19

CAP, INSPECTION INTAKE

11175-38A11

$23.07

20

CAP, INSPECTION EXHAUST

11176-38A11

$23.07

21

GASKET, INSPECTION CAP

11177-38A00

$4.48

22

SPACER, HEAD COVER CAP

11179-10F10

$12.17

23

COVER, BREATHER | VL800K6

11186-41FA0

Unavailable

23

COVER, BREATHER | VL800CK6 MODEL K7/K8

11186-41FB0

Unavailable

24

GASKET, BREATHER COVER | VL800K6

11187-41F10

$7.35

24

GASKET, BREATHER COVER | VL800CK6 MODEL K7/K8

11187-41F20

$7.63

25

BOLT, INSPECTION CAP STUD

09108-06102

$4.08

26

WASHER, HEAD COVER CAP UPPER

09160-06084

$1.78

27

WASHER, HEAD COVER CAP LOWER

09160-09016

$2.30

28

PLUG, CYLINDER HEAD

09241-30004

$6.60

29

CUSHION, HEAD COVER CAP

09320-09016

$1.97

30

CUSHION, HEAD COVER BOLT

09320-13015

$2.85

31

..BOLT

01547-0620B

$2.45

32

BOLT, HEAD COVER CAP

01547-06507

$2.41

33

BOLT, BREATHER COVER

01550-0620B

$2.39

34

BOLT | VL800K6 This part replaces 01550-06203.

01550-0620A

$1.97

34

BOLT, BREATHER COVER (6X55) | VL800CK6 MODEL K7/K8

09103-06102

$2.10

35

NUT, INSPECTION CAP

09159-06093

Unavailable

36

SPARK PLUG, DPR7EA-9 (NGK)

09482-00354

$3.32

36

SPARK PLUG (NGK,DPR7EA-9) | !09482-00354 This part replaces 09482-00355.

09482-00354

$3.32

36

SPARK PLUG, DPR9EA-9 (NGK) | OPT

09482-00330

$3.11

36

SPARK PLUG, X27EPR-U9 (ND) | OPT

09482-00331

$5.28

36

SPARK PLUG, DPR8EA-9 (NGK) | OPT

09482-00334

$3.03

36

SPARK PLUG, X24EPR-U9 (ND) | OPT

09482-00335

$5.36

37

UNION, CYLINDER HEAD JOINT

17891-41F10

$15.63

38

O RING

09280-16005

$2.23

39

BUSH, HEAD COVER BOLT

09301-08007

$6.80

40

GASKET, 5.8X13X1.2

09168-06023

$2.35

41

.BOLT

07130-0612B

$3.05
