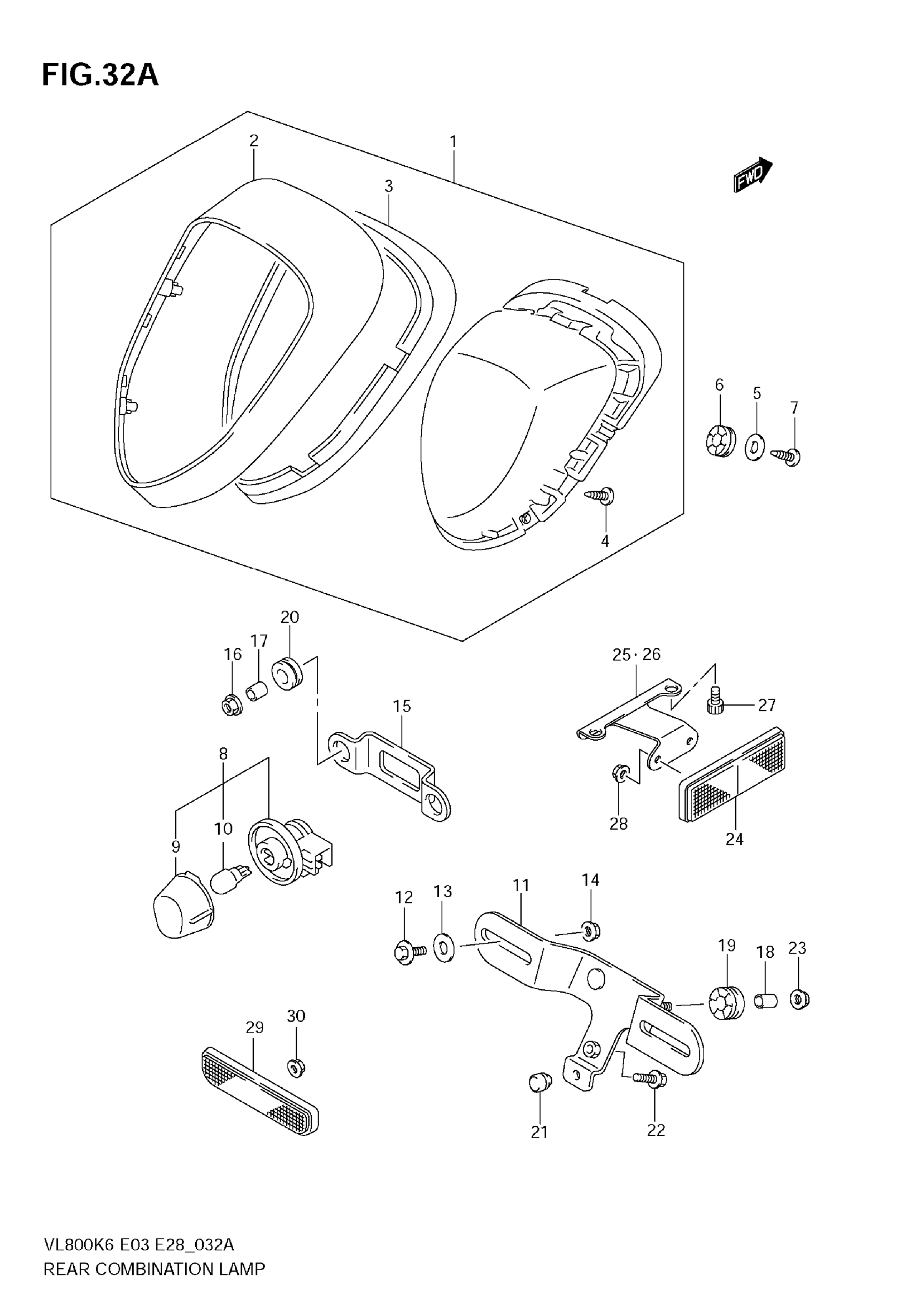

Suzuki VL800 (2009) REAR COMBINATION LAMP (MODEL K9) Diagram

#

Description
Price

1

LAMP ASSY,REAR | Includes Item(s) 2 - 4 This part replaces 35710-43H00.

35710-43HC0

$422.88

2

COVER

35717-43H00

Unavailable

3

LUBBER

35713-43H00

Unavailable

4

SCREW (3X12)

35623-41400

Unavailable

5

WASHER, RR COMB | 5.5X20X1.2

09160-05501

$1.84

6

CUSHION, RR COMB

35765-43H00

Unavailable

7

SCREW, RR COMB

03541-0512A

$1.49

8

LAMP ASSY, LICENSE | Includes Item(s) 9 - 10

35910-14F01

$30.22

9

LENS

35912-14F11

$8.28

10

.BULB (12V5W)

09471-12216

$5.36

11

BRACKET, LICENSE PLATE | E3,E33

35927-43H30

$27.20

11

BRACKET, LICENSE PLATE | E28

35927-43H50

Unavailable

12

BOLT, LICENSE PLATE | 6X16

09116-06168

$2.50

13

WASHER, LICENSE PLATE | 6.5X20X1.2

09160-06077

$1.91

14

NUT, LICENSE PLATE

08316-1006A

$2.19

15

BRACKET, LICENSE LAMP

35928-43H00

$11.47

16

NUT, LICENSE BKT

09159-05049

$2.30

17

SPACER, LICENSE BKT | 5.5X9.5X10

09180-05301

$2.42

18

SPACER, REAR TURN BRK | 6.5X10X12

09180-06290

$2.35

19

CUSHION, LICENSE PLATE BKT

09320-10051

$2.99

20

CUSHION This part replaces 09320-10054.

09320-10073

$2.27

21

CUSHION This part replaces 09321-06013.

09321-06036

$1.52

22

BOLT, LICENSE PLATE BKT

01550-0625B

$2.42

23

NUT, LICENSE PLATE BKT

08316-1006A

$2.19

24

REFLECTOR ASSY, RR SIDE

35970-07F01

$20.88

25

BRACKET, RR SIDE RR, R

35975-43H00

Unavailable

26

BRACKET, RR SIDE RR, L

35976-43H00

Unavailable

27

BOLT, RR SIDE RR BKT

07130-0612A

$2.50

28

NUT, RR SIDE RR

08316-1005A

$2.19

29

REFLECTOR ASSY, RR | E3,E33

35970-05H00

$29.33

29

REFLECTOR ASSY, RR | E28

35970-22H00

Unavailable

30

NUT, REAR RR

08316-1005A

$2.19
