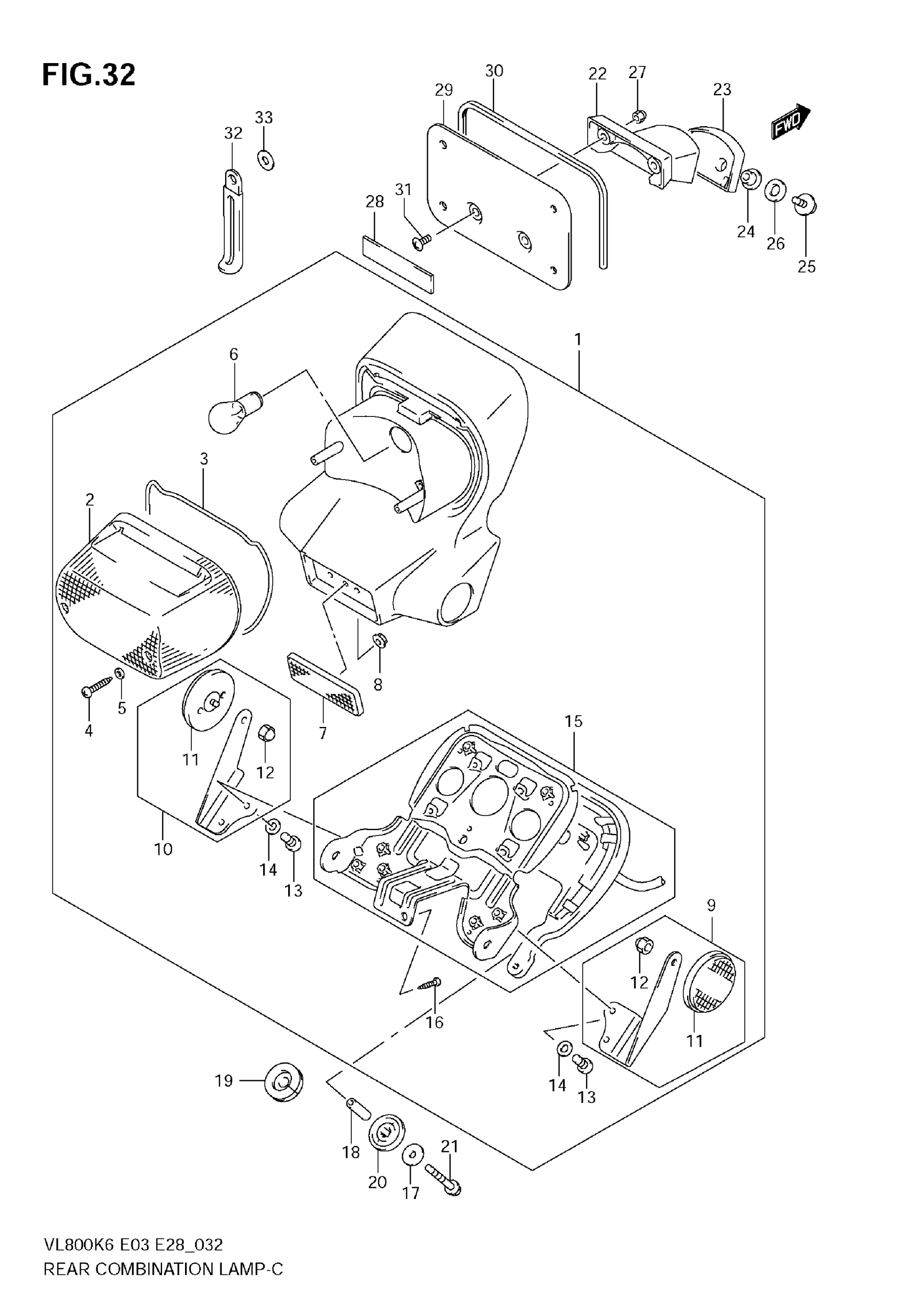

Suzuki VL800 (2009) REAR COMBINATION LAMP (MODEL K6/K7/K8) Diagram

#

Description
Price

1

LAMP ASSY, REAR COMB | Includes Item(s) 2 - 16

35710-41F61

$362.43

2

LENS

35712-10F30

$71.87

3

GASKET

35613-80F00

Unavailable

4

SCREW

03211-04207

$1.49

5

PACKING

35627-43010

$2.28

6

BULB (12V,21/5W) This part replaces 09471-12083.

09471-12128

$6.73

7

REFLECTOR ASSY, RR SIDE This part replaces 35970-07F00.

35970-07F01

$20.88

8

NUT

08316-2005A

$2.19

9

REFLEX REFLECTOR, RH

35078-41F30

Unavailable

10

REFLEX REFLECTOR, LH

35079-41F30

Unavailable

11

REFLEX REFLECTOR

35970-14A10

$18.80

12

NUT

08313-20057

$2.80

13

SCREW

02112-0512A

$1.49

14

LOCK WASHER

08321-0105A

$1.84

15

SOCKET & CORD ASSY

35718-41F00

$186.82

16

SCREW

03211-0516A

Unavailable

17

.WASHER (6.5X20X1.6)

09160-06088

$1.65

18

SPACER (6.5X9X23)

09180-06275

$4.68

19

GROMMET

09308-10017

$5.20

20

CUSHION

09320-09046

$7.82

21

BOLT

01550-0635B

$2.73

22

STAY, LICENSE PLATE HOLDER

35928-41F00

$124.28

23

CUSHION, HOLDER STAY

35929-41F00

$9.37

24

SPACER

09169-06077

$5.88

25

BOLT, LICENSE STAY

01550-0630B

$2.85

26

WASHER (6.5X18X1.6)

09160-06109

$1.49

27

NUT, LICENSE HOLDER

08313-10067

$1.84

28

PROTECTOR,20X90X1.0 (20X90X1.

33652-26E00

$3.70

29

HOLDER,LICENSE This part replaces 63461-41F30.

63461-41F31

$109.48

30

MOLDING, LICENSE HOLDER

94635-19C00

$8.53

31

SCREW, PLATE HOLDER

02142-0616B

$1.78

32

CLAMP (L:45)

09404-06429

$1.83

33

WASHER, CLUTCH RLSE NO.2 This part replaces 09160-06079.

09160-06052

$1.49
