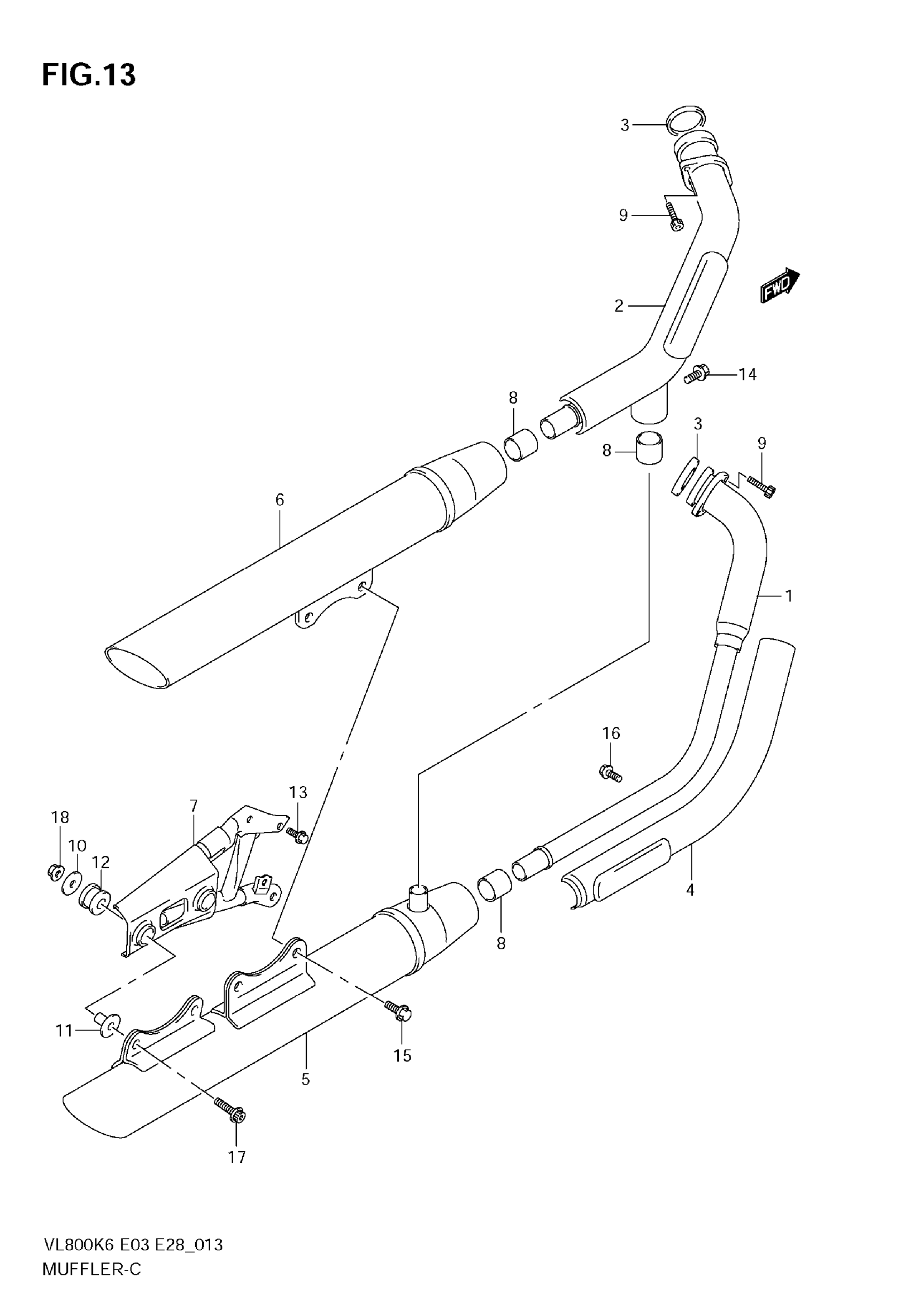

Suzuki VL800 (2009) MUFFLER (MODEL K6/K7/K8) Diagram

#

Description
Price

1

PIPE, EXHAUST RH

14150-41F02

Unavailable

2

PIPE, EXHAUST LH

14160-41F02

Unavailable

3

GASKET, EXHAUST

14181-10F00

$12.35

4

COVER, EXHAUST FRONT

14180-41F02

Unavailable

5

MUFFLER, FRONT

14310-41F60-H01

Unavailable

6

MUFFLER, REAR

14340-41F60-H01

Unavailable

7

BRACKET, MUFFLER SUPPORT

14410-41F01

$170.95

8

CONNECTOR, MUFFLER

14771-29E00

$26.67

9

BOLT, EXHAUST PIPE

09106-08165

$3.79

10

WASHER (8.5X33X1.5) This part replaces 09160-08140.

09160-08146

$2.66

11

SPACER

09180-08156

$6.35

12

CUSHION

09320-12049

$9.92

13

BOLT, MUFFLER SUPPORT BRACKET

01550-0816B

$2.80

14

BOLT, MUFFLER CONNECTOR

01550-0835B

$4.42

15

BOLT, MUFFLER SUPPORT

01550-0845B

$4.35

16

BOLT, EXHAUST COVER

07120-0616B

$2.56

17

BOLT, MUFFLER JOINT

09106-08174

$3.19

18

NUT

08361-2508A

$2.01
