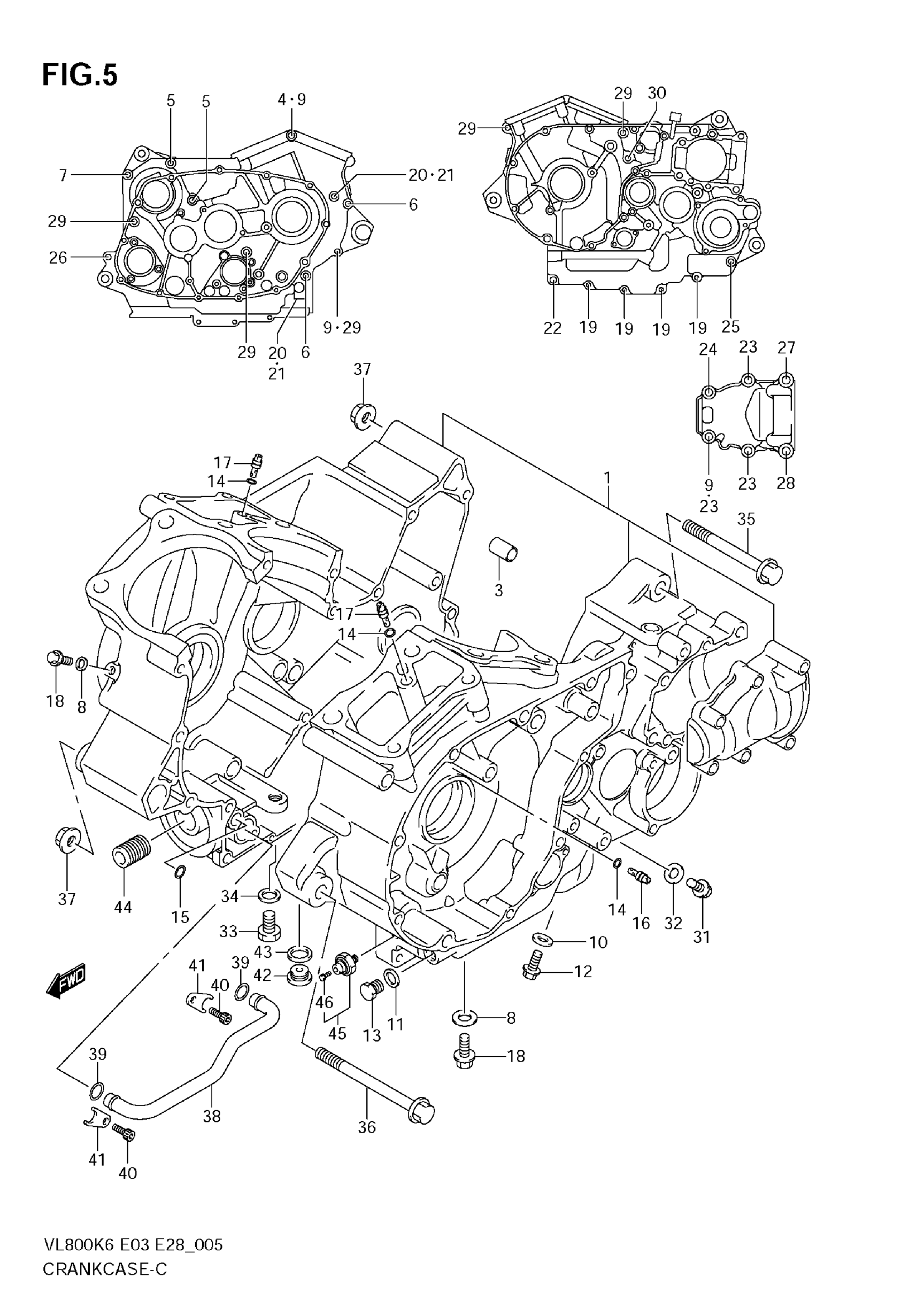

Suzuki VL800 (2009) CRANKCASE Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 32 This part replaces 11302-39821.

11302-39822

Unavailable

2

WASHER, CRANK THRUST (T:1.94) | NOT SHOWN

09160-48001

Unavailable

2

WASHER, CRANK THRUST (T:1.96) | NOT SHOWN

09160-48002

Unavailable

2

WASHER, CRANK THRUST (T:1.99) | NOT SHOWN

09160-48003

Unavailable

2

WASHER, CRANK THRUST (T:2.01) | NOT SHOWN

09160-48004

Unavailable

2

WASHER, CRANK THRUST (T:2.04) | NOT SHOWN

09160-48005

Unavailable

2

WASHER, CRANK THRUST (T:2.06) | NOT SHOWN

09160-48006

$32.98

2

WASHER, CRANK THRUST (T:2.09) | NOT SHOWN

09160-48007

Unavailable

2

WASHER, CRANK THRUST (T:2.11) | NOT SHOWN

09160-48008

Unavailable

2

WASHER, CRANK THRUST (T:2.14) | NOT SHOWN

09160-48009

Unavailable

2

WASHER, CRANK THRUST (T:2.16) | NOT SHOWN

09160-48010

$32.98

3

PIN

09206-11007

$2.63

4

BOLT (L:160)

09103-08405

Unavailable

5

BOLT (L:120)

09103-08406

Unavailable

6

BOLT (L:105)

09103-08179

Unavailable

7

BOLT (8X95)

09103-08164

$5.17

8

GASKET (5.8X13X1.2)

09168-06023

$2.01

9

GASKET (8.2X14X1)

09168-08016

$1.64

10

GASKET (10X14X3.6)

09168-10002

$1.96

11

GASKET (13.8X18.8X0.4)

09168-14002

$2.83

12

PLUG

09247-10008

$1.97

13

PLUG

09247-14026

$3.38

14

O RING (D:1.2,ID:4.0)

09280-04004

$1.76

15

O RING (D:1.9,ID:12.6)

09280-12009

$2.87

16

JET,T/M OIL GALLERY

09493-20014

$18.33

17

JET, OIL GALLERY

09493-28010

$18.00

18

BOLT

01550-0610B

$2.43

19

BOLT

01550-0640B

$2.40

20

BOLT

01550-0812B

$2.73

21

GASKET (8.2X14X1)

09168-08016

$1.64

22

BOLT

01550-0835B

$4.42

23

BOLT

01550-0840B

$4.45

24

BOLT

01550-0850B

Unavailable

25

BOLT

01550-0855B

$4.58

26

BOLT, CRANKCASE

01550-0860B

$5.27

27

BOLT

01550-0855B

$4.58

28

BOLT

01550-0865B

$3.07

29

BOLT (L:95)

09103-08105

$4.20

30

BOLT

01550-0875B

Unavailable

31

BOLT (L:12)

09103-08407

Unavailable

32

GASKET (8.2X14X1)

09168-08016

$1.64

33

PLUG, OIL DRAIN

09247-12011

$4.19

34

GASKET

09168-12002

$1.59

35

BOLT (10X135)

09103-10706

$12.48

36

BOLT (10X160)

09103-10705

Unavailable

37

NUT

09159-10113

$5.10

38

PIPE, OIL GALLERY

11451-38A00

Unavailable

39

O RING

09280-15008

$2.35

40

BOLT

09106-06075

$2.50

41

CLAMP

11461-38A00

Unavailable

42

PLUG, OIL GALLERY

09248-16013

$4.41

43

GASKET

09168-16002

$1.89

44

UNION,OIL STAND This part replaces 16591-06B00.

16591-06B01

$6.45

45

SWITCH ASSY,OIL PRESSURE | Includes Item(s) 46 This part replaces 37820-33D10.

37820-33D11

$27.58

46

BOLT

37822-33D00

$4.92
