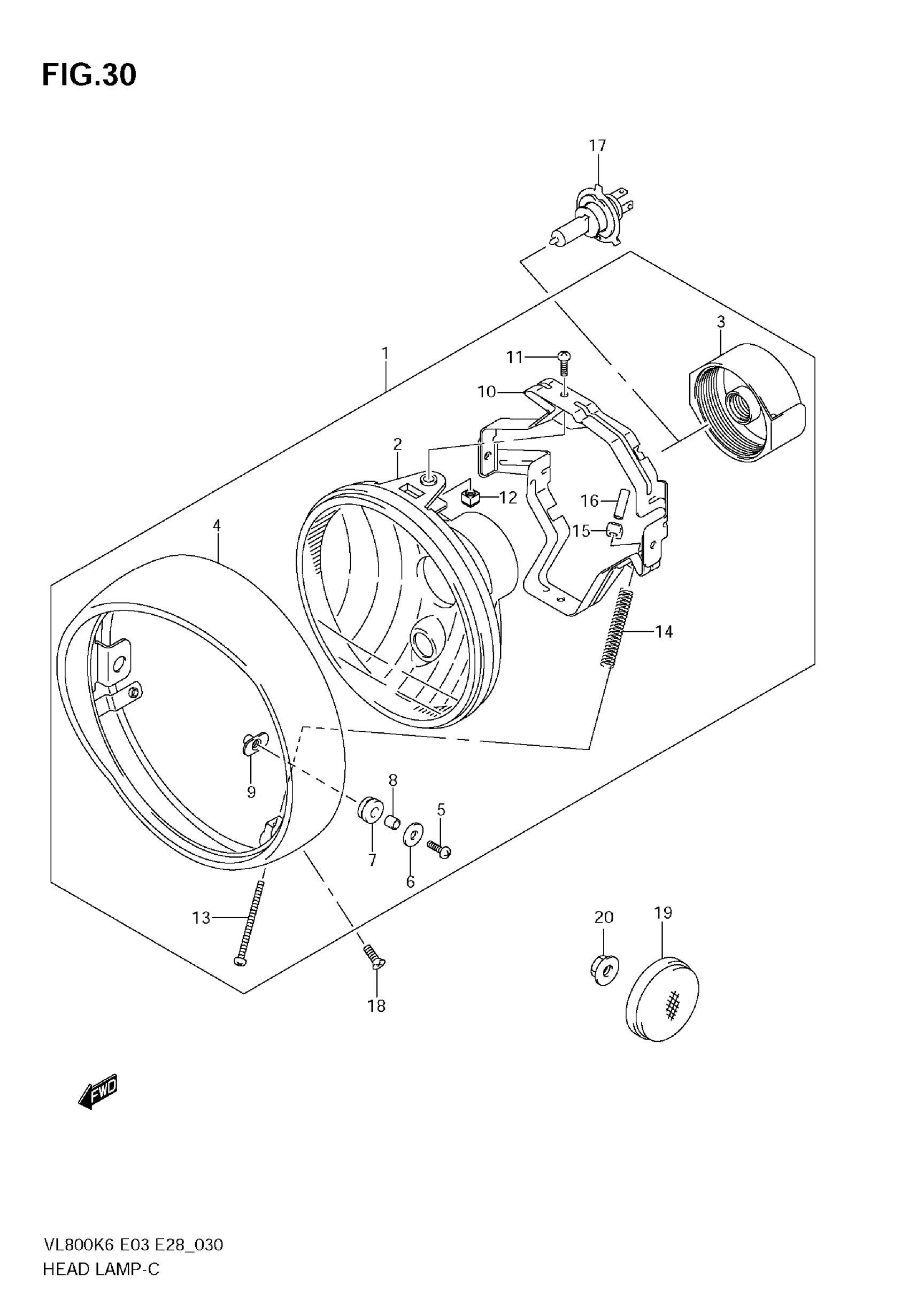

Suzuki VL800 (2009) HEADLAMP ASSY Diagram

#

Description
Price

1

HEADLAMP ASSY | MODEL K6

35100-10FB0-999

Unavailable

1

HEADLAMP ASSY | MODEL K7

35100-10FE0-999

$486.72

1

HEADLAMP ASSY | MODEL K8/K9; Includes Item(s) 2 - 16

35100-10FH0-999

$497.50

2

UNIT

35121-10FB0

$201.52

3

.COVER,SOCKET

35174-19F00

$30.22

4

RIM | MODEL K6/K7

35111-10FA0

$221.22

4

RIM | MODEL K8/K9

35111-10FG0

$236.72

5

SCREW

02122-0520A

$2.27

6

WASHER (5.5X18X1.0)

09160-05045

$1.93

7

CUSHION | MODEL K6/K7

35139-45230

$1.98

7

CUSHION | MODEL K8/K9

35139-38A60

$4.10

8

SPACER

35133-45230

$3.30

9

NUT

35155-10FA0

$5.98

10

BRACKET | MODEL K6

35130-10FA0

$63.90

10

BRACKET | MODEL K7/K8/K9

35130-10FD0

Unavailable

11

.SCREW (5X16)

35181-19F00

$3.25

12

NUT

35135-45900

$3.25

13

SCREW, ADJUSTER

35151-10FA0

$11.37

14

SPRING, ADJUSTER

35154-10FA0

$5.98

15

.NUT

35152-45600

$3.47

16

COVER

35158-10FA0

Unavailable

17

BULB (12V60/55W,H14)

09471-12060

$25.15

18

SCREW, HEADLAMP (5X8)

09126-05007

$1.93

19

REFLEX REFLECTOR ASSY, FR SID This part replaces 35950-14A10.

35950-14A11

$15.23

20

NUT

08316-1005B

$2.50
