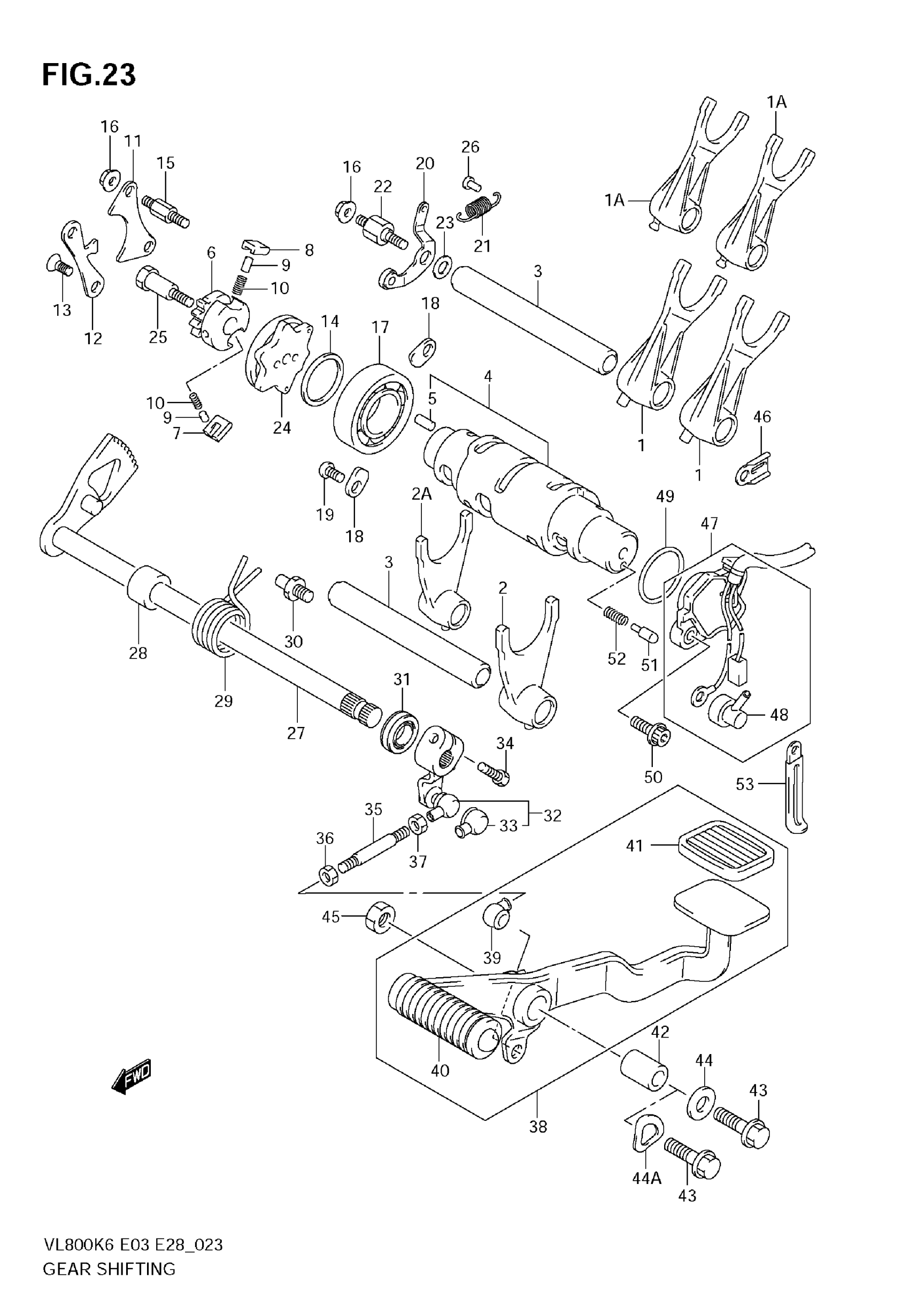

Suzuki VL800 (2009) GEAR SHIFTING Diagram

#

Description
Price

1

FORK, GEAR SHIFTING NO.1 | MODEL K6/K7/K8

25211-38A02

$70.63

1A

FORK, GEAR SHIFTING NO.1 | MODEL K9

25211-38A10

Unavailable

2

FORK, GEAR SHIFTING NO.2 | MODEL K6/K7/K8

25221-38A01

Unavailable

2A

FORK, GEAR SHIFTING NO.2 | MODEL K9

25221-38A10

Unavailable

3

SHAFT, GEAR SHIFTING FORK

25411-38A00

$29.25

4

CAM, GEAR SHIFTING | Includes Item(s) 5

25310-41F00

$265.62

5

PIN (4X13.8)

04221-04089

$1.49

6

GEAR, GEAR SHIFT CAM DRIVEN

25322-31310

$26.93

7

PAWL, GEAR SHIFT NO.1

25323-34201

$7.22

8

PAWL, GEAR SHIFT NO.2

25324-34201

$7.22

9

PIN

09261-05003

$1.54

10

SPRING

09440-04003

$1.54

11

LIFTER, PAWL

25331-38A00

Unavailable

12

GUIDE, CAM

25341-38A00

Unavailable

13

SCREW (6X12)

09126-06011

$2.03

14

WASHER (25X32X3)

09160-25059

$6.63

15

BOSS, SHIFT PAWL LIFTER

25332-38A10

Unavailable

16

NUT

08316-1006B

$2.50

17

BEARING (25X47X8)

09262-25006

$25.54

18

RETAINER, BEARING

24741-21A00

$2.81

19

SCREW (6X12)

09125-06110

$2.12

20

STOPPER, CAM

25350-38A00

Unavailable

21

SPRING

09443-09027

$3.93

22

SUPPORT, CAM STOPPER

25355-38A10

Unavailable

23

WASHER

08211-06141

$1.59

24

PLATE, STOPPER

25380-38A02

$17.62

25

PIN, SHIFT CAM

25312-38A00

$6.28

26

HOOK

09223-04004

Unavailable

27

SHAFT, GEAR SHIFTING

25510-38A00

$107.25

28

SPACER (12X20X15.3)

09180-12068

$3.16

29

SPRING

09444-26013

$3.10

30

STOPPER, ARM

25671-01011

$4.48

31

OIL SEAL (12X22X9) This part replaces 09285-12002.

09285-12006

$6.32

32

ARM,GEAR SHIFT LINK | Includes Item(s) 33 This part replaces 25520-38B00.

25520-38B01

$43.85

33

.COVER, DUST This part replaces 25526-47000.

25526-47001

$5.44

34

BOLT, GEAR ARM

01547-0620A

$2.03

35

ROD, GEAR SHIFT LINK

25525-41F00

$9.15

36

NUT, GEAR SHIFT

09140-06011

$1.49

37

.NUT

08310-00067

$2.13

38

LEVER ASSY,GEAR | MODEL K6/K7/K8 This part replaces 25600-41F10.

25600-41F11

$192.05

38

LEVER ASSY,GEAR SHIFT | MODEL K9; Includes Item(s) 39 - 41 This part replaces 25600-41F20.

25600-41F21

$138.28

39

.COVER, DUST This part replaces 25526-47000.

25526-47001

$5.44

40

RUBBER, GEAR FR

25652-10F00

$6.58

41

RUBBER, GEAR RR

43151-01400

$6.00

42

SPACER, GEAR SHIFT

25617-10F00

$14.02

43

BOLT, GEAR SHIFT

09103-10300

$6.28

44

WASHER, LOWER (10.5X24X2.3) | MODEL K6/K7/K8 This part replaces 09160-10127.

09160-10093

$2.35

44A

WASHER, GEAR SHIFT | MODEL K9

09164-18009

$2.38

45

NUT, GEAR SHIFT

08310-0010B

$2.70

46

CLAMP, OIL PRESS LEAD

31497-45000

$1.92

47

BASE ASSY, GEAR SHIFT TERM | Includes Item(s) 48 This part replaces 37730-41F01.

37730-41F02

$130.87

48

CAP, OIL PRESSURE

36618-43410

$2.90

49

O RING (D:2.4,ID:26.2)

09280-26005

$2.30

50

BOLT

07120-0516A

$2.28

51

CONTACT, SWITCH

09209-05011

$2.20

52

SPRING

09440-04010

$1.54

53

CLAMP (L:45)

09404-06429

$1.83
