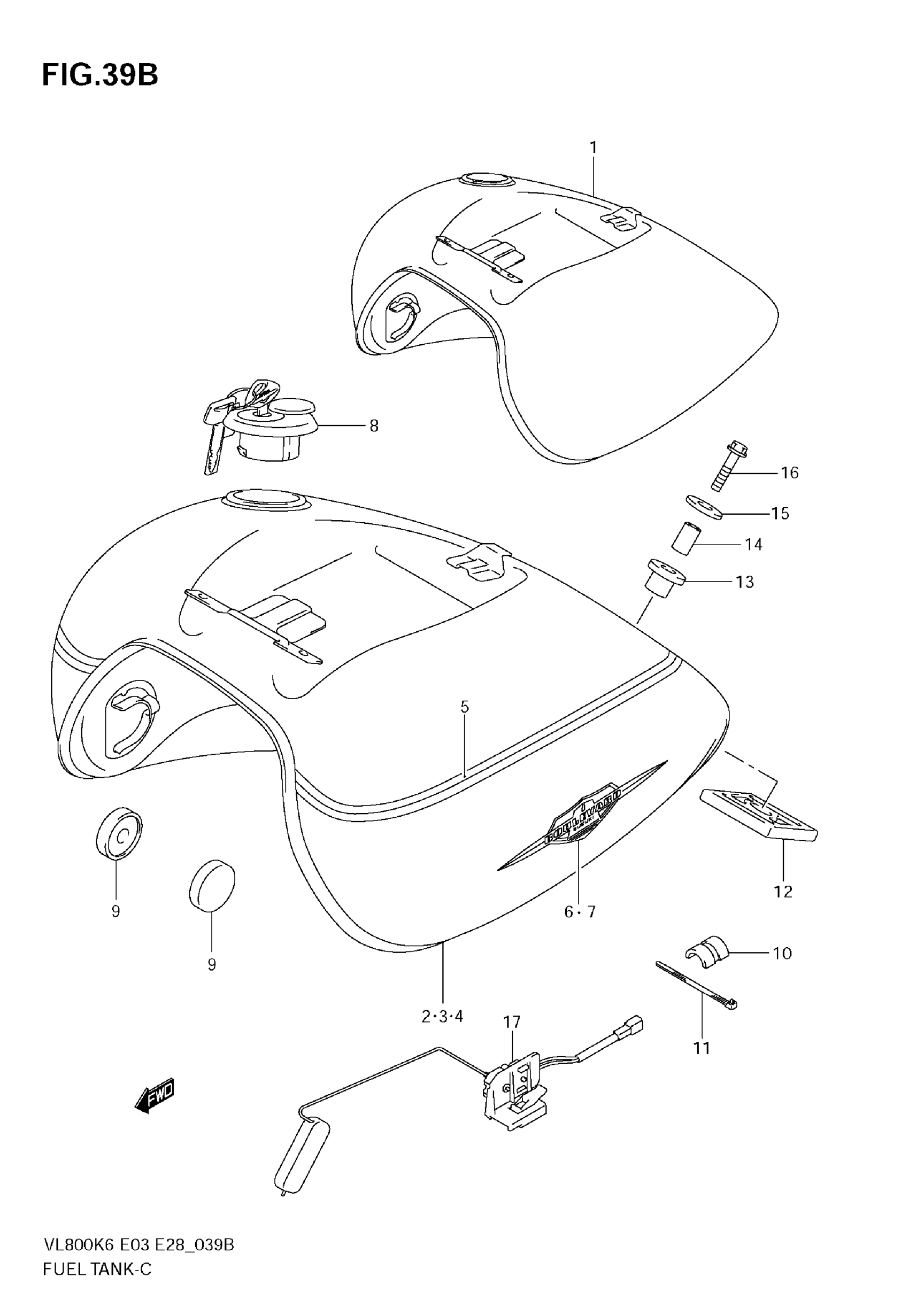

Suzuki VL800 (2009) FUEL TANK (VL800K7/TK7/K8/TK8) Diagram

#

Description
Price

1

TANK ASSY, FUEL (BLACK) | E3,E28 FOR YAY

49100-41F00-YAY

Unavailable

1

TANK ASSY, FUEL (BLACK) | E33 FOR YAY

49100-41F20-YAY

Unavailable

2

TANK ASSY, FUEL (RED) | MODEL K7 E3,E28 FOR CZW

49100-41FA0-YHL

Unavailable

2

TANK ASSY, FUEL (SILVER) | MODEL K7 E3,E28 FOR CZZ

49100-41FA0-YD8

Unavailable

2

TANK ASSY, FUEL (RED) | MODEL K7 E33 FOR CZW

49100-41FC0-YHL

Unavailable

2

TANK ASSY, FUEL (SILVER) | MODEL K7 E33 FOR CZZ

49100-41FC0-YD8

Unavailable

3

TANK ASSY, FUEL (GRAY) | VL800K8 E3,E28 FOR CRT

49100-41FA0-YHG

Unavailable

3

TANK ASSY, FUEL (BLUE) | VL800K8 E3,E28 FOR EUA

49100-41FA0-YBA

Unavailable

3

TANK ASSY, FUEL (GRAY) | VL800K8 E33 FOR CRT

49100-41FC0-YHG

Unavailable

3

TANK ASSY, FUEL (BLUE) | VL800K8 E33 FOR EUA

49100-41FC0-YBA

Unavailable

4

TANK ASSY, FUEL | VL800TK8,E3,E28

49100-41FG0-EUB

Unavailable

4

TANK ASSY, FUEL | VL800TK8,E33; Includes Item(s) 5

49100-41FH0-EUB

Unavailable

5

TAPE SET | VL800TK8

68110-41F30-EVV

Unavailable

6

EMBLEM, RH This part replaces 68111-41F30.

68111-41F31

$71.38

7

EMBLEM, LH This part replaces 68121-41F30.

68121-41F31

$71.38

8

CAP SET,FUEL TA | E3,E28 This part replaces 44200-41830.

44200-41832

$164.45

8

CAP SET,FUEL TA | E33 This part replaces 44200-41840.

44200-41842

$94.83

9

CUSHION This part replaces 09329-10007.

09329-10026

$2.23

10

CUSHION,FUEL TANK LWR This part replaces 44541-14F10.

44541-14F11

$4.62

11

CLAMP

09407-25402

$4.64

12

CUSHION,FUEL TANK RR LWR This part replaces 44542-41F00.

44542-41F01

$8.52

13

CUSHION,FUEL TANK RR UPR This part replaces 44541-41F01.

44541-41F02

$5.27

14

SPACER (8.2X12.5X23.5) This part replaces 09180-08057.

09180-08227

$2.06

15

WASHER (8.5X33X1.5) This part replaces 09160-08140.

09160-08146

$2.60

16

BOLT

01550-0835B

$3.95

17

GAUGE ASSY,FUEL This part replaces 34810-41F10.

34810-41F12

$112.19
