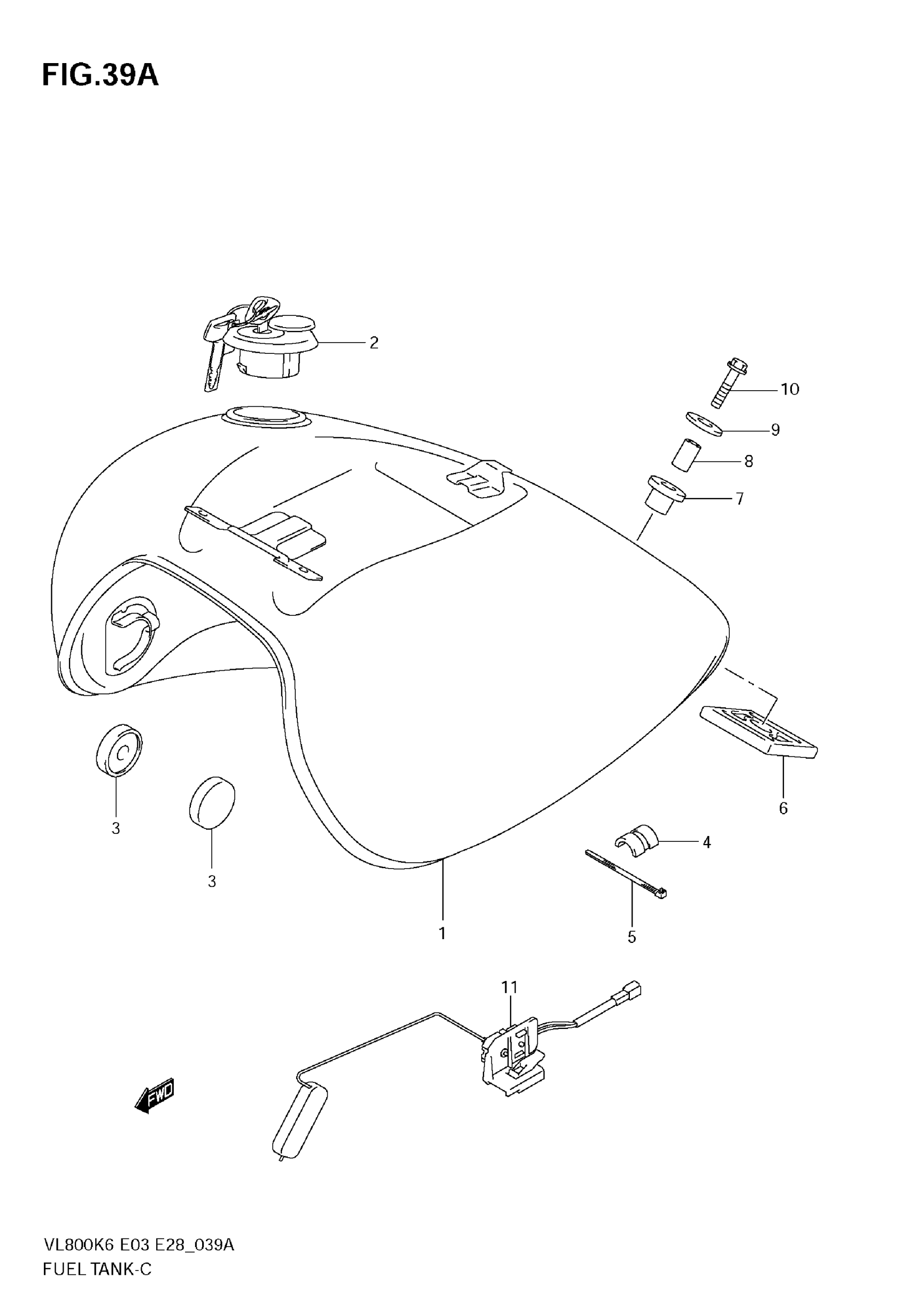

Suzuki VL800 (2009) FUEL TANK (VL800CK6/CK7/CK8) Diagram

#

Description
Price

1

TANK ASSY, FUEL (WHITE) | MODEL K6 E3,E28

49100-41F40-YC3

Unavailable

1

TANK ASSY, FUEL (WHITE) | MODEL K6 E33

49100-41F60-YC3

Unavailable

1

TANK ASSY, FUEL (GRAY) | MODEL K7 E3,E28

49100-41FD0-YHG

Unavailable

1

TANK ASSY, FUEL (GRAY) | MODEL K7 E33

49100-41FF0-YHG

Unavailable

1

TANK ASSY, FUEL (SILVER) | MODEL K8 E3,E28

49100-41FM0-YMD

Unavailable

1

TANK ASSY, FUEL (SILVER) | MODEL K8 E33

49100-41FJ0-YMD

Unavailable

2

CAP SET,FUEL TA | MODEL K6 E3,E28 This part replaces 44200-41810.

44200-41812

$130.25

2

CAP SET,FUEL TA | MODEL K7/K8 E3,E28 This part replaces 44200-41830.

44200-41832

$164.45

2

CAP SET,FUEL TA | MODEL K6 E33 This part replaces 44200-41820.

44200-41821

Unavailable

2

CAP SET,FUEL TA | MODEL K7/K8 E33 This part replaces 44200-41840.

44200-41842

$94.83

3

CUSHION This part replaces 09329-10007.

09329-10026

$2.23

4

CUSHION,FUEL TANK LWR This part replaces 44541-14F10.

44541-14F11

$4.62

5

CLAMP

09407-25402

$4.64

6

CUSHION,FUEL TANK RR LWR This part replaces 44542-41F00.

44542-41F01

$8.52

7

CUSHION,FUEL TANK RR UPR This part replaces 44541-41F01.

44541-41F02

$5.27

8

SPACER (8.2X12.5X23.5) This part replaces 09180-08057.

09180-08227

$2.06

9

WASHER (8.5X33X1.5) This part replaces 09160-08140.

09160-08146

$2.60

10

BOLT

01550-0835B

$3.95

11

GAUGE ASSY,FUEL This part replaces 34810-41F10.

34810-41F12

$112.19
