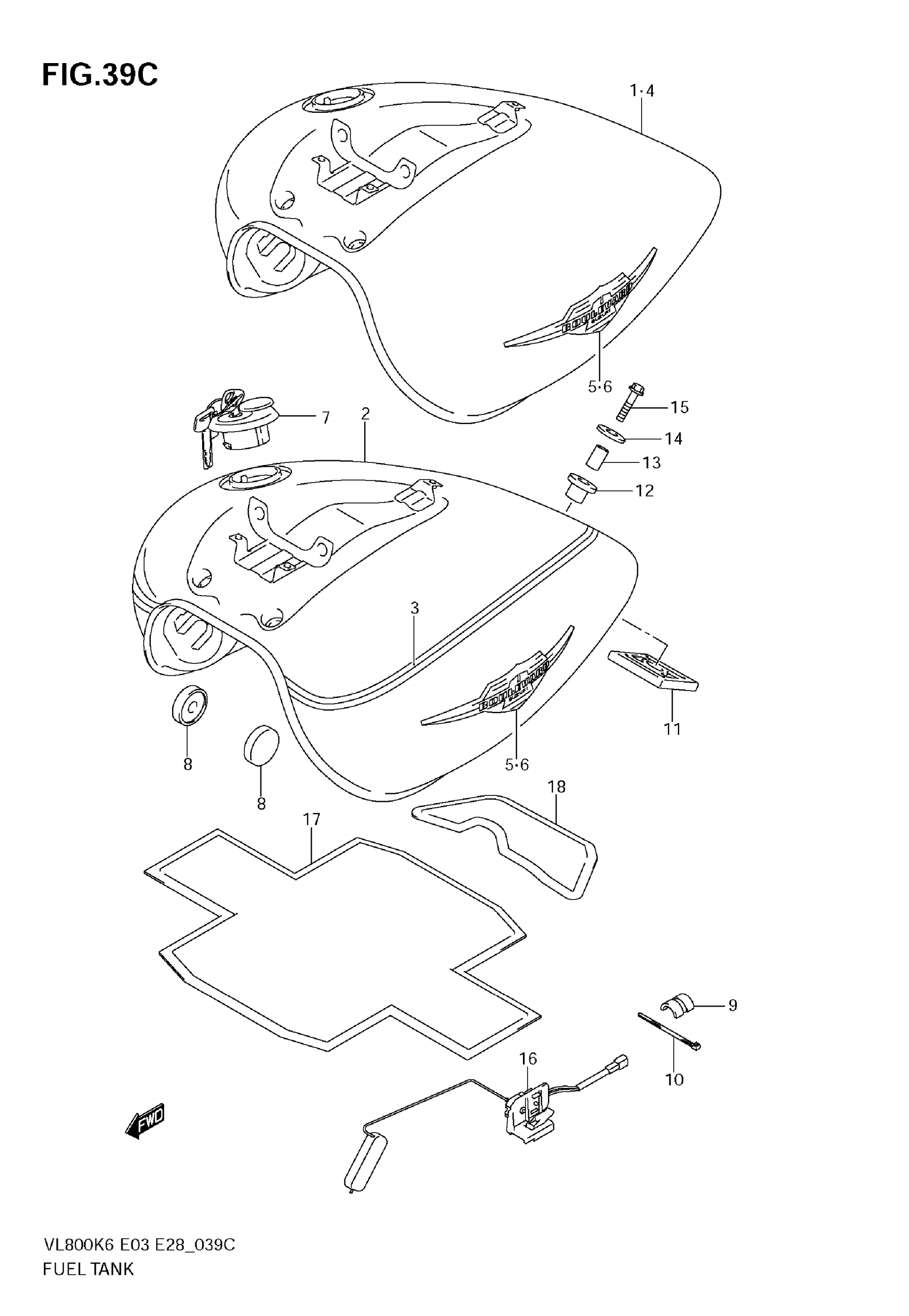

Suzuki VL800 (2009) FUEL TANK (MODEL K9) Diagram

#

Description
Price

1

TANK ASSY, FUEL (BLACK) | VL800 E3,E28

44100-43H00-YAY

$1,264.67

1

TANK ASSY, FUEL (RED) | VL800 E3,E28

44100-43H00-YMK

Unavailable

1

TANK ASSY, FUEL (BLACK) | VL800 E33

44100-43H20-YAY

Unavailable

1

TANK ASSY, FUEL (RED) | VL800 E33

44100-43H20-YMK

Unavailable

2

TANK ASSY, FUEL | VL800 E3,E28

44100-43HD0-FKE

Unavailable

2

TANK ASSY, FUEL | VL800 E3,E28

44100-43HD0-GDT

Unavailable

2

TANK ASSY, FUEL | VL800T E33

44100-43HE0-FKE

Unavailable

2

TANK ASSY, FUEL | VL800T E33; Includes Item(s) 3 - 3

44100-43HE0-GDT

Unavailable

3

TAPE SET | VL800T FOR FKE

68110-41F30-GKR

Unavailable

3

TAPE SET | VL800T FOR GDT

68110-41F30-GPC

Unavailable

4

TANK ASSY, FUEL (GRAY) | VL800C E3,E28 FOR GDV

44100-43HA0-YLF

Unavailable

4

TANK ASSY, FUEL (GREEN) | VL800C E3,E28 FOR GDU

44100-43HA0-YRE

Unavailable

4

TANK ASSY, FUEL (GRAY) | VL800C E33 FOR GDV

44100-43HC0-YLF

Unavailable

4

TANK ASSY, FUEL (GREEN) | VL800C E33 FOR GDU

44100-43HC0-YRE

Unavailable

5

EMBLEM, RH

68111-41F31

$71.38

6

EMBLEM, LH

68121-41F31

$71.38

7

CAP SET,FUEL TA | E3,E28 This part replaces 44200-41830.

44200-41832

$164.45

7

CAP SET,FUEL TA | E33 This part replaces 44200-41840.

44200-41842

$94.83

8

CUSHION This part replaces 09329-10007.

09329-10026

$2.23

9

CUSHION,FUEL TANK LWR This part replaces 44541-14F10.

44541-14F11

$4.62

10

CLAMP

09407-25402

$4.64

11

CUSHION,FUEL TANK RR LWR This part replaces 44542-41F00.

44542-41F01

$8.52

12

CUSHION,FUEL TANK RR UPR This part replaces 44541-41F01.

44541-41F02

$5.27

13

SPACER (8.2X12.5X23.5) This part replaces 09180-08057.

09180-08227

$2.06

14

WASHER

09160-08146

$2.60

15

BOLT (8X35)

01550-0835A

$3.04

16

GAUGE ASSY,FUEL This part replaces 34810-41F11.

34810-41F12

$112.19

17

SHIELD, HEAT NO.1

44192-39G00

$148.62

18

SHIELD, HEAT NO.2

44191-43H00

$87.70
