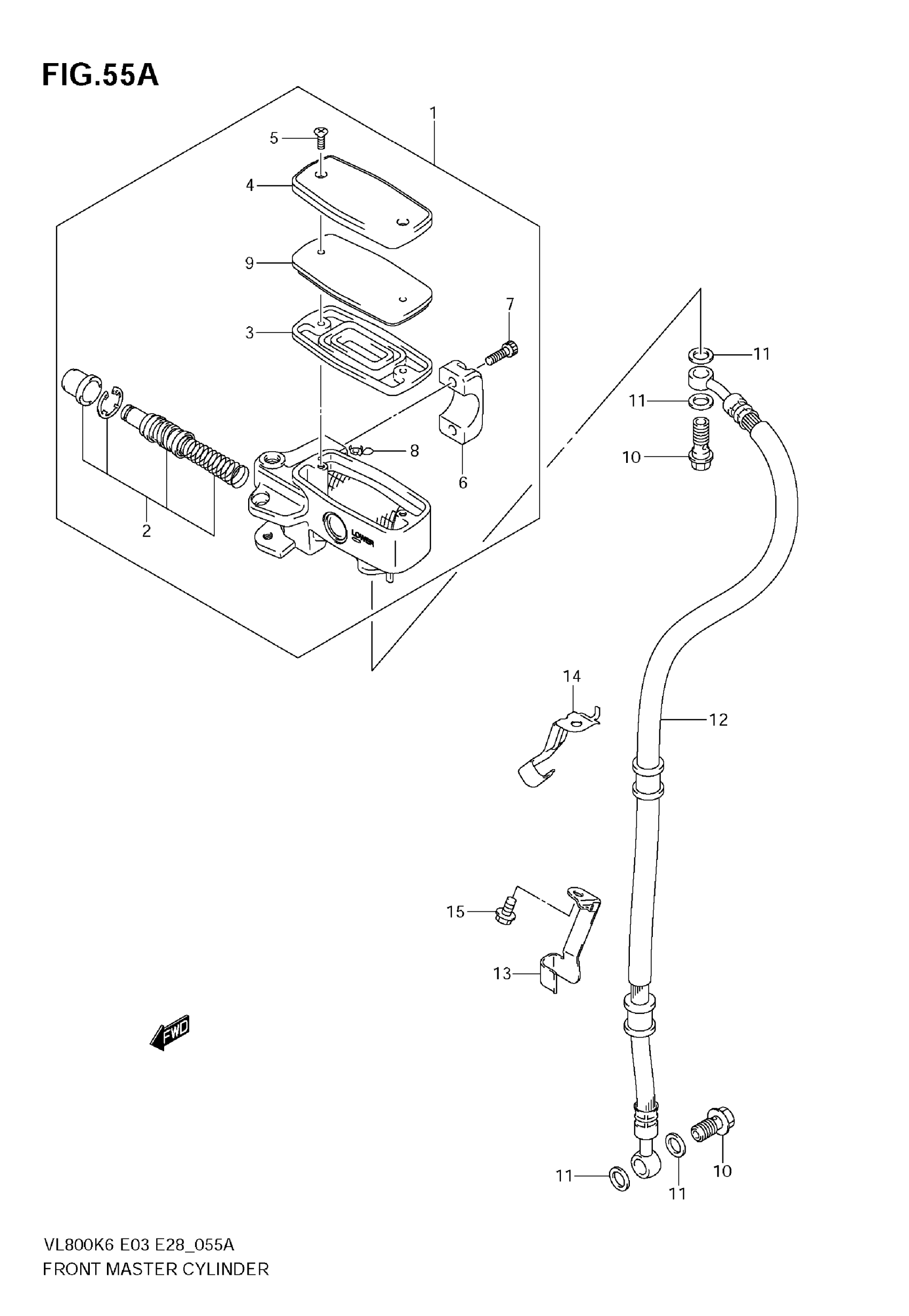

Suzuki VL800 (2009) FRONT MASTER CYLINDER (MODEL K7/K8/K9) Diagram

CYLINDER ASSY, FRONT MASTER | Includes Item(s) 2 - 9

59600-10F71

$424.60

PISTON/CUP SET

59600-04810

$45.20

DIAPHRAGM

59667-10F00

$10.10

CAP

59669-10F10

$56.93

SCREW

02122-04127

$1.97

HOLDER

59671-10F00

$49.18

BOLT

07130-06207

$3.04

PROTECTOR

59664-32F00

$11.68

PLATE

57437-10F00

$21.03

UNION | MODEL K6/K7 This part replaces 09360-10042.

09360-10062

$6.43

BOLT, LOWER | MODEL K8/K9

09360-10062

$6.43

WASHER (10X15X1.5)

09161-10009

$1.84

HOSE,FRONT BRAKE This part replaces 59480-41F10.

59480-41F11

$111.28

CLAMP, BRAKE HOSE UPPER | MODEL K6/K7/K8

59266-41F00

Unavailable

CLAMP, BRAKE HOSE UPPER | MODEL K9

59266-43H00

Unavailable

BOLT, CLAMP | MODEL K6/K7 This part replaces 01550-06123.

01550-0612A

$1.97

BOLT | MODEL K8/K9

01550-0612B

$2.39
