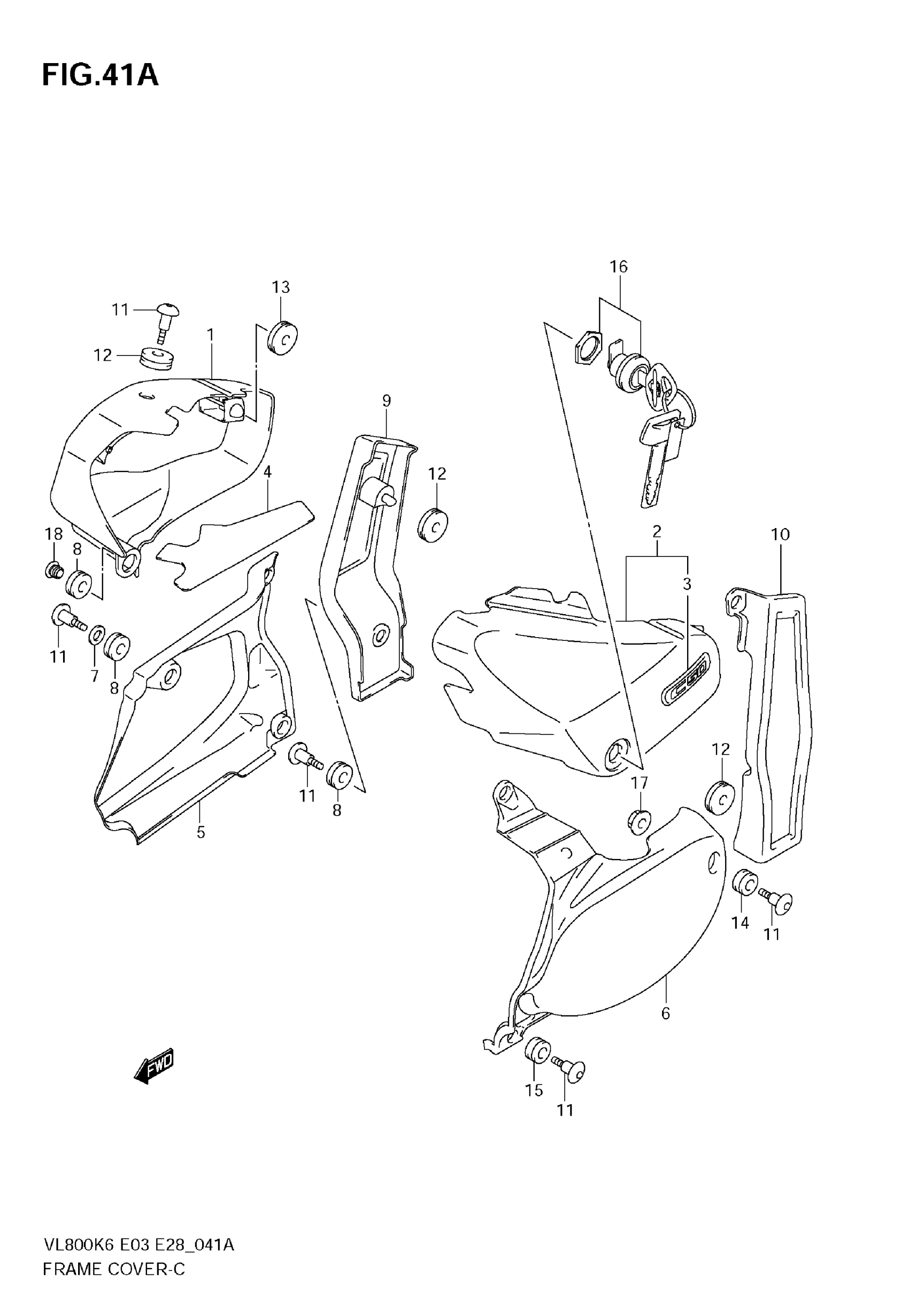

Suzuki VL800 (2009) FRAME COVER (VL800CK6) Diagram

#

Description
Price

1

COVER, FRAME RH (WHITE) | E3,E28

47110-41F81-YC3

Unavailable

1

COVER, FRAME RH (WHITE) | E33

47110-41F91-YC3

Unavailable

2

COVER, FRAME LH (WHITE) | Includes Item(s) 3

47210-41F80-YC3

Unavailable

3

EMBLEM, "C50" This part replaces 68131-41F40.

68131-41F41

$33.43

4

SHIELD, FRAME COVER RH

47166-41F00

$17.83

5

COVER, SIDE LOWER RH

47130-41F00

$267.82

6

COVER, SIDE LOWER LH

47231-41F00

$382.15

7

WASHER

09160-10123

$2.12

8

CUSHION (8.5X20X8) This part replaces 09320-08021.

09320-08510

$1.97

9

COVER, SIDE REAR RH (BLACK)

47141-41F01-019

$137.92

10

COVER, SIDE REAR LH (BLACK)

47241-41F00-019

$137.92

11

SCREW

09139-06126

$4.04

12

CUSHION

09320-08018

$3.04

13

CUSHION BOX REAR

09320-08028

$3.04

14

CUSHION

09320-09501

$2.03

15

CUSHION This part replaces 09320-09026.

09320-09062

$2.00

16

LOCK SET,COVER This part replaces 95700-07860.

95700-07861

$75.92

17

NUT This part replaces 08316-10063.

08316-1006B

$2.50

18

CAP This part replaces 09250-09001.

09250-09008

$1.54
