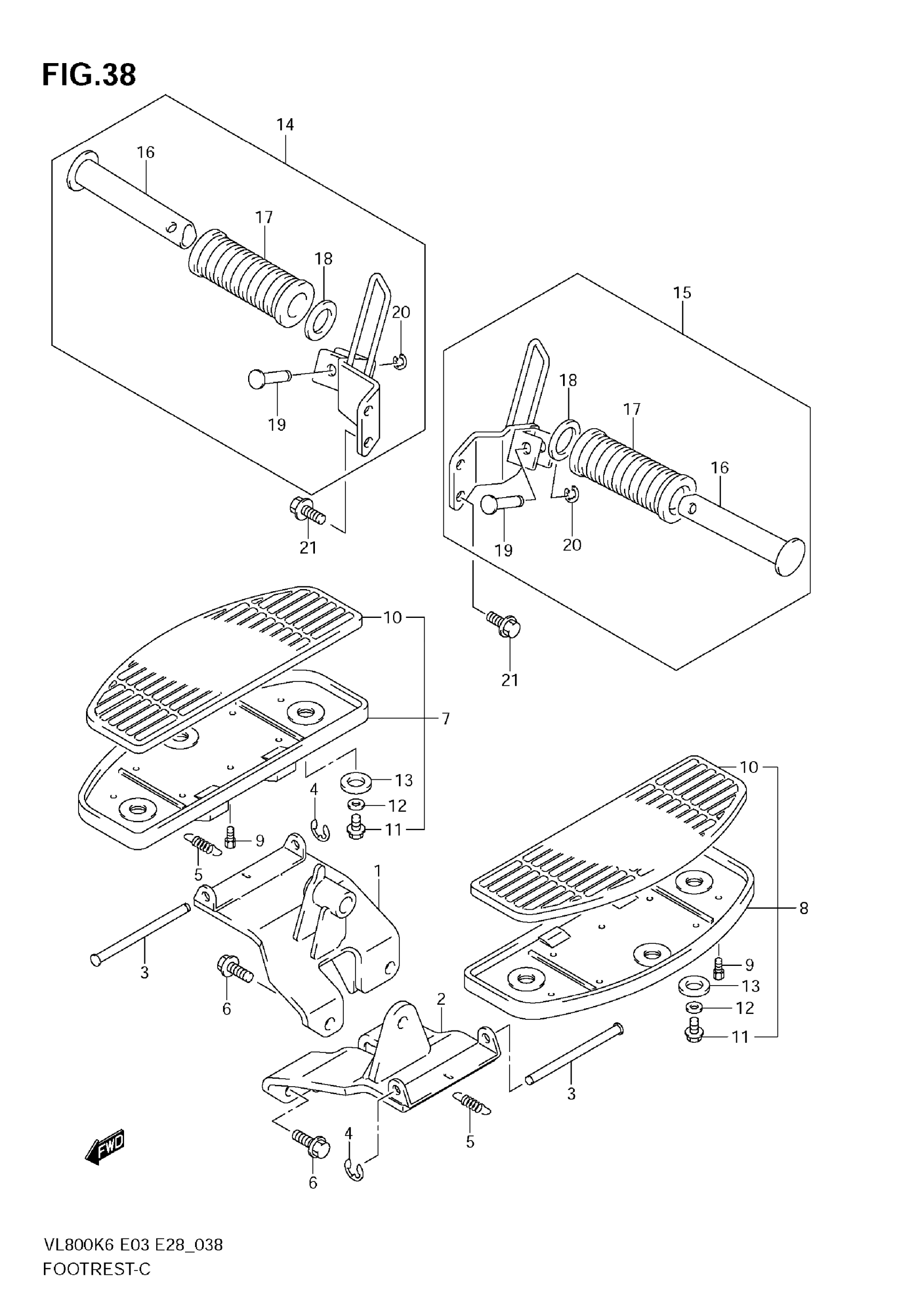

Suzuki VL800 (2009) FOOTREST (MODEL K6/K7/K8) Diagram

#

Description
Price

1

BRACKET, FRONT FOOTREST RH | MODEL K6 This part replaces 43510-41F10.

43510-41F20

$139.75

1

BRACKET, FRONT FOOTREST RH | MODEL K7/K8

43510-41F20

$139.75

2

BRACKET, FRONT FOOTREST LH | MODEL K6 This part replaces 43520-41F10.

43520-41F30

$100.02

2

BRACKET, FRONT FOOTREST LH | MODEL K7/K8 This part replaces 43520-41F20.

43520-41F30

$100.02

3

PIN,FRONT FOOTREST

43539-10F00

$8.13

4

E-RING

08332-1106B

$2.00

5

SPRING

09443-11033

$4.50

6

BOLT

01580-1030B

$5.18

7

FOOTREST ASSY,F This part replaces 43501-41F10.

43501-41F11

$223.40

8

FOOTREST ASSY,F | Includes Item(s) 9 - 13 This part replaces 43502-41F10.

43502-41F11

$210.75

9

.BOLT,BANK SENSOR

43576-07D01

$8.85

10

RUBBER, FRONT FOOTREST

43550-41F10

Unavailable

11

BOLT

01550-0610B

$2.42

12

WASHER This part replaces 09160-06503.

09160-06054

$1.62

13

.CUSHION This part replaces 09320-10036.

09320-10077

$2.23

14

FOOTREST ASSY, PILLION RH

43600-39G00

Unavailable

15

FOOTREST ASSY, PILLION LH | Includes Item(s) 16 - 20

43700-39G00

Unavailable

16

BAR

43610-39G00

$22.52

17

RUBBER

43612-39G00

$10.02

18

WASHER

09160-19024

$2.65

19

PIN

43636-25D00

$10.65

20

E-RING

08332-1104B

$1.78

21

BOLT, BRACKET

09103-08412

$3.03
