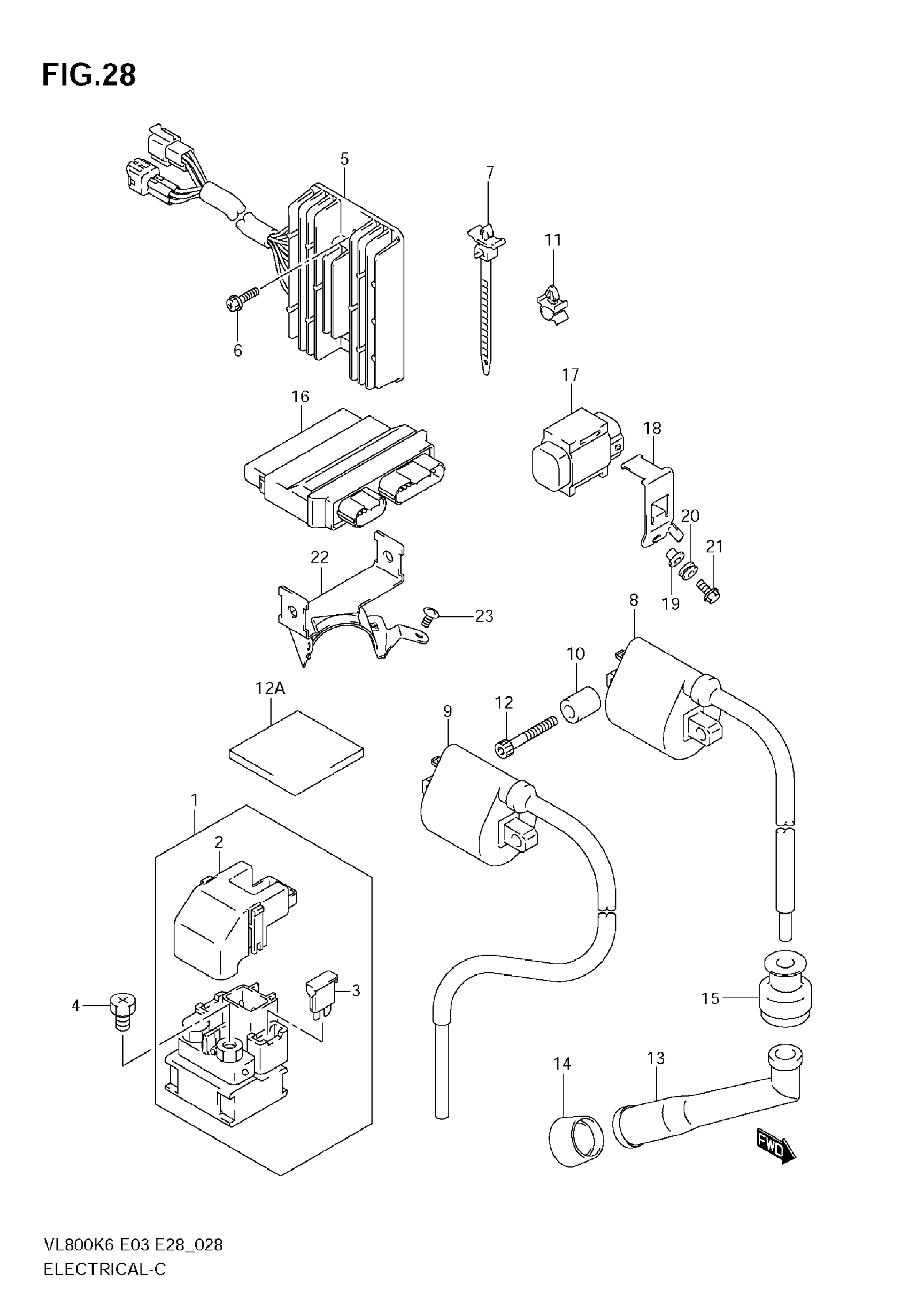

Suzuki VL800 (2009) ELECTRICAL (MODEL K6/K7/K8) Diagram

RELAY ASSY,STARTING MOTOR | Includes Item(s) 2 - 3 This part replaces 31800-21E20.

31800-21E30

$67.32

COVER, RELAY ASSY

31861-47E00

$16.15

FUSE (30A)

09481-30101

$2.26

BOLT (6X8)

09128-06013

$1.49

RECTIFIER ASSY This part replaces 32800-41F11.

32800-47H00

$263.17

BOLT

02162-0620B

$2.28

CLAMP (L:90)

09407-11402

$1.80

COIL ASSY, IGNITION This part replaces 33410-17G00.

33410-17G01

$72.92

COIL ASSY,IGNITION This part replaces 33420-41F10.

33420-41F11

$86.43

SPACER (6.4X10X18)

09180-06195

$3.68

CLAMP

09403-07308

$2.07

BOLT, IGNITION COIL

07130-0635B

$3.37

CUSHION (58X58X10)

33442-41F00

Unavailable

CAP, SPARK PLUG

33510-11410

$25.95

SEAL, SPARK PLUG

33541-47D00

$7.83

SEAL,HIGH TENSION CORD (SIDE)

33542-38B00

$4.34

CONTROL UNIT, FI

32920-41F40

Unavailable

SENSOR ASSY,FUEL CUT

33960-06G10

$89.92

BRACKET, FUEL CUT

33961-41F00

Unavailable

SPACER, FUEL CUT

09180-06325

$3.79

CUSHION (8X18X5.8) This part replaces 09320-06017.

09320-08516

$2.45

BOLT

01550-0616B

$2.48

BRACKET, FI UNIT | E3,E28

44880-41F10

Unavailable

BOLT, FI UNIT (6X12) | E3,E28

09139-06108

Unavailable
