BACKREST, MOUNTS, SADDLEBAGS C50T

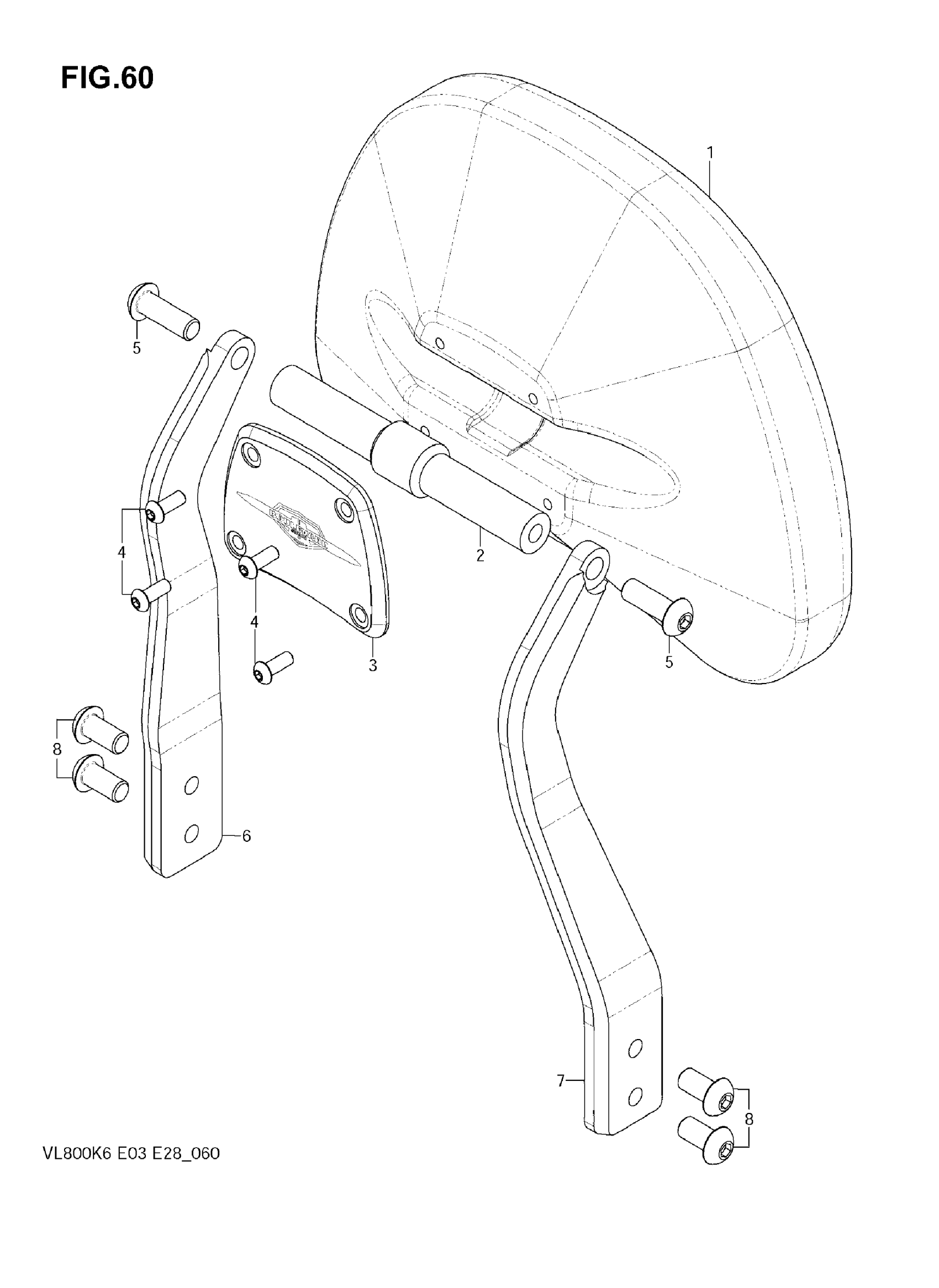

Suzuki VL800 (2009) BACKREST, MOUNTS, SADDLEBAGS C50T Diagram
#
Description
Price
BACKREST ASSY | K6-K8 This part replaces 990A0-75039-TRG.
990A0-75059-TRG
Unavailable
BACKREST ASSY | K9; Includes Item(s) 1 - 8
990A0-77059-TRG
Unavailable
1
PAD ASSY
990A0-75039-001
Unavailable
1A
PAD COVER | K6-K8 NOT SHOWN
990A0-75039-008
Unavailable
1A
PAD COVER | K9 NOT SHOWN
990A0-75059-001
Unavailable
2
CROSSBAR
990A0-75039-002
Unavailable
3
BACK PLATE
990A0-75039-003
Unavailable
6
UPRIGHT, LH
990A0-75039-006
Unavailable
7
UPRIGHT, RH
990A0-75039-007
Unavailable
8
SCREW, M10x1.5x20
990A0-75012-001
Unavailable
9
BACKREST MOUNT PLATE, LH | K6-K8 NOT SHOWN
990A0-75010-001
Unavailable
10
BACKREST MOUNT PLATE, RH | K6-K8 NOT SHOWN
990A0-75010-002
Unavailable
10A
BACKREST MOUNT PLATE, LH | K9 NOT SHOWN
990A0-75072-001
Unavailable
10A
BACKREST MOUNT PLATE, RH | K9 NOT SHOWN
990A0-75072-002
Unavailable
11
SPACER, 19ODx8.5IDx6.5T | K6-K8 NOT SHOWN
990A0-75010-003
Unavailable
11B
BOLT KIT, BACKREST | K9 NOT SHOWN
990A0-75071-003
Unavailable
12
SADDLEBAG SUPPORT, LH | K6-K8 NOT SHOWN
990A0-75009-001
Unavailable
13
SADDLEBAG SUPPORT, RH | K6-K8 NOT SHOWN
990A0-75009-002
Unavailable
13A
SADDLEBAG SUPPORT, LH | K9 NOT SHOWN
990A0-75071-001
Unavailable
13A
SADDLEBAG SUPPORT, RH | K9 NOT SHOWN
990A0-75071-002
Unavailable
13B
SPACER KIT, 2x19MM | K9 NOT SHOWN
990A0-75071-005
Unavailable
14
SADDLEBAG ASSY, LH | K6-K8 NOT SHOWN
990A0-77019-001
Unavailable
15
SADDLEBAG ASSY, RH | K6-K8 NOT SHOWN
990A0-77019-002
Unavailable
15A
SADDLEBAG ASSEMBLIES | K9 NOT SHOWN
990A0-77043-TRG
Unavailable
