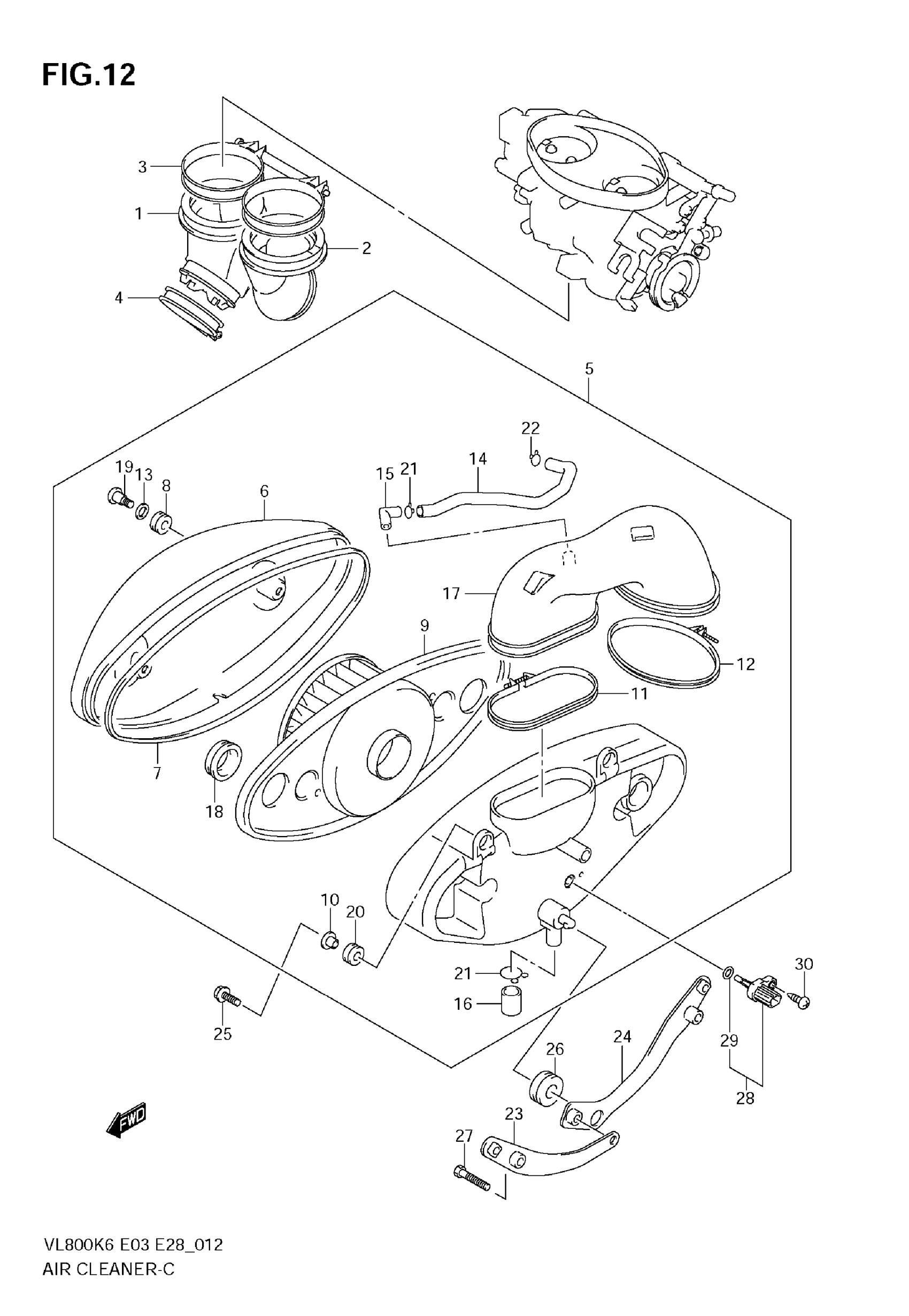

Suzuki VL800 (2009) AIR CLEANER (MODEL K6/K7/K8) Diagram

#

Description
Price

1

PIPE,INTAKE NO. This part replaces 13111-41F00.

13111-41F01

$20.76

2

PIPE,INTAKE NO. This part replaces 13121-41F00.

13121-41F01

$19.38

3

CLAMP, INTAKE PIPE

13170-41F00

$33.03

4

CLAMP, INTAKE PIPE HEAD

13170-15G00

$7.25

5

CLEANER ASSY,AI | Includes Item(s) 6 - 22 This part replaces 13700-41F20.

13700-41F21

$451.33

6

CAP, AIR CLEANER

13741-41F00

$287.45

7

GASKET

13746-41F00

$15.77

8

CUSHION

13747-41F00

$2.93

9

FILTER ASSY

13780-41F20

$45.54

10

COLLAR, CLEANER CASE

13812-29C50

$3.05

11

CLAMP

13826-41F00

$22.03

12

CLAMP

13826-41F11

$33.12

13

WASHER

13833-41F00

$2.92

14

TUBE,BREATHER This part replaces 13853-41F10.

13853-41F11

Unavailable

15

JOINT, BREATHER TUBE

13858-14D20

$6.80

16

.PLUG

13859-41B10

$6.94

17

TUBE,OUTLET This part replaces 13881-41F10.

13881-41F11

Unavailable

18

TUBE, INLET

13891-41F20

$5.05

19

SCREW This part replaces 09139-06087.

09139-06126

$3.65

20

CUSHION

09320-09016

$1.97

21

CLIP

09401-14301

$2.17

22

CLIP

09401-16301

Unavailable

23

BRACKET, AIR CLNR

13760-41F00

$18.78

24

BRACKET, AIR CLNR

13770-41F00

Unavailable

25

BOLT, AIR CLEANER

09139-06063

$4.35

26

CUSHION, AIR CLNR

09320-08018

$2.80

27

BOLT, AIR CLNR BRACKET

01500-0625B

$2.45

28

SENSOR, AIR TEMP | Includes Item(s) 29

13650-41F10

$71.40

29

O-RING

13655-41F10

Unavailable

30

SCREW

03511-0516B

$2.29
