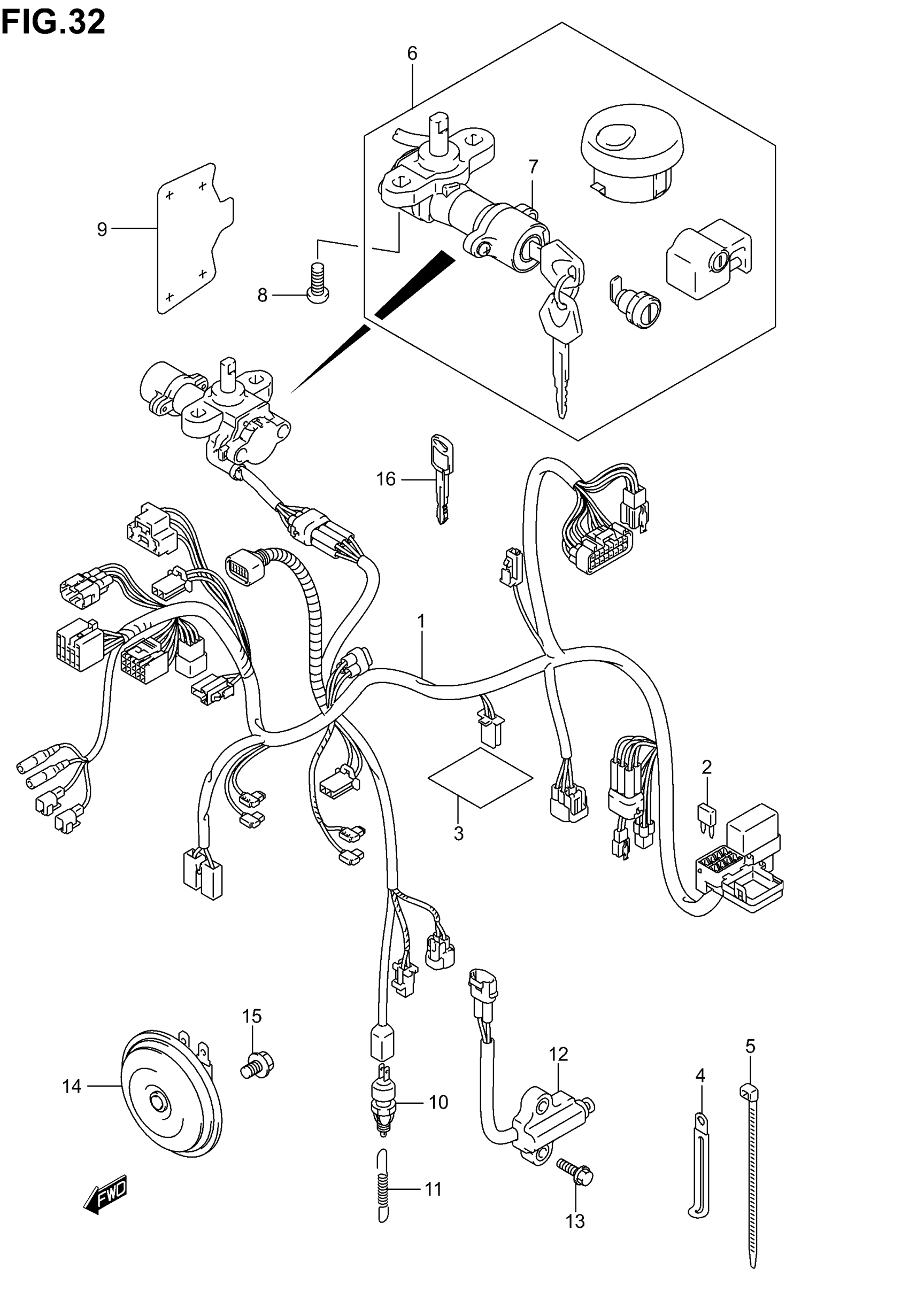

Suzuki VL800 (2005) WIRING HARNESS (MODEL K1/K2) Diagram

#

Description
Price

1

HARNESS, WIRING | Includes Item(s) 2 - 2

36610-41F10

Unavailable

2

FUSE (10A)

09481-10501

$2.06

2

FUSE (15A)

09481-15501

$2.02

3

PROTECTOR, WIRING HARNESS

36611-41F00

Unavailable

4

CLAMP(L:80) This part replaces 09404-06434.

09404-06036

$1.74

5

CLAMP (L:90)

09407-11402

$1.80

5

CLAMP (L:125)

09407-14403

$2.26

5

CLAMP (L:165)

09407-18402

$2.19

5

CLAMP (L:235)

09407-25401

$4.66

6

LOCK SET This part replaces 37000-41820.

37000-41821

$416.95

6

LOCK SET | E33; Includes Item(s) 7

37000-41830

Unavailable

7

LOCK ASSY,STEER This part replaces 37100-41F10.

37100-41F11

$180.43

8

SCREW, STEERING LOCK

09139-08016

$3.37

9

PROTECTOR, IGNITION SWITCH This part replaces 37187-41F00.

37187-41F10

$12.17

10

SWITCH ASSY, STOP LAMP

37740-24A00

$18.20

11

SPRING, STOP LAMP

09443-06073

$3.42

12

SWITCH ASSY,SIDE STAND This part replaces 37840-41F00.

37840-41F02

$60.37

13

BOLT This part replaces 01550-06203.

01550-0620A

$1.97

14

HORN ASSY

38500-41F00

$87.70

15

BOLT (8X12) This part replaces 01550-08123.

01550-0812A

$2.32

16

KEY, BLANK | OPT

37146-33E00

$21.21
